Specification Wind Top AE2281G

Wind Top AE2281G

OS
CPU
Graphics
Chipset
Memory
HDD
Optical Drive
Card Reader
LAN
Wireless LAN
Audio
HDMI in
HDMI out
USB 3.0 port
USB 2.0 port
Mic-in/Headphone-out
Webcam
Touch Panel
Panel Resolution
AC Adapter
Net Weight
Keyboard / Mouse
TV Tuner

Windows® 7 Home Premium 64bit (MSI recommends upgrade to Windows 8 Pro.)

Intel® Core™ i5 3450S Processor

Graphics

Intel® HD Graphics 2500 (AE2281)
NVIDIA® GeForce® GT630M 1GB/2GB DDR3 (AE2281G)

Chipset

Intel® H61

Memory

4G DDR3 1333 / DDR3 SO-DIMM * 2 slots / Max. to 8GB

3.5'' SATA 500GB 7200 RPM

Optical Drive

Tray-in DVD Super Multi

Card Reader

4 in 1 card reader (SD, mini SD, MS, MS Pro, MMC, xD)

10/100/1000 x 1

Wireless LAN

802.11 b/g/n WiFi

Audio

2 x 3W Speakers, 5.1 channel speakers with THX TRUSTUDIO PRO

HDMI in

HDMI out

USB 3.0 port

USB 2.0 port

Mic-in/Headphone-out

Mic in x1, Earphone out x1

Webcam

1.3M

Touch Panel

Panel Resolution

21.5’’ LCD Panel LED Backlight (1920*1080 ) / Multi Touch

AC Adapter

150W

Net Weight

9.3 kg

Keyboard / Mouse

USB Keyboard / Mouse

TV Tuner

Optional (USB interface)

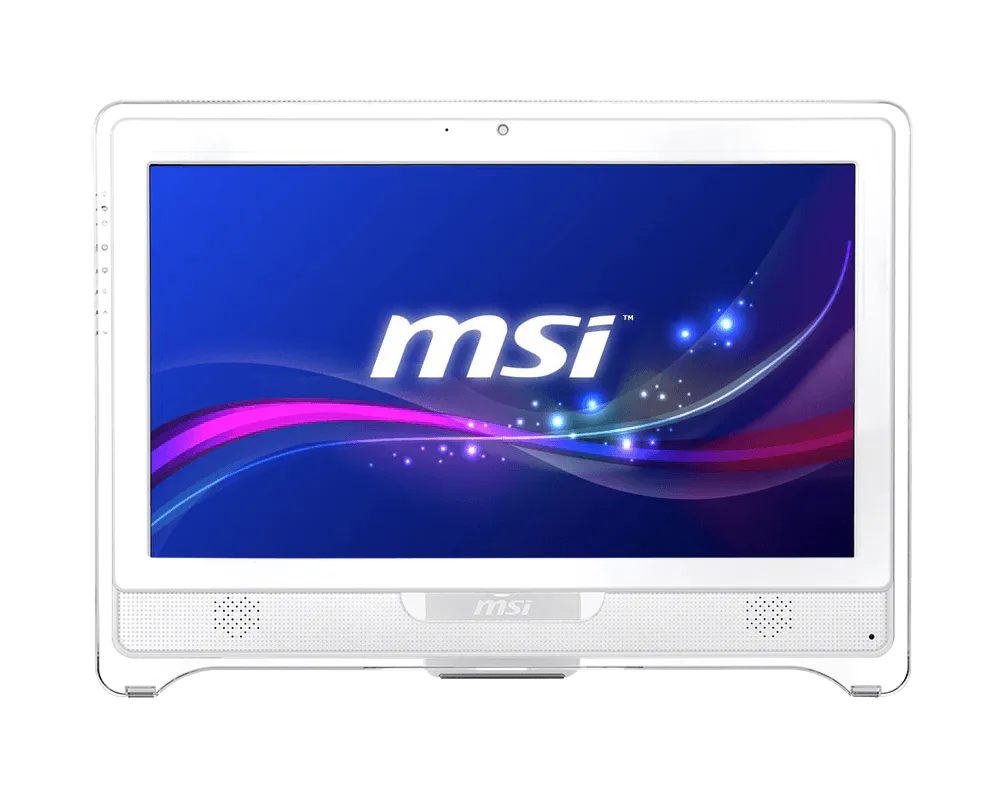

All-in-One PC, Wind Top AE2281G

Wind Top AE2281G, which sport a new ID design with integrated screen and CPU unit and help reduce clutter on your desktop. The AE2281G are equipped with Full HD panels fitted with industry-leading LED backlight technology which is about 30% more energy efficient than conventional CCFL panels.

(MSI recommends upgrade to Windows 8 Pro.)

Revolutionary 3rd-generation Intel® Core™ processors

MSI’s unique power-saving technology offers consumers substantial savings in this age of high electricity costs and truly creates environmentally friendly and green computers. The new models are also equipped with the 3rd Generation of Intel® Core™ processors, with breakthrough computing performance that makes multitasking even more efficient. These new processors effectively enhance performance with reduced power consumption, and their graphics processing units are integrated into the CPUs on the same chips, which provide higher graphics capabilities, smoother high-definition video playback, as well as greater gaming experiences.

Supports NVIDIA® Optimus™ technology

MSI has especially incorporated NVIDIA® Optimus™ technology, previously supported only on mobile computing platforms. NVIDIA® Optimus™ automatically determines the type of program the operating system is currently running (2D/3D) and allows automatic switching between the built-in graphics core of the CPU and the NVIDIA® GeForce® GT630M.

Military Class II components

The Wind Top AE2281G are equipped with highly-stable and high-quality military-grade parts and components with SFC, solid state capacitors, and Hi-c Cap, which provide excellent stability, power efficiency, and performance. These three key components have passed U.S. Military Standard MIL-STD-810G certification and provide extra protection to ensure the system’s stable operation.

Exclusive built-in Quick Fix self-maintenance software

MSI has also made substantial improvements in software by introducing the Quick Fix self-maintenance software, which helps users troubleshoot when the computer experiences a problem and determine whether it is possible for the unit to complete the repair on its own. The software also sends the results to repair technicians for reference. In addition, the software enables instantaneous driver updates and keeps the computer in perfect shape at all times.

Intelligent audio and video sharing

MSI has introduced the latest and exclusively developed Smart Media link and Smart Sync functions on the Wind Top AE2281G. Using cloud technology, users can use their tablets, laptops, TVs that support DLNA, and mobile handsets on the same Wi-Fi and LAN network to play videos and music or display photos instantaneously via Smart Media link. MSI Smart Sync allows you to synchronize Outlook contacts, calendars, as well as photos, music, documents, bookmarks and other data on your computers or mobile phones, allowing you to gain access to your personal information while creating a backup without duplicated data.

Comprehensive I/O interfaces and support for USB 3.0

The Wind Top AE2281G has a comprehensive set of I/O expansion interfaces. The MSI Super Charger allows you to charge devices without turning on the AIO PC and the USB 3.0 port provides up to 10 times the data transfer rate of the previous generation, which helps you transfer large amounts of data or multimedia files quickly and more efficiently. (Note: The MSI Super Charger must be switched to ON when it is used for the first time.)
