Specifications for

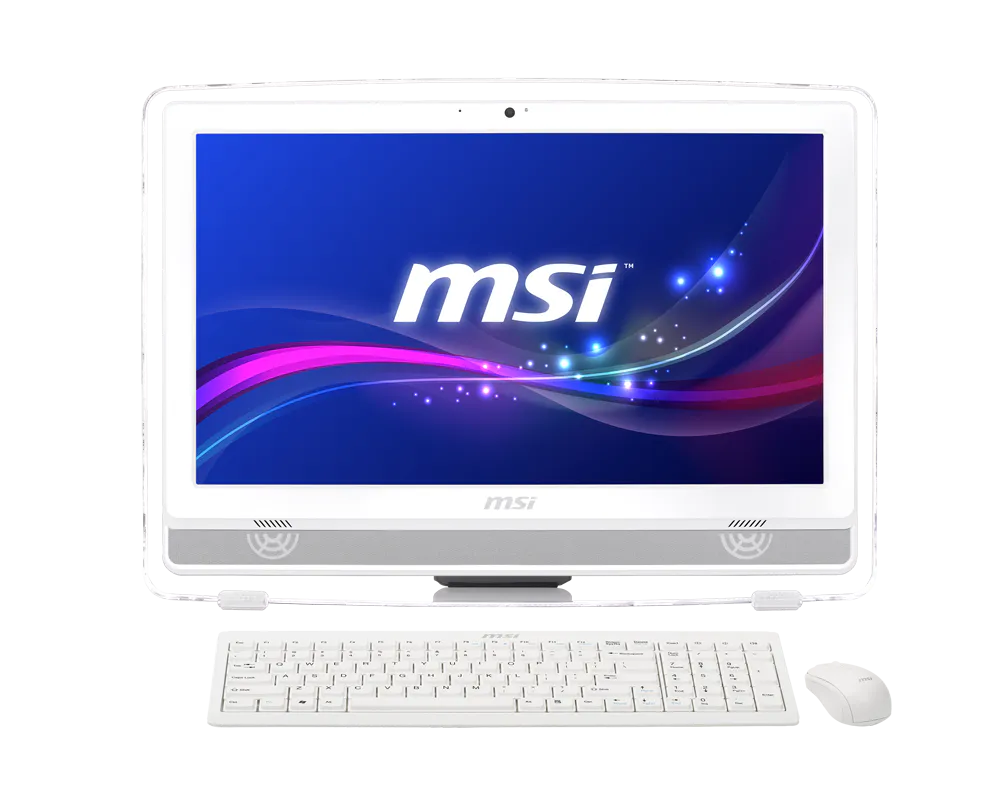

Wind Top AE2282
Marketing Name
Marketing Name
Wind Top AE2282
Webcam
Webcam
HD 1M-pixel webcam and microphone
Chipset
Chipset
Intel® H61
Graphics
Graphics
Intel® HD Graphics 2500
Memory
Memory
4GB DDR3 1333 / DDR3 SO-DIMM * 2 slots / Max. to 8GB
Expansion Slots
Expansion Slots
Mini PCI-E x 2 (1xWiFi)
Audio
Audio
2x3W speakers
OS
OS
Windows 8.1
CPU
CPU
Intel® Core™ i3-3220 Processor
HDD
HDD
3.5'' SATAII 1TB
Optical Drive
Optical Drive
Tray-in DVD Super Multi
Card Reader
Card Reader
3 in 1 Card Reader (SD, MS, MMC)
LAN
LAN
10/100/1000 x 1
Wireless LAN
Wireless LAN
802.11 b/g/n WiFi
Bluetooth
Bluetooth
Optional (4.0)
HDMI in
HDMI in
1
HDMI out
HDMI out
1
USB 3.0 port
USB 3.0 port
2
USB 2.0 port
USB 2.0 port
4
Mic-in/Headphone-out
Mic-in/Headphone-out
1 /1
Panel Resolution
Panel Resolution
21.5” LCD Panel LED Backlight (1920*1080 )
AC Adapter
AC Adapter
90W
AIO Wall Mount Kit III
AIO Wall Mount Kit III
Y (Option)
Net Weight
Net Weight
9.71 kg
Gross Weight
Gross Weight
11.21 kg
AIO Wall Mount Kit II
AIO Wall Mount Kit II
Y (Option)
Keyboard / Mouse
Keyboard / Mouse
Wireless Keyboard / Mouse
TV Tuner
TV Tuner
Optional (DVB-T)
