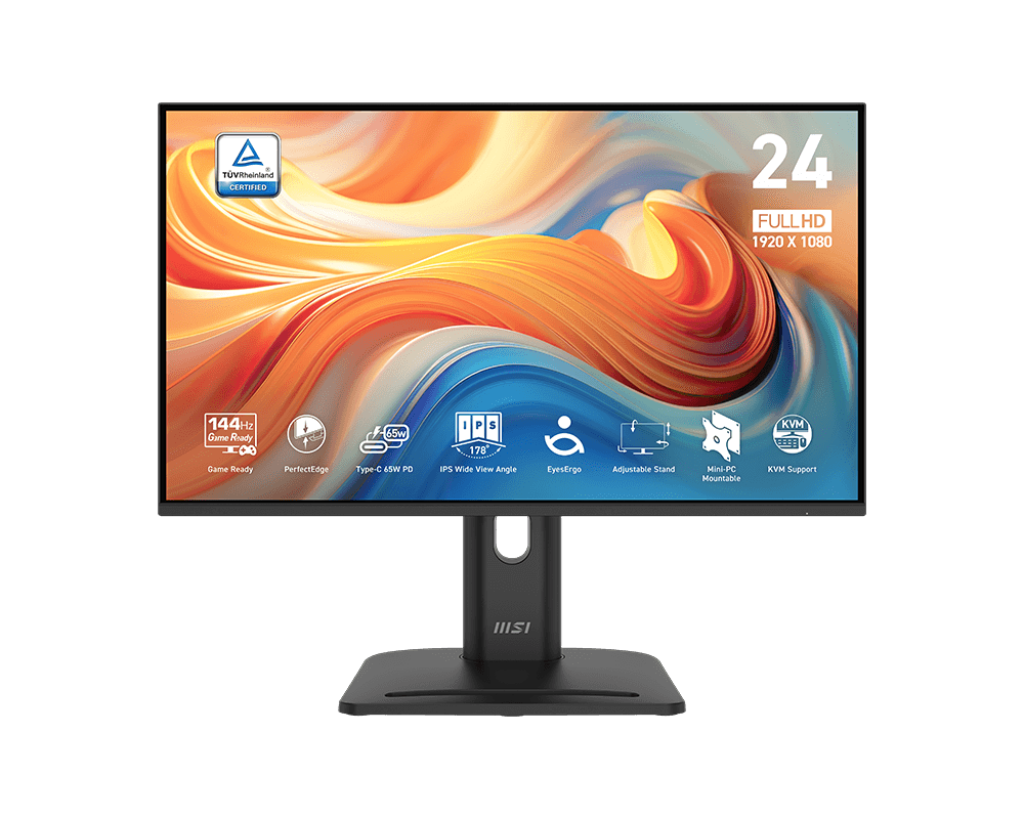

PRO MP245PHG E14

PANEL SIZE
PANEL RESOLUTION
REFRESH RATE
RESPONSE TIME
PANEL TYPE
BRIGHTNESS (NITS)
VIEWING ANGLE
ASPECT RATIO
CURVATURE
CONTRAST RATIO
DCR
Signal Frequency
ADOBE RGB / DCI-P3 / SRGB
ACTIVE DISPLAY AREA (MM)
PIXEL PITCH (H X V)
SURFACE TREATMENT
DISPLAY COLORS
HDR SUPPORT
VIDEO PORTS
USB Ports
AUDIO PORTS
KENSINGTON LOCK
SPEAKER
VESA MOUNTING
POWER TYPE
POWER INPUT
DYNAMIC REFRESH RATE TECHNOLOGY
Activated Range
ADJUSTMENT (TILT)
ADJUSTMENT (SWIVEL)
ADJUSTMENT (PIVOT)
ADJUSTMENT (HEIGHT)
Dimension with Stand (W x D x H)
Dimension without Stand (W x D x H)
CARTON DIMENSION (W X D X H)
WEIGHT (NW / GW)
CERTIFICATES
VIDEO INPUT COMPATIBILITY
ACCESSORIES
Note

PANEL SIZE

23.8"

PANEL RESOLUTION

1920 x 1080 (FHD)

REFRESH RATE

144Hz

RESPONSE TIME

1ms (MPRT) / 4ms (GTG)

PANEL TYPE

IPS

BRIGHTNESS (NITS)

300 cd/m2

VIEWING ANGLE

178°(H) / 178°(V)

ASPECT RATIO

16:9

CURVATURE

Flat

CONTRAST RATIO

1500:1

100000000:1

Signal Frequency

52.85~158.54 KHz(H) / 48~144 Hz(V)

ADOBE RGB / DCI-P3 / SRGB

84% / 82% / 106% (CIE 1976)

ACTIVE DISPLAY AREA (MM)

527.04(H) x 296.46(V)

PIXEL PITCH (H X V)

0.2745(H) x 0.2745(V)

SURFACE TREATMENT

Anti-glare

DISPLAY COLORS

16.7M, 8 bits (6 bits + FRC)

HDR SUPPORT

HDR Ready

VIDEO PORTS

1x HDMI™ 2.0 (FHD@144Hz)
1x DisplayPort 1.2a
1x Type-C (DP alt.) w/ 65W PD

USB Ports

2x USB 5Gbps Type-A
1x USB 5Gbps Type-B

AUDIO PORTS

1x Headphone-out

KENSINGTON LOCK

Yes

SPEAKER

2W x2

VESA MOUNTING

100 x 100 mm

POWER TYPE

Internal Power Board

POWER INPUT

100~240V, 50/60Hz

DYNAMIC REFRESH RATE TECHNOLOGY

AMD FreeSync™

Activated Range

48~144Hz

ADJUSTMENT (TILT)

-5° ~ 20°

ADJUSTMENT (SWIVEL)

-45°~45°

ADJUSTMENT (PIVOT)

-90°~90°

ADJUSTMENT (HEIGHT)

0~130 mm

Dimension with Stand (W x D x H)

539.36 x 226.93 x 519.29 mm
(21.23 x 8.93 x 20.44 inch)

Dimension without Stand (W x D x H)

539.36 x 51.71 x 314.67 mm
(21.23 x 2.04 x 12.39 inch)

CARTON DIMENSION (W X D X H)

590 x 115 x 480 mm
(23.23 x 4.53 x 18.90 inch)

WEIGHT (NW / GW)

5.55 kg (12.24 lbs) / 7.81 kg (17.22 lbs)

CERTIFICATES

CB/CE
Energy Star

VIDEO INPUT COMPATIBILITY

PC, Mac, PS5™, PS4™, Xbox, Mobile, Notebook
All trademarks and the registered trademarks are the property of their respective owners.

ACCESSORIES

1x HDMI™ Cable (1.4), 1x Type-C USB 3.2 Gen 1 Cable, 1x USB 3.2 Gen 1 Type-B to Type-A Cable, 1x Quick Guide, 4x Stand Screw, 1x VESA Plate, 4x VESA Plate Screw, 1x Power Cord (C13)

Note

HDMI™: 1920 x 1080 (Up to 144Hz)
DisplayPort: 1920 x 1080 (Up to 144Hz)
Type-C: 1920 x 1080 (Up to 144Hz)
Support: HDMI™ CEC/ MSI Power Link, KVM 1.0, FW Update ; Non Support: PIP/PBP
