Specification Nightblade MI3 8th

TOP

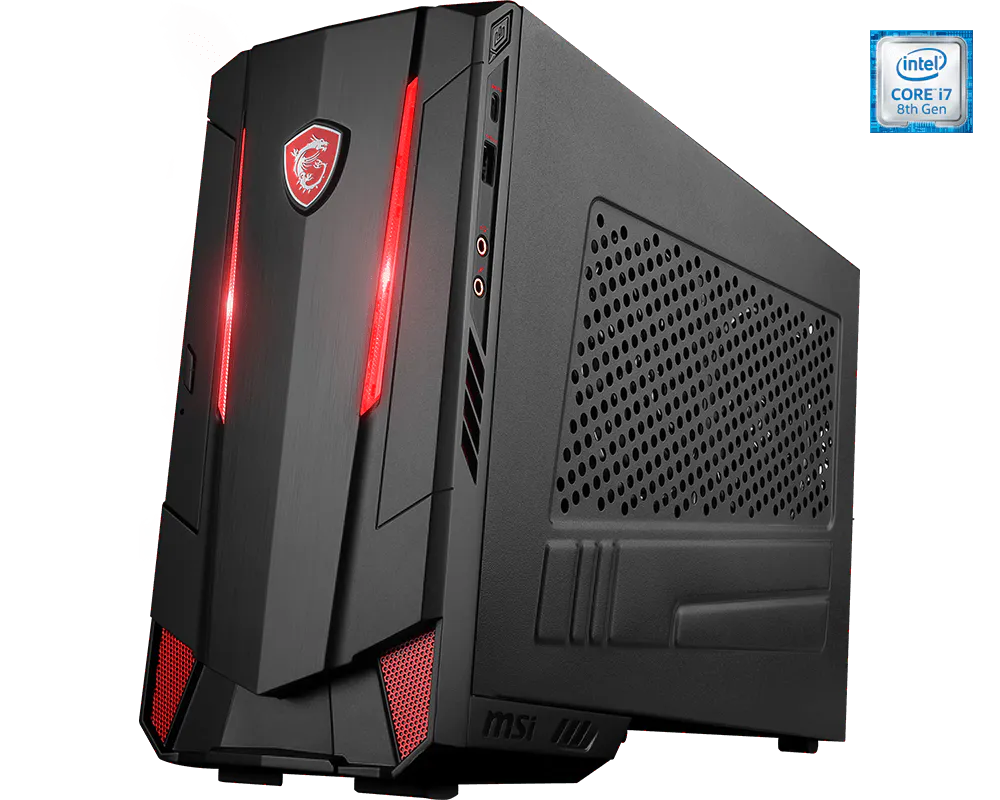

Nightblade MI3 8th

Operating System
CPU
Chipset
Storage
System Memory
VGA
Sound
Optical Drive
I/O (Front)
I/O (Rear)
Wireless LAN
Bluetooth
LAN
AC Adapter / PSU
Cooling System
Volume
Dimension (WxDxH)
WEIGHT (N.W./ G.W.)
Accessories
Software

Operating System

Windows 10 Home

Up to Intel® Core™ i7-8700 Processor

Chipset

Intel® H310

Storage

1 x M.2 SSD (1x Auto Switch)
1 x 2.5" HDD
1 x 3.5" HDD

System Memory

2 x SO-DIMMs DDR4 Max. 32GB

Up to MSI GeForce® GTX 1070 8GB GDDR5

Sound

7.1 Channel HD Audio with Nahimic audio enhancer

Optical Drive

Slim Type(9.5mm) Tray-Load Super Multi (Optional)

I/O (Front)

1 x USB 3.1 Gen 1 Type C
1 x USB 2.0 (with Super Charger 2)
1 x Headphone out
1 x Mic in

I/O (Rear)

2 x USB 3.1 Gen 1 Type A
4 x USB 2.0
1 x HDMI out
5 x OFC Audio jacks 1 x S/PDIF
1 x RJ45 LAN

Wireless LAN

Intel® Dual Band Wireless-AC 9461 (M.2 2230)

Bluetooth

GigaBit LAN (Intel® WGI219V)

AC Adapter / PSU

350W/ 450W 80 Plus Bronze (1U)

Cooling System

Fan Cooler

Volume

10L/ 21.13pt

Dimension (WxDxH)

128 x 342 x 268 mm/ 5.04” x 13.46” x 10.55”

WEIGHT (N.W./ G.W.)

6.4 kg/ 7.4kg;
14.11lbs/ 16.4lbs

Accessories

1 x Manual (Optional)
1 x Quick guide
1 x Warranty card
1 x Power cord

Software

Drivers & MSI Utilities (Optional)
MSI Gaming center
Anti-Virus (60 days trial)

‘Boost Clock Frequency’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
‘Game Frequency’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
