Specification StarMouse GS-503

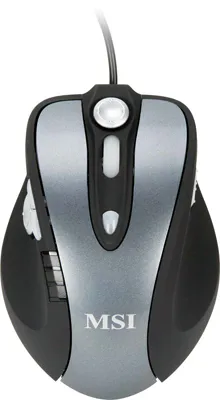

StarMouse GS-503

INTERFACE
Color
Resolution(DPI)
Buttons
Top speed (inch/sec)
Maximum
USB ultra-data(bits/axis)
USB report rate(sec.)
Frame rate(sec.)
Switch Cycle
Gear Function
PRESET SWITCHABLE DPI
WEIGHT (PRODUCT / PACKAGE)

INTERFACE

wired

Color

Silver Blue

Resolution(DPI)

2000

Buttons

Top speed (inch/sec)

Maximum

20g of acceleration

USB ultra-data(bits/axis)

USB report rate(sec.)

500

Frame rate(sec.)

7080

Switch Cycle

5,000,000 click

Gear Function

PRESET SWITCHABLE DPI

400/800/1600/2000

WEIGHT (PRODUCT / PACKAGE)

152

Features

• Powered by 2000 dpi high-resolution laser engine
• 6DOF Gear for intuitive multi-dimension control and gaming
• 16 Programmable Hotkeys for you customization preference
• On-The-Fly DPI Switching and sensitivity adjustment (400/800/1600/2000 dpi)
• Suitable for Role-Playing Game, Real-Time Strategy, Google Earth, Google SketchUpGS-503

Gear
GS-503 features three Mini Gears on three sides of mouse, each enables 4-Way customized direction control.

2000 DPI Laser Engine
Ultra-high resolution laser engine provides users ultimate precision and accurate movement tracking, suitable for RTS/FPS gamers and professional application users who need absolute accuracy.

Navigate the 3D earth map in one hand
Tired of using keyboard and mouse to control 3D applications such as Google Earth or software? Now you need only one hand to control! By using GS-503 3D mouse, you can easily tilt any angle, rotate any view, zoom in/out in only one hand, without pressing CTRL or ALT keys and move your mouse.

6DOF Gear Application ( 6 degree of freedom )
Combine three fully customized 4-way gears for all-directions controls, suitable for gaming and other 3D application such as Google Earth, MSN Virtual Earth, 3D CAD. You don't have to use any keys on the keyboard combined with mouse movement, only push 6D Gear and feel the total freedom of control.

Overview

Specifications

Button	6
Resolution	2000 dpi
DPI switch	400/800/1600/2000 dpi
Top speed	Up to 45 inch per second
Maximum	20g of acceleration
3G Gear function	Yes
USB ultra-data	16 bits/axis
USB report rate	500/sec
Frame rate	7080/sec
Color	Silver Blue
Dimension (mm)	L125.7 x W90 x H44
Weight	152g

System Requirements

• Windows® Vista/ XP(SP2)/2000(SP4)
• USB 2.0 port

Package contents

• StarMouse GS-503
• Quick guide
• User manual
• Driver disc
