AMD EPYC 4005
Server Motherboards

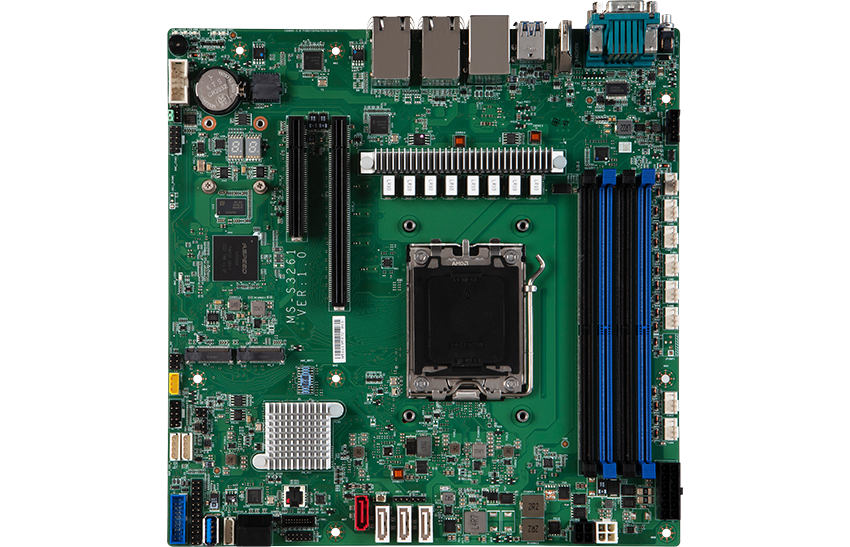

D3050
- Single AMD EPYC™ 4004/4005 Series Processor
- (4) DDR5 DIMM slots, 2DPC, up to 5600MT/s
- (4) GbE RJ45 ports (Intel® I210AT)
- (4) SATA3.0 ports and (2) SATA2.0 ports
- (2) M.2 2280/22110 PCIe4.0 x2/x2 or x4/x0
- (1) PCIe 5.0 x16 slot from CPU
- (1) PCIe 5.0 x8 slot (x4 signal) from CPU
- Supports ATX PSU and 12V DC IN

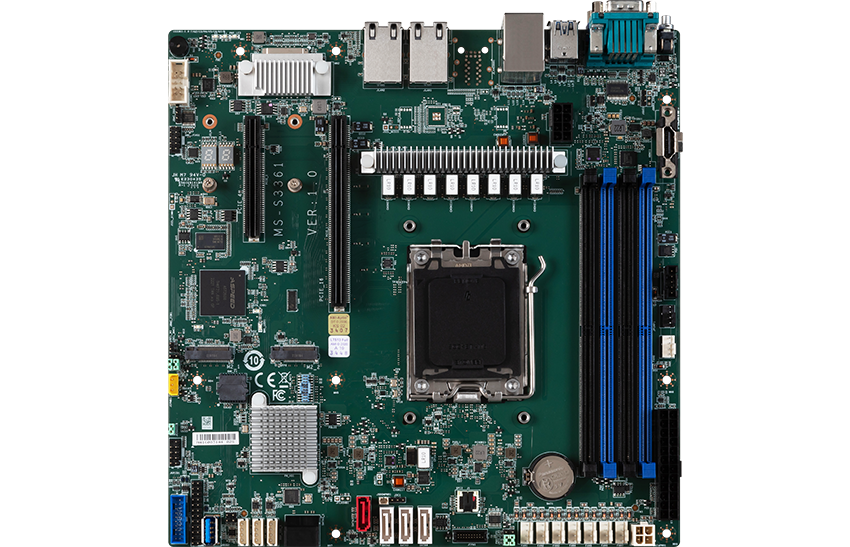

D3051
- Single AMD EPYC™ 4004/4005 Series Processor
- (4) DDR5 DIMM slots, 2DPC, up to 5600MT/s
- Max (2) 10G Base-T and (2) 1000Base-T Ethernet Ports
- (4) SATA3.0 ports and (2) SATA2.0 ports
- (2) M.2 2280/22110 PCIe4.0 x4
- (1) PCIe 5.0 x16 slot from CPU
- (1) PCIe 4.0 x8 slot (x4 signal) from CPU(shares link with M2_1)
- Supports ATX PSU

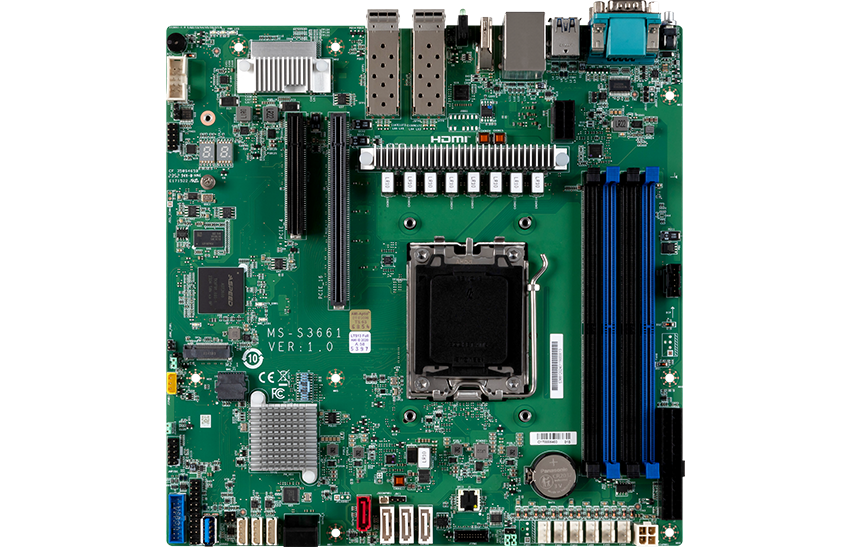

D3052
- Single AMD EPYC™ 4004/4005 Series Processor
- (4) DDR5 DIMM slots, 2DPC, up to 5600MT/s
- (2) 25G SFP28 Ports
- (4) SATA3.0 ports and (2) SATA2.0 ports
- (1) M.2 2280/22110 PCIe4.0 x4
- (1) PCIe 5.0 x16 slot from CPU
- (1) PCIe 5.0 x8 slot (x4 signal) from CPU
- Supports ATX PSU
Server Barebones

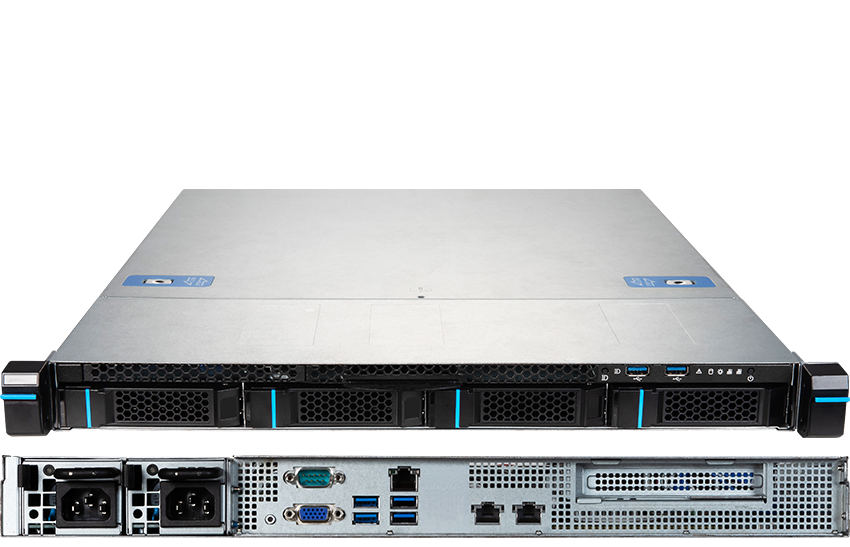

S1102-01
- Single AMD EPYC™ 4004/4005 Series Processor TDP up to 105W With Vapor Chamber air cooling module
- (4) DDR5 DIMM, 2DPC, up to 5600MT/s
- (2) 10GBase-T Ethernet Ports
- (1) PCIe 4.0 x16 FHHL slot
- (6) SATA Drive Bays
- (2) M.2 2280/22110 PCIe4.0 x4 ports
- (1+1) 450W Redundant PSU 80+ Platinum

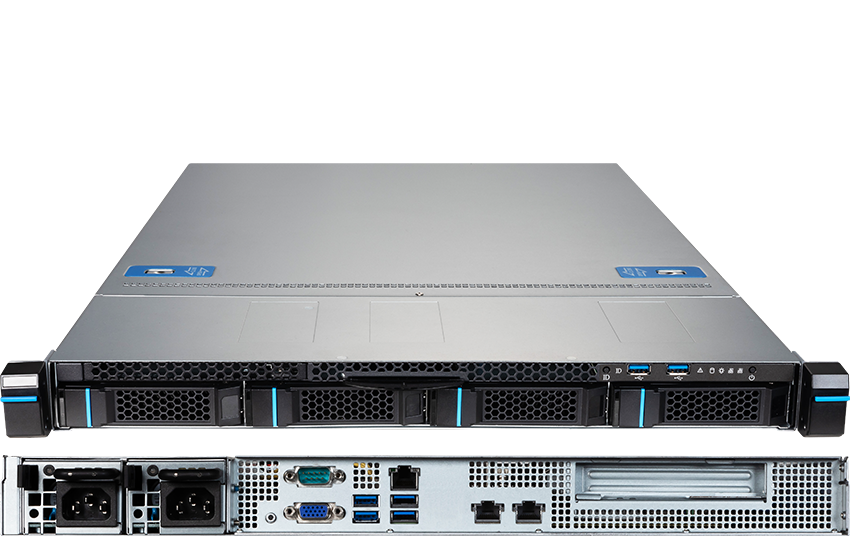

S1102-02
- Single AMD EPYC™ 4004/4005 Series Processor TDP up to 170W With Closed Loop Liquid cooling module
- (4) DDR5 DIMM, 2DPC, up to 5600MT/s
- (2) 10GBase-T Ethernet Ports
- (1) PCIe 4.0 x16 FHHL slot
- (6) SATA Drive Bays
- (2) 2280/22110 PCIe4.0 x4 M.2 ports
- (1+1) 600W Redundant PSU 80+ Platinum
Applications
Small and Medium Business IT Infrastructure
Enterprise and office IT Infrastructure
Cloud Storage and Cloud Services
