Intel Xeon 6

Learn More Contact Us

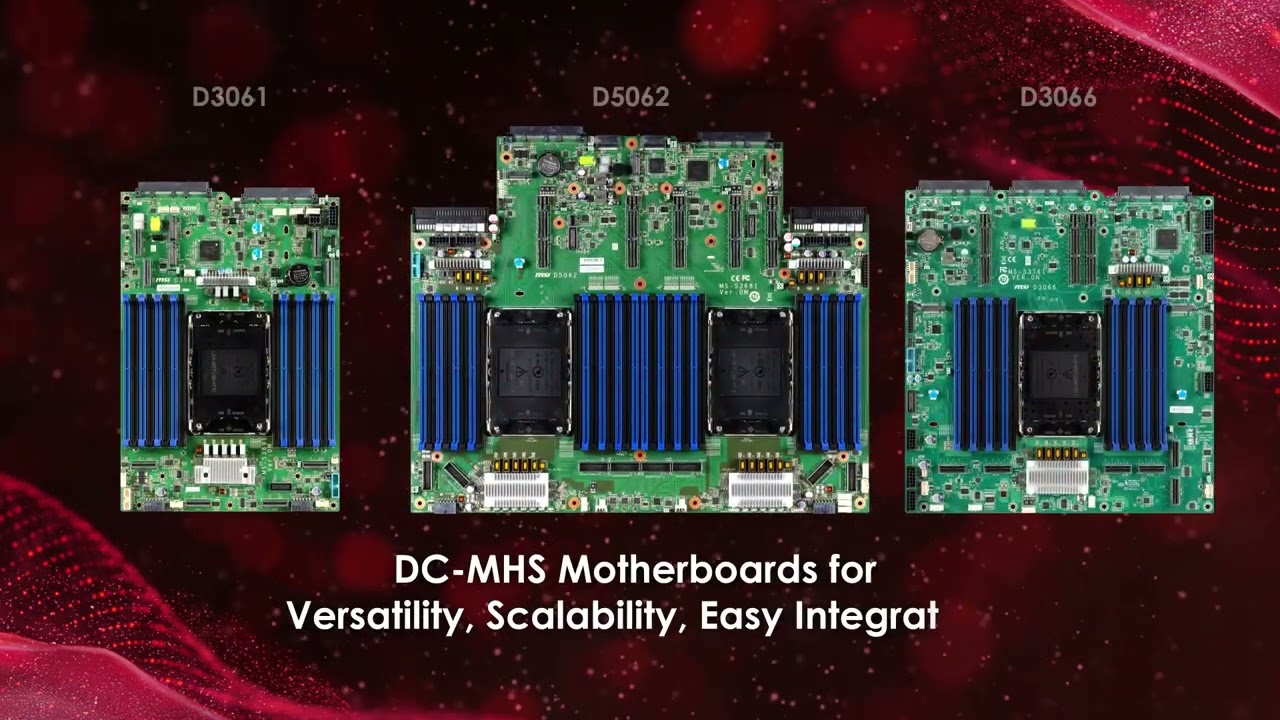

Server Motherboards

D5062

DC-MHS M-FLW HPM
Dimensions : 423mm x 348mm
Dual Intel® Xeon® 6 processors, TDP up to 350W
(32) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slots
(2) M.2 2280/22110 PCIe 5.0 x2 ports
(8) PCIe 5.0 x 8 MCIO 8i
(5) PCIe 5.0 x 16 MXIO(SFF-TA-1033)
(2) E1.S PCIe5.0 x4 ports
Support DC-SCM2 with AST2600 BMC

Learn More Get Pricing

D3061

DC-MHS M-DNO Type-2 HPM
Dimensions: 305.59mm x 210mm
Single Intel® Xeon® 6 processor, TDP up to 350W
(16) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slots
(2) M.2 2280/22110 PCIe 5.0x2 ports
(8) PCIe5.0 x8 MCIO 8i
Support DC-SCM2 Server Management Module with AST2600 BMC (MSI MGT1)

Learn More Get Pricing

D3066

DC-MHS M-DNO Type-4 HPM
Dimensions: 305.95mm x 295mm
Single Intel® Xeon® 6 processor, TDP up to 350W
(16) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(2) PCIe 5.0 x16 OCP 3.0 NIC slots
(2) M.2 2280/22110 PCIe 5.0 x2 ports
(6) PCIe 5.0 x 8 MCIO 8i
(3) PCIe 5.0 x 16 MXIO(SFF-TA-1033)
Support DC-SCM2 Server Management Module with AST2600 BMC (MSI MGT1)

Learn More Get Pricing

D3071

DC-MHS M-DNO Type-2 HPM
Dimensions: 305.59mm x 210mm
Single Intel® Xeon® 6 processors, TDP up to 500W
(12) DDR5 DIMM slots, 12 channels per CPU (1DPC), up to 6400MT/s RDIMM and 8800MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slots
(2) M.2 2280/22110 PCIe 5.0x2 ports
(9) PCIe5.0 x8 MCIO 8i
Support DC-SCM2 Server Management Module with AST2600 BMC (MSI MGT1)

Learn More Get Pricing

Server Barebones

CX170-S5062

1U Enterprise Server, DC-MHS architecture
Dual Intel® Xeon® 6 processors, TDP up to 350W(Air cooled)
(32) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slot
(2) M.2 2280/22110 PCIe 5.0 x2 ports
(2) Rear E1.S 9.5mm PCIe 5.0 x4 ports
(2) PCIe 5.0 x16 FHHL single-wide slots
(12) 2.5" PCIe 5.0x4 U.2 NVMe

Learn More Get Pricing

CX270-S5062

2U Enterprise Server, DC-MHS architecture
Dual Intel® Xeon® 6 processors, TDP up to 350W(Air cooled)
(32) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slot
(2) M.2 2280/22110 PCIe 5.0 x2 ports
(2) Rear E1.S 9.5mm PCIe 5.0 x4 ports
Max (6) PCIe 5.0 x16 slots support max (2) 350W DW GPU
Max (24) 2.5" PCIe 5.0 x4 U.2 NVMe

Learn More Get Pricing

CX271-S3066

2U Enterprise Server, DC-MHS architecture
Single Intel® Xeon® 6 processor, TDP up to 350W
(16) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(2) PCIe 5.0 x16 OCP 3.0 NIC slots
(2) M.2 2280/22110 PCIe 5.0 x2 ports
(2) PCIe 5.0 x16 FHFL slots support DW 350W GPU
(1) PCIe 5.0 x16 HHHL slot
Max (24) 2.5" PCIe 5.0 x4 U.2 NVMe

Learn More Get Pricing

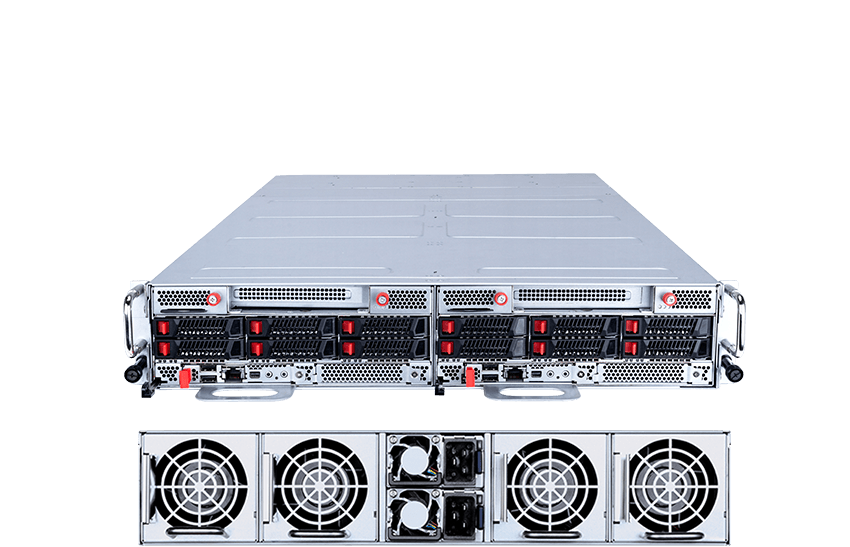

CD270-S3061-X2

2U2N Core Compute Server, DC-MHS architecture
Single Intel® Xeon® 6 processor, TDP up to 350W (per node)
(16) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slot (per node)
(1) PCIe 5.0 x16 FHHL slot (per node)
(2) M.2 2280/22110 PCIe 5.0 x2 ports (per node)
(6) 2.5" PCIe 5.0 x4 U.2 NVMe (per node)

Learn More Get Pricing

CD270-S3061-X4

2U4N Core Compute Server, DC-MHS architecture
Single Intel® Xeon® 6 processor, TDP up to 350W (per node)
(16) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slot (per node)
(2) M.2 2280/22110 PCIe 5.0 x2 ports (per node)
(3) 2.5" PCIe 5.0 x4 U.2 NVMe (per node)

Learn More Get Pricing

CD270-S3071-X2

2U2N Core Compute Server, DC-MHS architecture
Single Intel® Xeon® 6 processor, TDP up to 500W (per node)
(12) DDR5 DIMM slots, 2DPC, up to 6400MT/s RDIMM and 8000MT/s MCRDIMM (1DPC)
(1) PCIe 5.0 x16 OCP 3.0 NIC slot (per node)
(1) PCIe 5.0 x16 FHHL slot (per node)
(2) M.2 2280/22110 PCIe 5.0 x2 ports (per node)
(6) 2.5" PCIe 5.0 x4 U.2 NVMe (per node)

Learn More Get Pricing

Redefining Data Centers for Next-Gen Computing with Intel Xeon 6 Server Solutions

MSI launches Intel Xeon 6 server solutions, designed to tackle demanding workloads with high core density and superior power efficiency, optimized for general-purpose, cloud-native, AI, and HPC applications.
