NVIDIA MGX™ AI Servers
Combining modular MGX™ architecture and early access to the latest NVIDIA GPUs, MSI’s NVIDIA-certified MGX AI platforms deliver scalable performance and GPU density for compute-intensive AI and HPC environments.
Contact UsWhy MGX
Modular Design to Deliver Value Fast
NVIDIA MGX is a modular server architecture built to power AI, HPC, and cloud-scale workloads. With flexible support for multiple generations of CPUs and GPUs, MGX configurations help streamline deployment, reduce cost-to-design and accelerate time-to-value.
Built for GPU-Powered Performance
Designed with GPU acceleration in mind, MGX supports up to 8 GPUs, including NVIDIA H200 NVL and RTX PRO 6000 Blackwell, ideal for LLM training, generative AI, and real-time inference.
Standardized for Seamless Integration
Supporting 2U and 4U form factors and compliant with OCP and EIA standards, MGX platforms integrate easily into existing data center. With PCIe 5.0 and switched fabric topology, MGX streamlines connectivity across compute, storage, and networking, delivering superior throughput and scalable expansion for next-gen data center deployments.
CG480-S6053
- 4U (NVIDIA MGX™ architecture)
- Dual AMD EPYC™ 9005 series processors,TDP up to 500W
- (24) DDR5 RDIMM, 12 channels per CPU(1DPC), up to 6400MT/s
- (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- Max (13) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL/NVIDIA RTX PRO 6000 Blackwell Server Edition PCIe GPU cards
- (2) 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support, Dual BIOS & BMC TPM2.0 on board
- Hardware Root of Trust is supported as optional

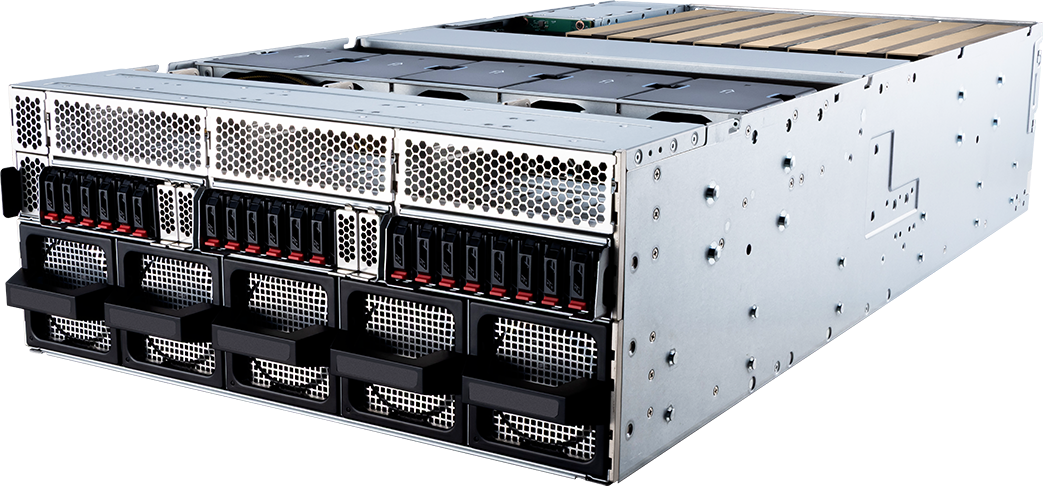

CG480-S5063
- 4U (NVIDIA MGX™ architecture )
- Dual Intel® Xeon® 6500/6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU (2DPC), up to 6400MT/s (1DPC) and 5200MT/s (2DPC)
- (20) Front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- Max (13) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL/NVIDIA RTX PRO 6000 Blackwell Server Edition PCIe GPU cards
- (2) 10GBase-T Ethernet ports with Intel® X710-AT2 (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support, Dual BIOS & BMC TPM2.0 on board
- Hardware Root of Trust is supported as optional

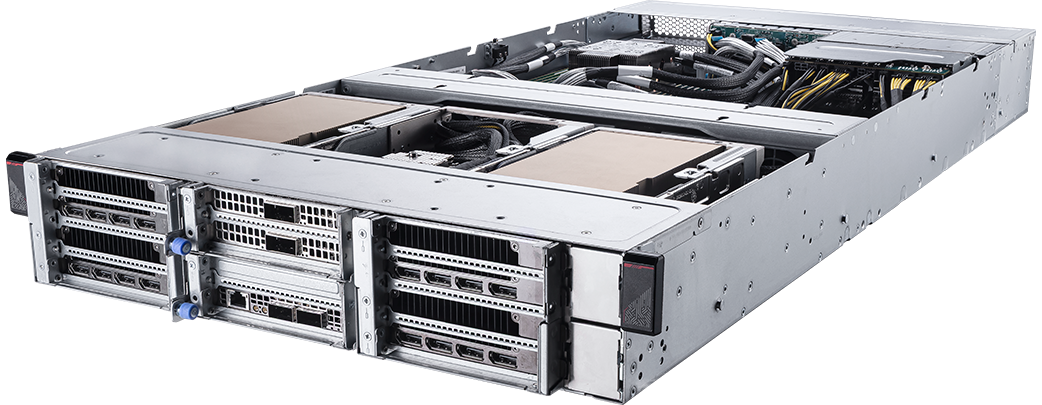

CG290-S3063
- 2U (NVIDIA MGX™ architecture)
- Single Intel® Xeon® 6500P/6700P-series processor with 136 PCIe lanes, TDP up to 350W
- (16) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (4) Rear hot-swap 2.5" drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2
- Max (8) PCIe 5.0 x16 expansion slots, supporting up to (4) NVIDIA H200 NVL/NVIDIA RTX PRO 6000 Blackwell Server Edition PCIe GPU
- (1) 1000Base-T Dedicated Server Management port with: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support, Dual BIOS & BMC TPM2.0 on board
- Hardware Root of Trust is supported as optional
For AI and HPC Workloads
MSI MGX servers deliver high-density, scalable compute to power a full range of AI and HPC applications, enabling you to run the most demanding workloads efficiently and at scale.
LLM Training and Inference
Scale large language models with high-throughput performance for training and real-time inference.
Generative AI and Deep Learning
Accelerate complex neural networks and content creation with powerful AI compute.
HPC and Analytics
Run simulations and data analysis faster with consistent, scalable performance.
Cloud-Scale AI Infrastructure
Support multi-tenant AI services and scale deployments with modular infrastructure.
AI Inference at the Edge
Enable real-time AI at the edge for smart manufacturing, surveillance, and intelligent automation.
Small Model Training and Fine-Tuning
Quickly train and optimize smaller models for targeted business applications.
Recognized by the Industry
MSI’s MGX platforms have been featured in interviews with leading tech publications, including DIGITIMES, Level1Techs and Embedded Computing Design.
Discover what they’ve covered.
