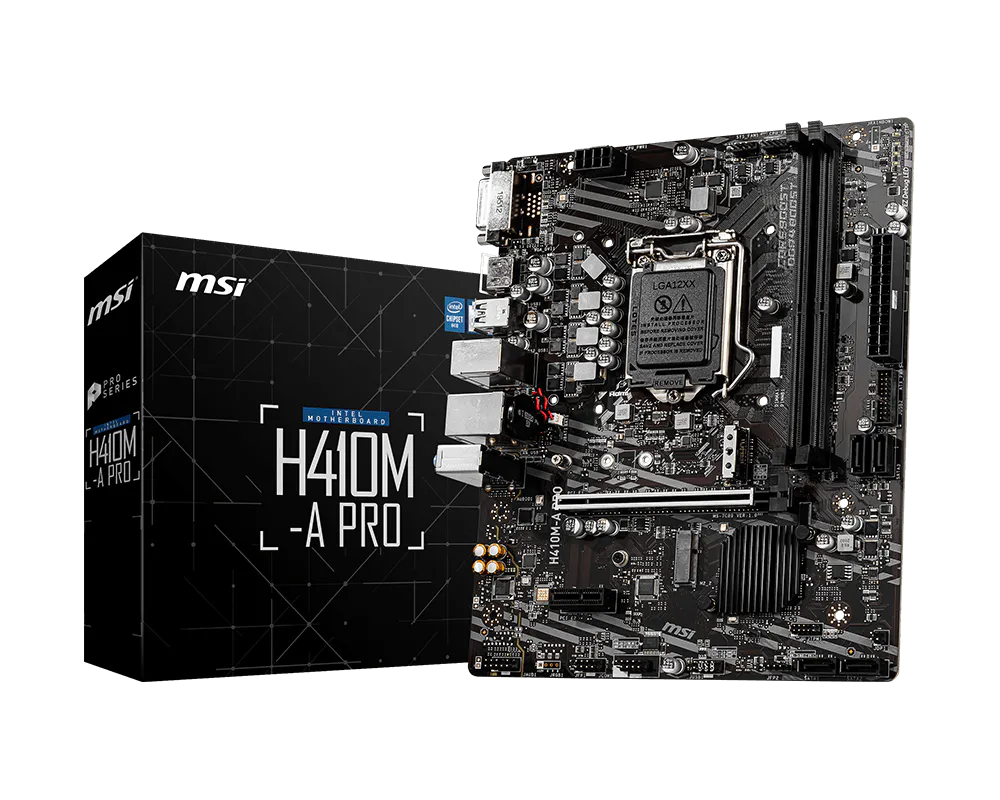

INTEL H410 MOTHERBOARDS H410M-A PRO

H410M-A PRO

Socket
CPU (Max Support)
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
M.2 Slot
TPM (header)
LAN
USB 3.2 ports (Front)
USB 3.2 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Audio ports (Rear)
DVI-D
HDMI
DirectX
Form Factor
Operating System

Socket

1200

CPU (Max Support)

Chipset

Intel® H410 Chipset

DDR4 Memory

2933(Max)/ 2666/ 2400/ 2133 MHz

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3

PCI-E x1

SATAIII

M.2 Slot

TPM (header)

Intel® I219V Gigabit LAN

USB 3.2 ports (Front)

2(Gen 1, Type A)

USB 3.2 ports (Rear)

2(Gen 1, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Serial ports(Front)

Audio ports (Rear)

Realtek® ALC892/ALC897 Codec

DVI-D

HDMI

DirectX

Form Factor

Mirco-ATX

Operating System

Support for Windows® 10 64-bit

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA 1200 socket¹ ²

Please go to www.intel.com for more compatibility information.
Onboard graphics output are disabled when using F SKU processors.

See supported processors

Chipset

Intel^® H410 Chipset

Memory

2x DDR4 memory slots, support up to 64GB¹
Intel^® Core™ i7/ i9
- Supports up to DDR4 2933 MHz
Intel^® Core™ i5 and below
- Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only

Onboard Graphics

1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

Maximum shared memory is 1GB

Storage

Intel^® H410 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB

Intel^® H410 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Audio

Realtek^® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel^® I219V Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

Back panel ports

Keyboard / Mouse
LAN
DVI-D
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors

Dimensions

Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Mounting

6 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
