Specifications for

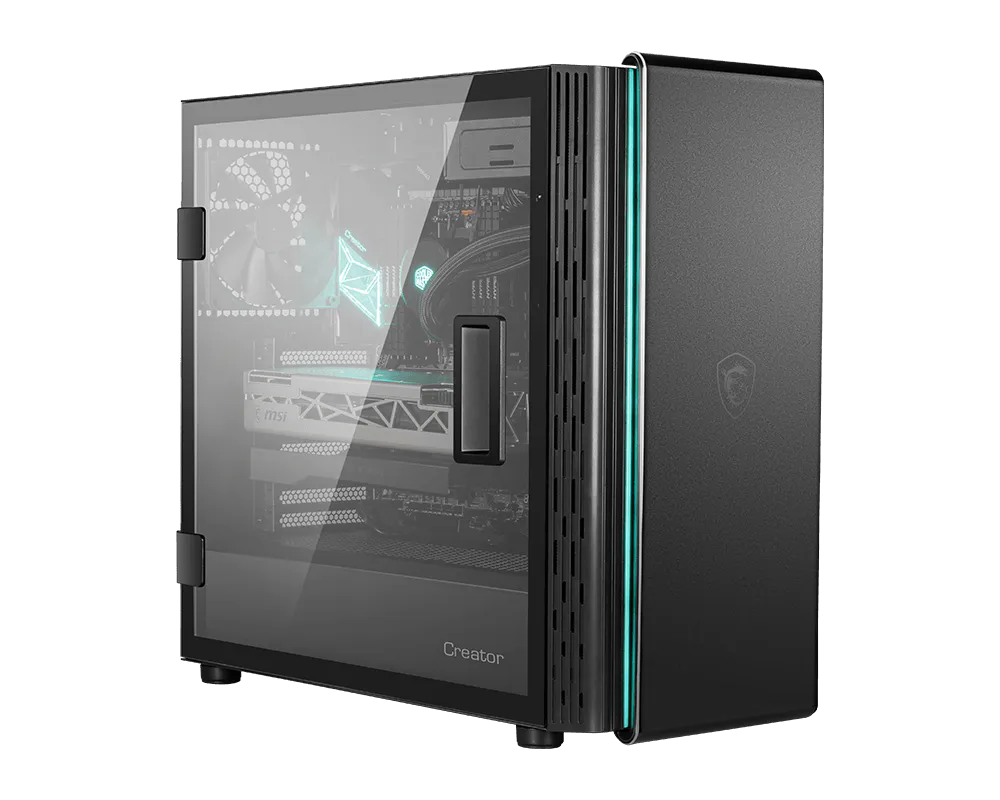

Creator 400M
Net Weight
Net Weight
12.6 KG (27.78 lbs)
Dimensions (DxWxH)
Dimensions (DxWxH)
550(D) x 236(W) x 504(H) mm
21.65(D) x 9.29(W) x 19.84(H) inch
21.65(D) x 9.29(W) x 19.84(H) inch
Radiator Size Support
Radiator Size Support
Front: Up to 360mm
Rear: Up to 140 mm
Rear: Up to 140 mm
Pre-installed Fan Size
Pre-installed Fan Size
Front: 2 x 140 mm System Fan included
Rear: 1 x 140 mm System Fan included
Rear: 1 x 140 mm System Fan included
Power Supply Support
Power Supply Support
Standard ATX 180 mm, max to 200 mm (without 3.5” HDD case installed)
Maximum CPU Cooler Height
Maximum CPU Cooler Height
180 mm
Maximum GPU Length
Maximum GPU Length
456 mm
Expansion Slots
Expansion Slots
7
Drive Mount Support
Drive Mount Support
2 x 3.5” (compatible with 2.5”) + 2 x 2.5”
I/O Ports
I/O Ports
2 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2 Type-C /
2 x USB 2.0 / 1 x HD Audio / 1 x Mic
2 x USB 2.0 / 1 x HD Audio / 1 x Mic
Motherboard Form Factor Support
Motherboard Form Factor Support
E-ATX / ATX / mATX / Mini-ITX
Product Name
Product Name
Creator 400M
