Specifications for

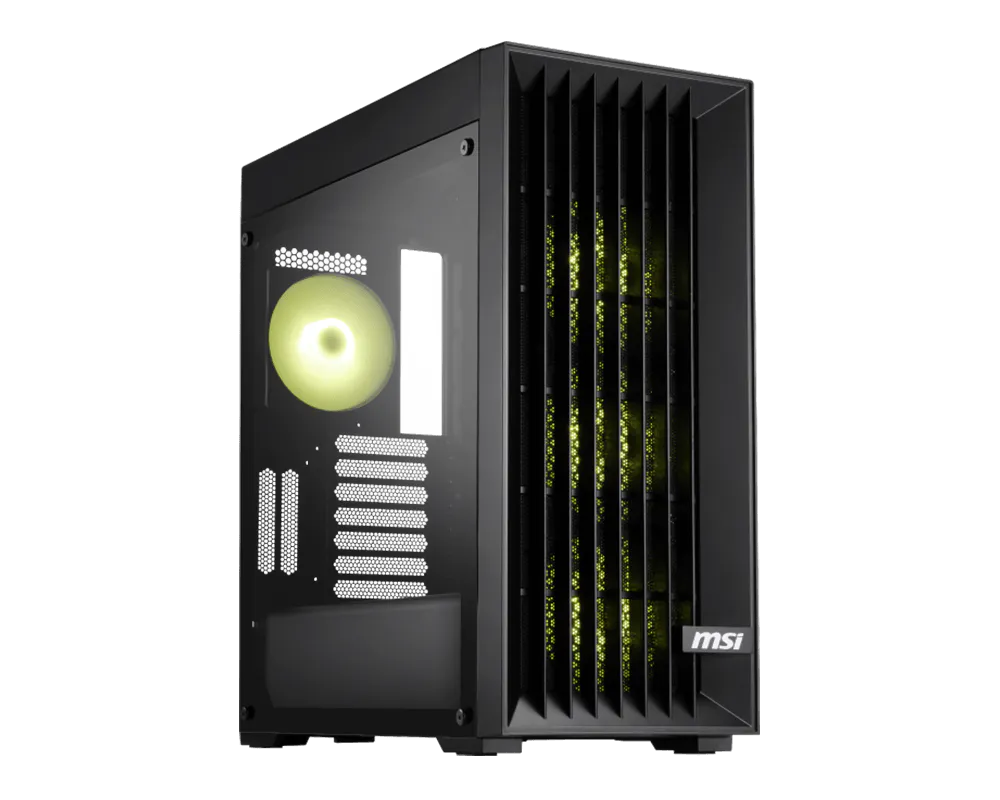

MAG FORGE 210R AIRFLOW
Product Name
Product Name
MAG FORGE 210R AIRFLOW
Case Form Factor
Case Form Factor
Mid-Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
ATX, Micro-ATX, Mini-ITX
I/O Ports
I/O Ports
1 x Power Button
2 x USB 5Gbps (Type-A)
1 x Audio Out / Mic In
1 x LED Button
2 x USB 5Gbps (Type-A)
1 x Audio Out / Mic In
1 x LED Button
Drive Mount Support
Drive Mount Support
3 x 2.5”
2 x 2.5”/3.5” combo
2 x 2.5”/3.5” combo
Expansion Slots
Expansion Slots
7 (Horizontal) + 2 (Vertical)
Maximum GPU Length
Maximum GPU Length
330 mm / 12.99 inches
Maximum CPU Cooler Height
Maximum CPU Cooler Height
165 mm / 6.50 inches
Power Supply Support
Power Supply Support
ATX
Maximum PSU Length
Maximum PSU Length
160 mm / 6.30 inches
Fan Size Support
Fan Size Support
Top: 2 x 120 mm / 1 x 140 mm
Front: 3 x 120 mm
Rear: 1 x 120 mm
Side: N/A
Bottom: N/A
Front: 3 x 120 mm
Rear: 1 x 120 mm
Side: N/A
Bottom: N/A
Pre-installed Fan Size
Pre-installed Fan Size
Front: 3 x 120 mm
Rear: 1 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Pre-installed Fan Type
Front: 3 x ARGB Fan
Rear: 1 x ARGB Fan
Rear: 1 x ARGB Fan
Radiator Size Support
Radiator Size Support
Top: 120 / 140 / 240 mm
Front: 120 / 240 / 360 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Front: 120 / 240 / 360 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Dimensions (DxWxH)
Dimensions (DxWxH)
445 x 211 x 472 mm / 17.52 x 8.31 x 18.58 inches
Net Weight
Net Weight
7.99 kg / 17.61 lbs
Gross Weight
Gross Weight
9.77 kg / 21.54 lbs
