Specifications for
MAG FORGE 330R AIRFLOW
Product Name
Product Name
MAG FORGE 330R AIRFLOW
Case Form Factor
Case Form Factor
Mid-Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
ATX / Micro-ATX / Mini-ITX

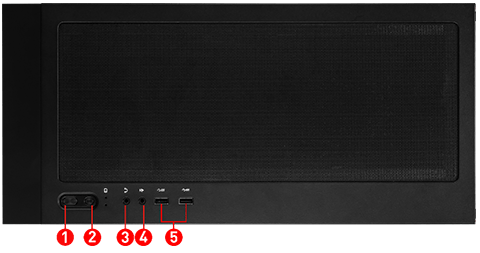

I/O Ports
I/O Ports
1 x Reset Button
1 x Audio-Out
1 x Mic-In
2 x USB 5Gbps (Type-A)
1 x Audio-Out
1 x Mic-In
2 x USB 5Gbps (Type-A)
Drive Mount Support
Drive Mount Support
1 x 2.5"
2 x 2.5" / 3.5"
2 x 2.5" / 3.5"
Expansion Slots
Expansion Slots
7
Maximum GPU Length
Maximum GPU Length
390 mm / 15.35 inches
Maximum CPU Cooler Height
Maximum CPU Cooler Height
160 mm / 6.29 inches
Power Supply Support
Power Supply Support
ATX
Maximum PSU Length
Maximum PSU Length
200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation)
Fan Size Support
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
Bottom: N/A
PSU Shroud: 2 x 120 mm
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
Bottom: N/A
PSU Shroud: 2 x 120 mm
Pre-installed Fan Size
Pre-installed Fan Size
Front: 3 x 120 mm
Rear: 1 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Pre-installed Fan Type
Front: 3 x ARGB fan
Rear: 1 x ARGB fan
Rear: 1 x ARGB fan
Radiator Size Support
Radiator Size Support
Top: 120 / 240 / 280 / 360 mm
Front: 120 / 140 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Front: 120 / 140 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Dimensions (DxWxH)
Dimensions (DxWxH)
472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches
Net Weight
Net Weight
7.05 kg / 15.54lbs
Gross Weight
Gross Weight
8.35 kg / 18.41lbs
