Specifications for
MAG FORGE M110R AIRFLOW
Gross Weight
Gross Weight
5.01 kg / 11.05 lbs
Net Weight
Net Weight
4.27 kg / 9.41 lbs
Dimensions (DxWxH)
Dimensions (DxWxH)
388 x 200 x 423 mm / 15.28 x 7.87 x 16.65 inches
Radiator Size Support
Radiator Size Support
Top: 120 / 240 mm
Front: 120 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Front: 120 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Pre-installed Fan Type
Pre-installed Fan Type
Front: 3 x 120 mm ARGB fan
Rear: 1 x 120 mm ARGB fan
Rear: 1 x 120 mm ARGB fan
Fan Size Support
Fan Size Support
Top: 2 x 120 mm
Front: 3 x 120 mm
Rear: 1 x 120 mm
Side: N/A
Bottom: N/A
Front: 3 x 120 mm
Rear: 1 x 120 mm
Side: N/A
Bottom: N/A
Maximum PSU Length
Maximum PSU Length
180 mm / 7.09 inches or
300 mm / 11.81 inches (without 3.5'' HDD tray installed)
300 mm / 11.81 inches (without 3.5'' HDD tray installed)
Power Supply Support
Power Supply Support
ATX
Maximum CPU Cooler Height
Maximum CPU Cooler Height
160 mm / 6.3 inches
Maximum GPU Length
Maximum GPU Length
300 mm / 11.81 inches
Expansion Slots
Expansion Slots
4
Drive Mount Support
Drive Mount Support
2 x 2.5”
1 x 3.5”
1 x 2.5” / 3.5”
1 x 3.5”
1 x 2.5” / 3.5”

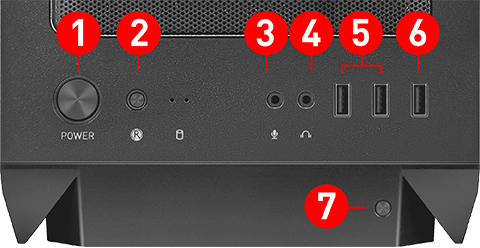

I/O Ports
I/O Ports
1 x Power Button
1 x Reset Button
1 x Mic In
1 x Audio Out
2 x USB 2.0 (Type-A)
1 x USB 5Gbps (Type-A)
1 x LED Switch Button
1 x Reset Button
1 x Mic In
1 x Audio Out
2 x USB 2.0 (Type-A)
1 x USB 5Gbps (Type-A)
1 x LED Switch Button
Motherboard Form Factor Support
Motherboard Form Factor Support
Micro-ATX, Mini-ITX
Case Form Factor
Case Form Factor
Mini Tower
Product Name
Product Name
MAG FORGE M110R AIRFLOW
