Specifications for
MAG PANO M110R / WHITE
Product Name
Product Name
MAG PANO M110R / WHITE
Case Form Factor
Case Form Factor
Mini Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
Micro-ATX, Mini-ITX

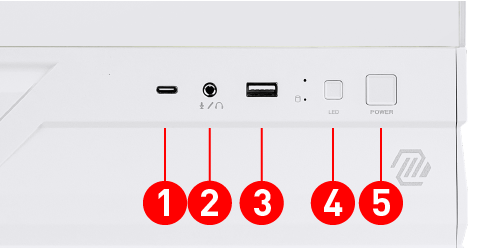

I/O Ports
I/O Ports
1 x USB 20Gbps (Type-C)
1 x Mic In / Audio Out
1 x USB 5Gbps (Type-A)
1 x LED Switch Button
1 x Power Button
1 x Mic In / Audio Out
1 x USB 5Gbps (Type-A)
1 x LED Switch Button
1 x Power Button
Drive Mount Support
Drive Mount Support
1 x 2.5”
1 x 3.5”
2 x 2.5” / 3.5” Combo
1 x 3.5”
2 x 2.5” / 3.5” Combo
Expansion Slots
Expansion Slots
5
Maximum GPU Length
Maximum GPU Length
410 mm / 16.14 inches
Maximum CPU Cooler Height
Maximum CPU Cooler Height
165 mm / 6.50 inches
Power Supply Support
Power Supply Support
ATX
Maximum PSU Length
Maximum PSU Length
200 mm / 7.87 inches
Fan Size Support
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 2 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm
Front: N/A
Rear: 1 x 120 mm
Side: 2 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm
Pre-installed Fan Type
Pre-installed Fan Type
Side: 2 x 140 mm ARGB Fan (Reverse Blades Fan)
Rear: 1 x 120 mm ARGB Fan
Rear: 1 x 120 mm ARGB Fan
Radiator Size Support
Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 mm
Bottom: N/A
Front: N/A
Rear: 120 mm
Side: 120 / 240 mm
Bottom: N/A
Dimensions (DxWxH)
Dimensions (DxWxH)
434 x 225 x 444 mm / 17.09 x 8.86 x 17.48 inches
Net Weight
Net Weight
5.7 kg / 12.57 lbs
Gross Weight
Gross Weight
8.0 kg / 17.64 lbs
