Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

msi mag vampiric 300r pacific blue title
Msi mag vampiric 300r pacific blue banner

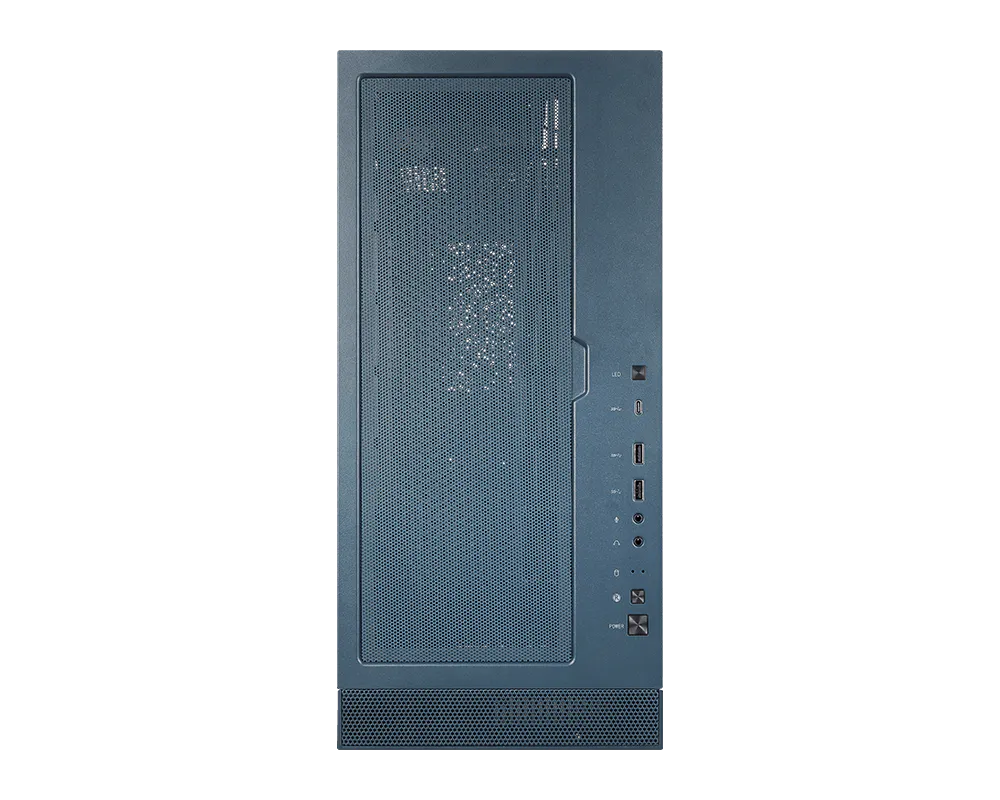

MAG VAMPIRIC 300R pacific blue

Enchant Your Setup

Cast light upon your setup with the MAG VAMPIRIC 300 Series. Designed with utilitarian features and heavy emphasis on ARGB lighting, this gaming PC case is really what makes you a gamer.

msi vampiric 300 pacific blue easy set up

LED Light Strip

The front panel’s LED light strip is capable of showing an abundance of colors, stunning onlookers with its striking looks.

LED Light Strip

ARGB SHOWROOM

Create your own ARGB battle station with the MAG VAMPIRIC 300 Series, fully supported by MSI Mystic Light.

Msi vampiric 300R Pacific blue ARGB SHOWROOM
Insta-Light Loop Button

Insta-Light Loop Button

Quickly control the fan and front LED strip’s lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

BETTER TOGETHER

Synergize the MAG VAMPIRIC 300 Series with a MSI motherboard by bridging a USB 3.2 Type-C for convenient access. Establish a complete MSI gaming ecosystem with a graphics card, liquid cooler, and power supply.

BETTER TOGETHER

VGA SUPPORT BRACKET

The VGA support bracket is capable of sustaining graphics cards of different weights and sizes.

VGA SUPPORT BRACKET

Hardware Capabilities

Hardware Capabilities
Hinged Tempered
Glass Window
Magnetic Dust Filter
Front USB 3.2 Gen 2x2 Type C
1 to 6 Control Board
LED Front Panel
VGA Support Bracket
Magnetic Dust Filter
Hardware Capabilities
  • Hinged Tempered Glass Window
  • Magnetic Dust Filter
  • Front USB 3.2 Gen 2x2 Type C
  • 1 to 6 Control Board
  • LED Front Panel
  • VGA Support Bracket
  • Magnetic Dust Filter

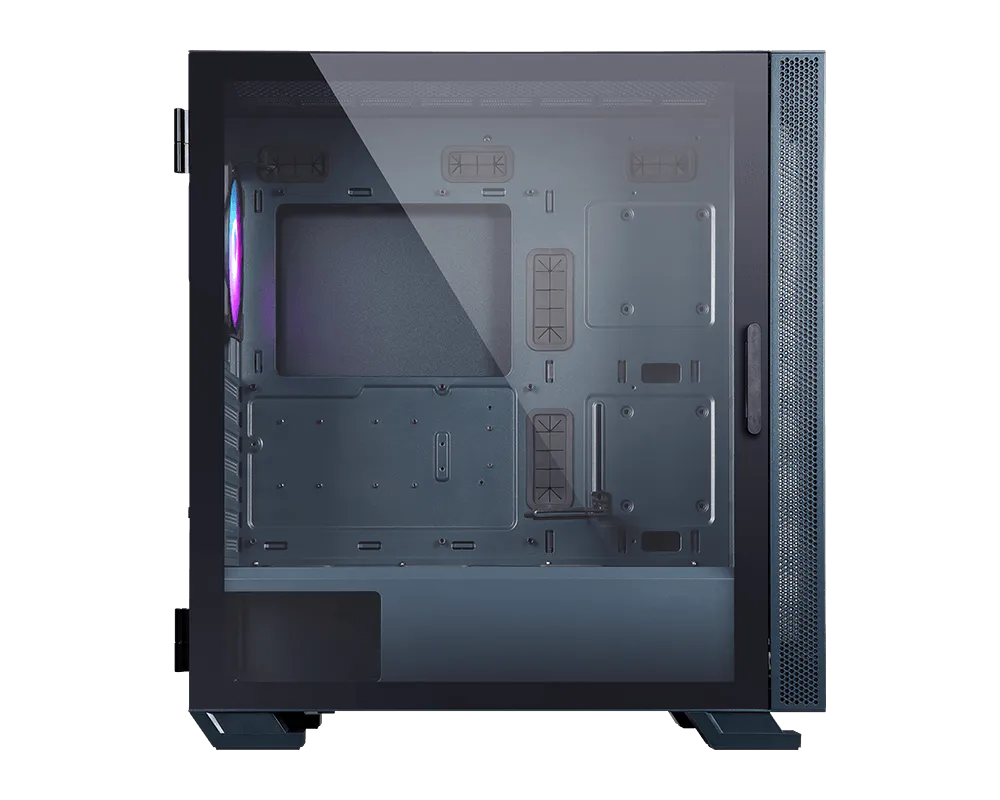

HINGED TEMPERED GLASS SWINGING WINDOW

The 3mm hinged tempered glass swinging window offers the best durability and system accessibility.

msi vampiric 300r pacfic blue
Big Volume

Big Volume

The MAG VAMPIRIC 300R PACIFIC BLUE provides excellent components clearance, capable of having 1 x 360mm radiator/3 x 120mm fans on both the top and the front.

MAGNETIC DUST FILTER

A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.

Vampiric 300r pacific blueMAGNETIC DUST FILTER

INSTANT CONNECT

To light up the LED strip on the front panel, simply install it onto the chassis.

vampiric 300r pacific blue INSTANT CONNECT
vampiric 300r pacific blue Optimized Airflow

Optimized Airflow

The MAG VAMPIRIC 300 Series is optimized to provide generous and effective airflow for system cooling. The MAG VAMPIRIC 300 Series can mount up to 7 fans.

Components Clearance

Components Clearance
Components Clearance
  1. CPU Cooler Length: 175mm
  2. GPU Length: 380mm
  3. PSU Length: up to 220mm (without 3.5” HDD tray)

COMPONENTS CLEARANCE

Fan Support

Hardware Capabilities

Radiator Support

CHardware Capabilities
MAG VAMPIRIC 300R Pacific blue

Product spec

Product Name
MAG VAMPIRIC 300R PACIFIC BLUE
Support MB Form Factor
E-ATX / ATX / M-ATX / ITX
Dimensions (D) x (W) x (H)
471 x 231 x 497mm / 18.5 x 9.1 x 19.6inches
Dimensions w/o Feet/Protrusions/Screws (DxWxH)
420 x 220 x 460mm / 16.5 x 8.7 x 18.1inches
I/O Ports
USB 3.2 x 2 / USB 3.2 Gen 2x2 Type C x 1 / Audio x 1 / Mic x 1
Driver Bays
2.5" SSD x 2 / 3.5" HDD x 2
VGA Card Support
380mm / 15inches
CPU Cooler Support
175mm / 6.9inches
Power Supply
Standard ATX, max up to 220mm (without 3.5" HDD tray installed)
Cooling Layout
Front: 120mm x 3 or 140mm x 3
Top: 120mm x 3 or 140mm x 2
Rear: 120mm x 1 (120mm ARGB Fan x 1 Included)
Radiator Layout
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120 mm
