Specifications for
MEG MAESTRO 900R
Product Name
Product Name
MEG MAESTRO 900R
Case Form Factor
Case Form Factor
Full Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
E-ATX (Up to 280 x 305 mm), ATX, Micro-ATX, Mini-ITX

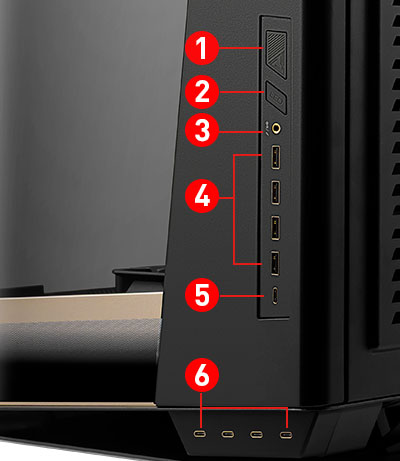

I/O Ports
I/O Ports
1 x USB 20Gbps (Type-C, PD 60W )
4 x USB 10Gbps (Type-C)
4 x USB 5Gbps (Type-A)
1 x Audio Out / Mic In
1 x LED Switch Button
1 x Power Button
4 x USB 10Gbps (Type-C)
4 x USB 5Gbps (Type-A)
1 x Audio Out / Mic In
1 x LED Switch Button
1 x Power Button
Drive Mount Support
Drive Mount Support
8 x 2.5” Bay
4 x 3.5” Bay
1 x 2.5” / 3.5 Combo Bay
4 x 3.5” Bay
1 x 2.5” / 3.5 Combo Bay
Expansion Slots
Expansion Slots
8 (Horizontal)
3 (Additional Vertical)
3 (Additional Vertical)
Maximum GPU Length
Maximum GPU Length
440 mm / 17.32 inches
Maximum CPU Cooler Height
Maximum CPU Cooler Height
170 mm / 6.69 inches
Power Supply Support
Power Supply Support
ATX
Maximum PSU Length
Maximum PSU Length
200 mm / 7.87 inches
Fan Size Support
Fan Size Support
Top: 4 x 120 mm / 3 x 140 mm / 3 x 160 mm
Front: N/A
Rear: N/A
Side: 3 x 120 mm (Left) + 3 x 120 mm (Right)
Bottom: 4 x 120 mm / 3 x 140 mm / 3 x 160 mm
Front: N/A
Rear: N/A
Side: 3 x 120 mm (Left) + 3 x 120 mm (Right)
Bottom: 4 x 120 mm / 3 x 140 mm / 3 x 160 mm
Pre-installed Fan Type
Pre-installed Fan Type
Bottom: 3 x 160 mm ARGB Fan (Reverse Blades Fan)
Radiator Size Support
Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 / 420 mm
Front: N/A
Rear: N/A
Side: 120 / 240 / 360 mm (Left) + 120 / 240 / 360 mm (Right)
Bottom: 120 / 140 / 240 / 280 / 360 / 420 mm
Front: N/A
Rear: N/A
Side: 120 / 240 / 360 mm (Left) + 120 / 240 / 360 mm (Right)
Bottom: 120 / 140 / 240 / 280 / 360 / 420 mm
Dimensions (DxWxH)
Dimensions (DxWxH)
695 x 379 x 671 mm / 27.36 x 14.92 x 26.42 inches
Net Weight
Net Weight
33 kg / 72.75 lbs
Gross Weight
Gross Weight
38.8 kg / 85.54 lbs
