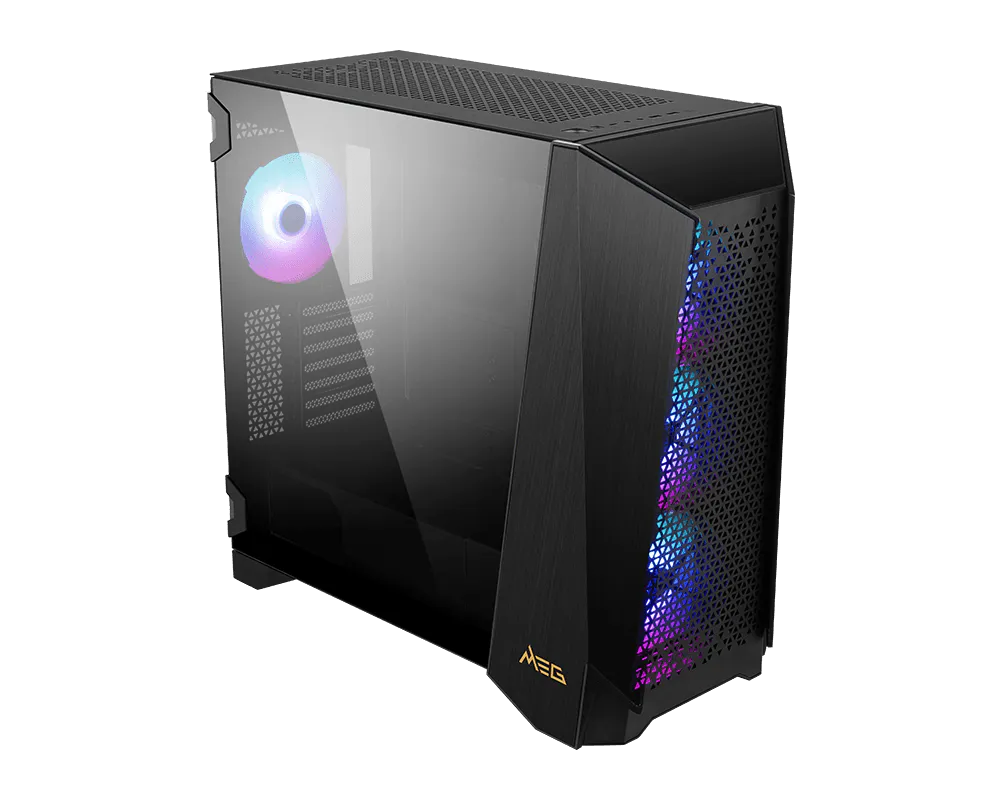

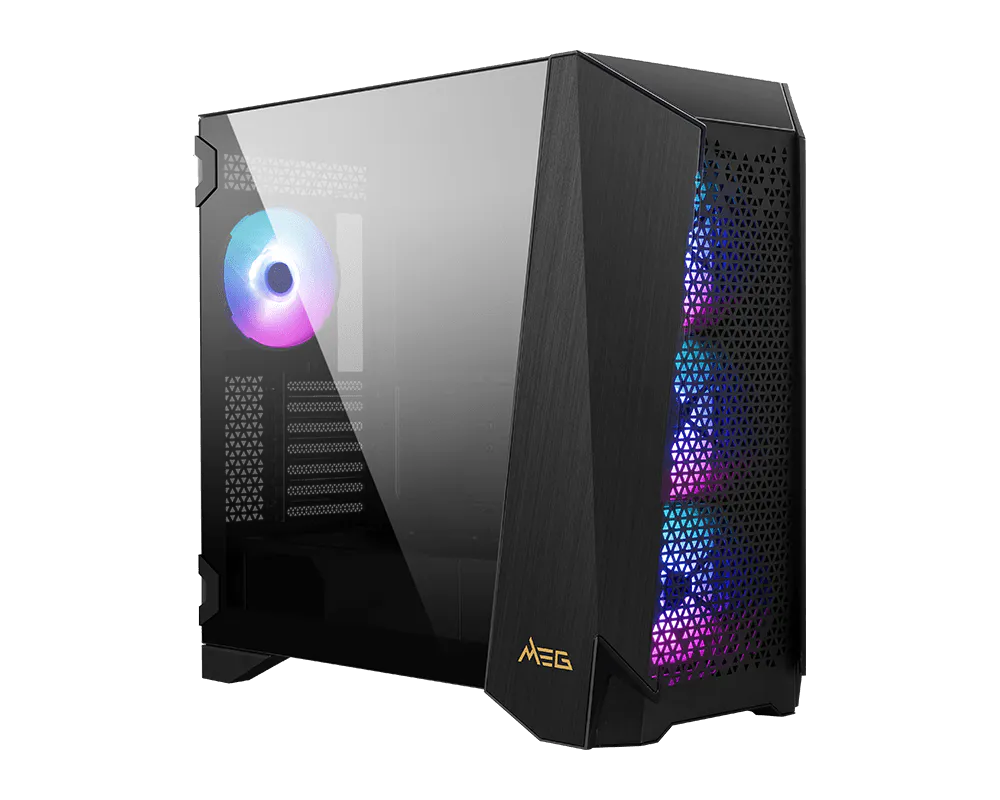

MSI Meg Prospect 700RL Banner title
MSI MEG Prospect 700RL banner

Big House that Rooms All

The MEG PROSPECT 700 Series are well prepared to house all of your core computer components, including the latest NVIDIA® GeForce RTX® 40 Series graphics cards. The MEG PROSPECT 700 Series support vertical GPU mounting as well as cards up to 400mm long. Just know that whatever you choose to use, it's got you covered.

MSI 4090 VGA

The interior of the MEG PROSPECT 700 Series is fully modular, allowing users to change it according to their needs. It also comes equipped with four 140mm ARGB fans while the entire system is capable of having up to ten fans installed.

view More


The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.


The gaming cases offers extensive support for the installation of your hardware components.

  • rwdimg Modular Design
  • rwdimg Components Compatbility
  • rwdimg Storage support

Modular Design

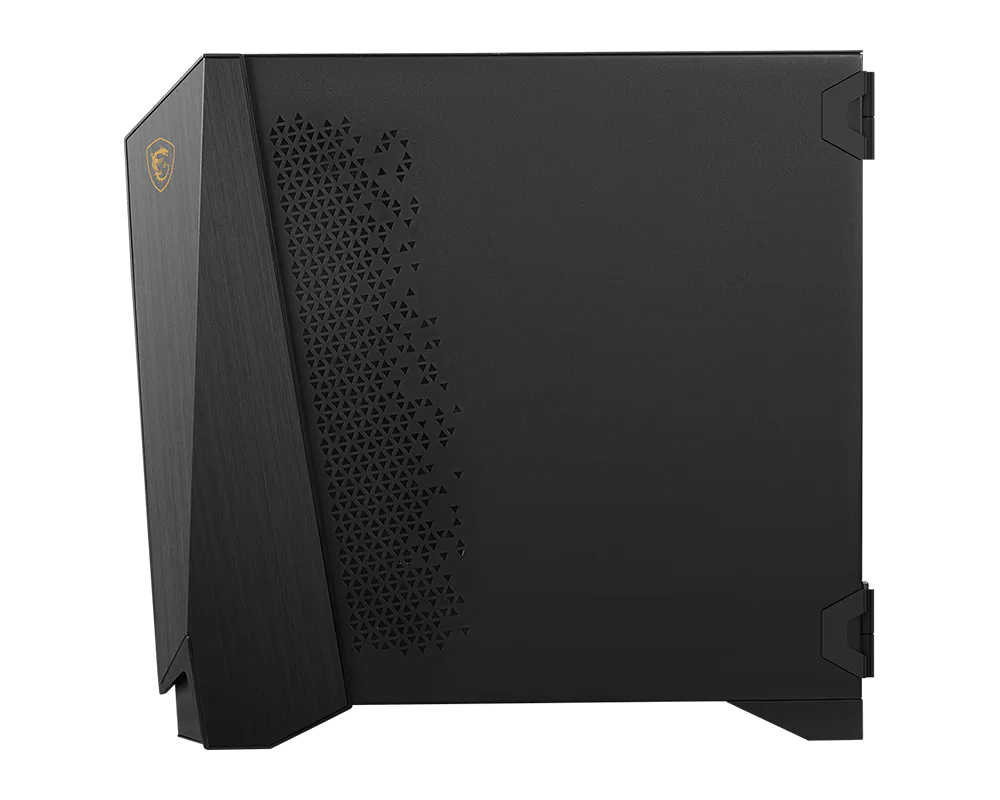

The side of the MEG PROSPECT 700 Series is fully modular, allowing users to change it accordingly to their needs. Three different plates can be installed.

Components Capability

Msi Meg 700RL support motherboard
1 2 3 4
msi meg prospect 700RL case inside

Gigantic graphics card support

Here is more space for you to upgrade pc build with the next graphics card.

Msi Meg Prospect 700RL Gigantic VGA
MSI MEG Prospect 700RL storage support


Configure your own storage layout and install up to 4x 2.5” or 2x 2.5"+2x 3.5" or 3x 2.5" + 1x 3.5" storages.

four box image

4 x 2.5”

four box image

2 x 2.5” + 2 x 3.5”

four box image

3 x 2.5” + 1 x 3.5”

  • rwdimg Cable Routing
  • rwdimg Dust Filter
  • rwdimg Tempered Glass Swinging Window
Msi Meg 700RL Cable routing

Cable Routing

It is simply and fast to build a adept system with major cables neatly routed through a channel.

MSI MEG Prospect 700RL Dust Filter


The dust filters on the top, front, side and bottom vents keeping dust from falling inside while being easily removed for cleaning.

msi meg prospect 700rl dust  filter function


The 3mm hinged tempered glass swinging window offers the best durability and system accessibility.

Msi Meg Prospect 700RL hinged tempered glass swinging


You don't need to worry about system cooling with the help of the gaming cases.

  • rwdimg Fan Support
  • rwdimg EK Distro Plate
  • rwdimg Radiator Support
Msi Meg 700RL for cooling

potential for cooling

To provide the most supreme cooling to all system components, it can support up to two 360mm radiators and three 140mm fans.

Fan Support



fan icon


MSI Motherboard fan Support


Custom EK-designed distribution plate enables high-performance water cooling with minimal effort. By using Matrix7 compliant products ,it’s possible to build an entire loop without even bending the tubes.

Learn More

Radiator Support



fan icon


MSI liquid cooling
120mm line
140mm line
MSI Motherboard radiator Support


Build and display the coolest PC with controllable ARGB lighting.

  • rwdimg ARGB Showroom
Msi RGB Mystic Light icon


Create your own ARGB battle station with the MEG PROSPECT 700 Series, fully supported by MSI Mystic Light.

Msi Meg Prospect 700RL argb


Synergize the MEG PROSPECT 700 Series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high speed data transmission.

Msi Meg 700RL USB3.2 port
MSI Meg 700RL Front IO

Connectable Front I/O

  • Power
  • Reset
  • USB 3.2 Gen 2X2 Type-C
  • Audio-Out / Mic-in
  • LED Switch
  • 2 x USB 3.2 Gen 1 Type-A


  • Can install up to 10x 120mm system fans, providing ventilation and stable performance to the whole system.
  • Built-in ARGB fans with striking lighting and vivid lighting effects.
  • Designed in partner with EK, the MEG PROSPECT 700 Series can fit an EK distribution plate inside.
  • Synergize with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high speed data transmission.
  • Vertical GPU bracket as an accessory that allows you to mount your graphics card vertically.
