Specifications for
PRO PANO M120R / W
Product Name
Product Name
PRO PANO M120R / W
Case Form Factor
Case Form Factor
Mini Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
Micro-ATX, Mini-ITX
I/O Ports
I/O Ports
1 x Power Button
1 x Reset Button
1 x Mic In / Audio Out
2 x USB (Type-A)
1 x USB 5Gbps (Type-A)
1 x Reset Button
1 x Mic In / Audio Out
2 x USB (Type-A)
1 x USB 5Gbps (Type-A)
Drive Mount Support
Drive Mount Support
2 x 2.5“
1 x 3.5“
1 x 3.5“
Expansion Slots
Expansion Slots
4
Maximum GPU Length
Maximum GPU Length
390 mm / 15.35 inches
Maximum CPU Cooler Height
Maximum CPU Cooler Height
160 mm / 6.30 inches
Power Supply Support
Power Supply Support
ATX
Maximum PSU Length
Maximum PSU Length
170 mm / 6.69 inches
Fan Size Support
Fan Size Support
Front: N/A
Rear: 1 x 120 mm
Top: 3 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 3 x 120 mm
Rear: 1 x 120 mm
Top: 3 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 3 x 120 mm
Pre-installed Fan Type
Pre-installed Fan Type
Side: 2 x 120 mm ARGB Fan (Reverse Blade Fan)
Rear: 1 x 120 mm ARGB Fan
Rear: 1 x 120 mm ARGB Fan
Radiator Size Support
Radiator Size Support
Front: N/A
Rear: 120 mm
Top: 120 / 240 / 360 mm
Side: 120 / 240 mm
Bottom: N/A
Rear: 120 mm
Top: 120 / 240 / 360 mm
Side: 120 / 240 mm
Bottom: N/A
Dimensions (DxWxH)
Dimensions (DxWxH)
420 x 287 x 356 mm / 16.54 x 11.30 x 14.02 inches
Net Weight
Net Weight
6.2 kg / 13.67 lbs
Gross Weight
Gross Weight
7.5 kg / 16.53 lbs

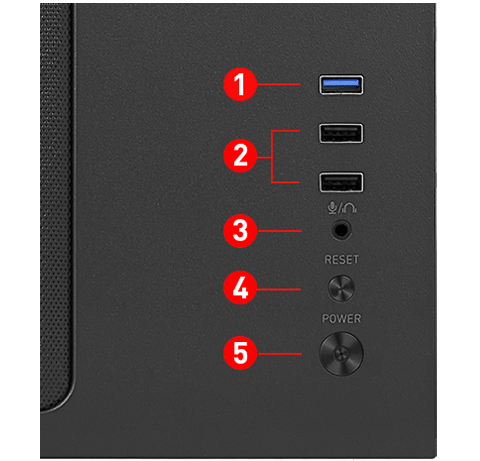

Connections
Connections
 | 1. USB 5Gbps (Type-A) 2. 2 x USB (Type-A) 3. Mic In / Audio Out 4. Reset Button 5. Power Button |
