MAG logo

Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

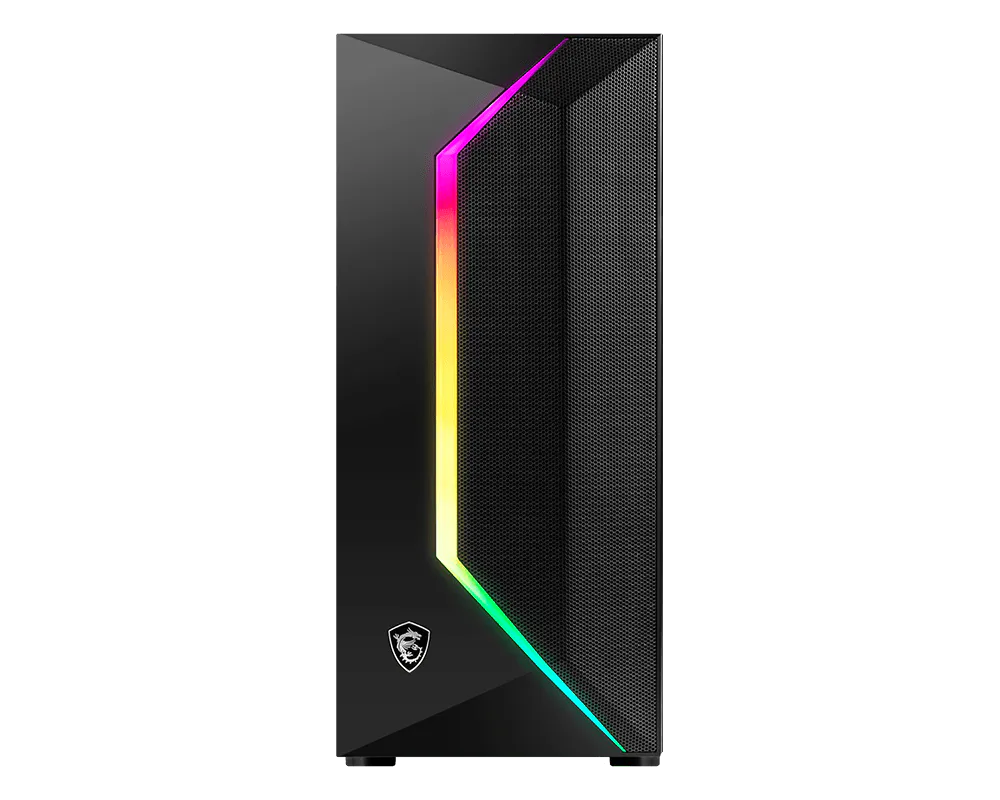

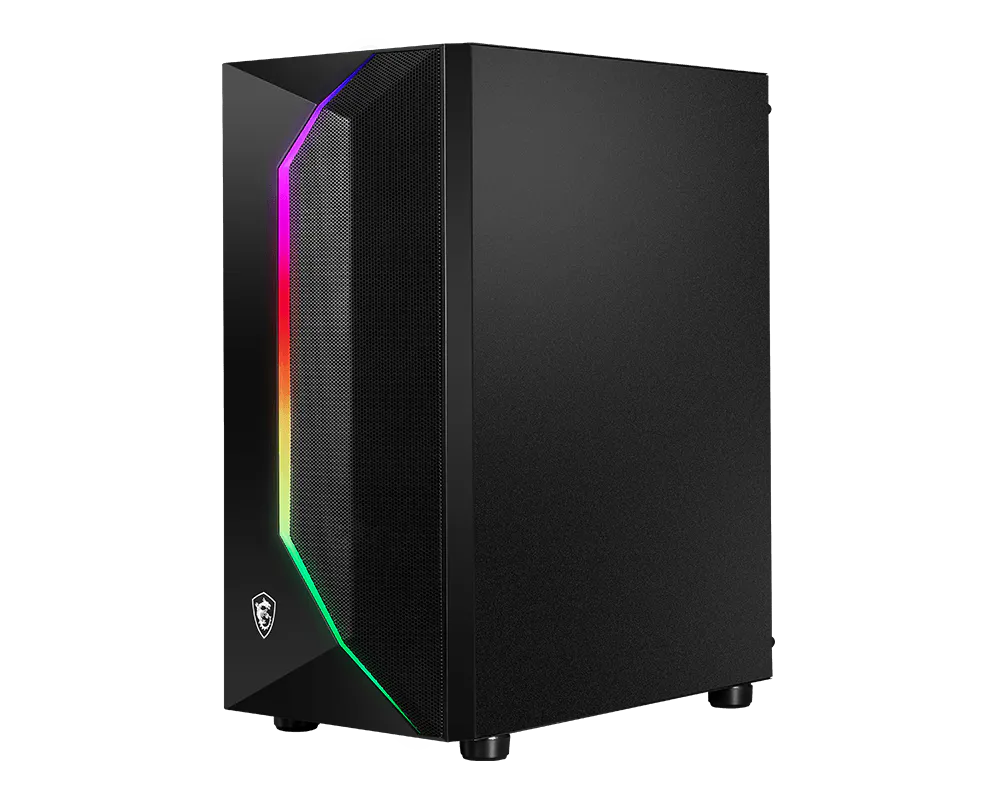

MAG VAMPIRIC 100L
MAG VAMPIRIC 100L
MAG VAMPIRIC 100L

SELECT AND CONQUER

Learn More
Hardware Capabilities
CHardware Capabilities

Mesh Certified Makes It Work

The MAG VAMPIRIC 100 Series stands at the equilibrium where function seamlessly meets design. The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The supreme cooling performance is further highlighted by the front panel light, showcasing VAMPIRIC 100 Series’ good looks and superior functionality.

Mesh Certified Makes It Work

Designed for Performance

The front mesh panel has been built to effectively let in air for maximum ventilation while stunning onlookers with its striking design.

Designed for Performance
Insta-Light Loop Button

Insta-Light Loop Button

Quickly control the fan color and lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

Hardware Capabilities

Hardware Capabilities

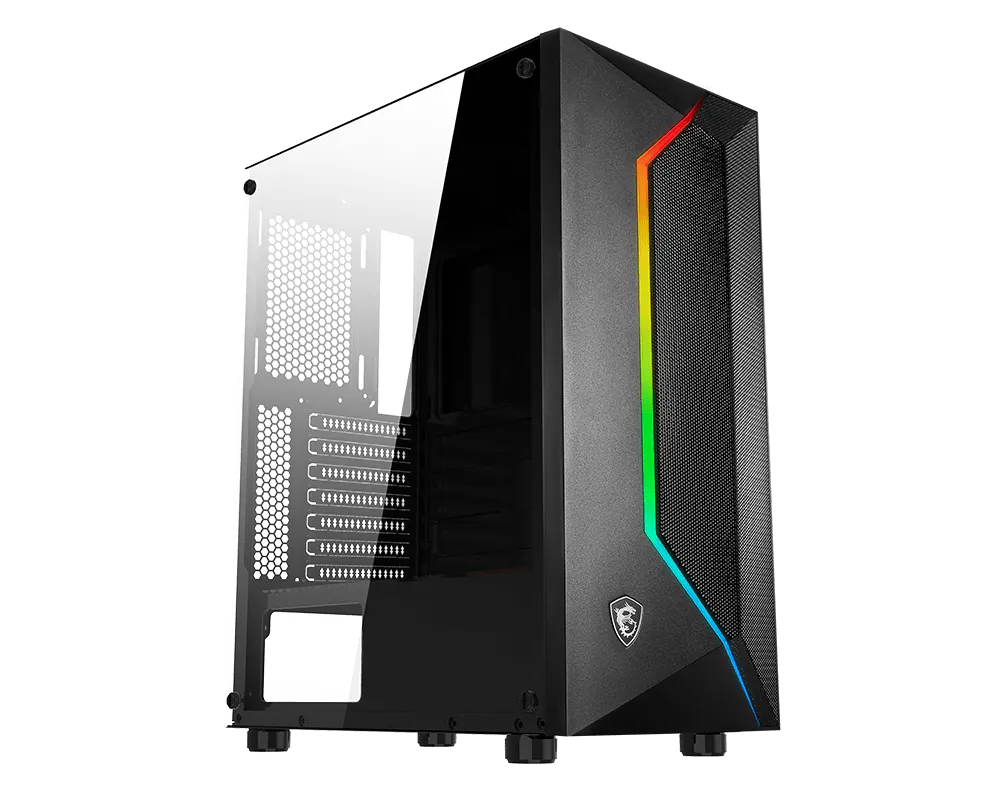

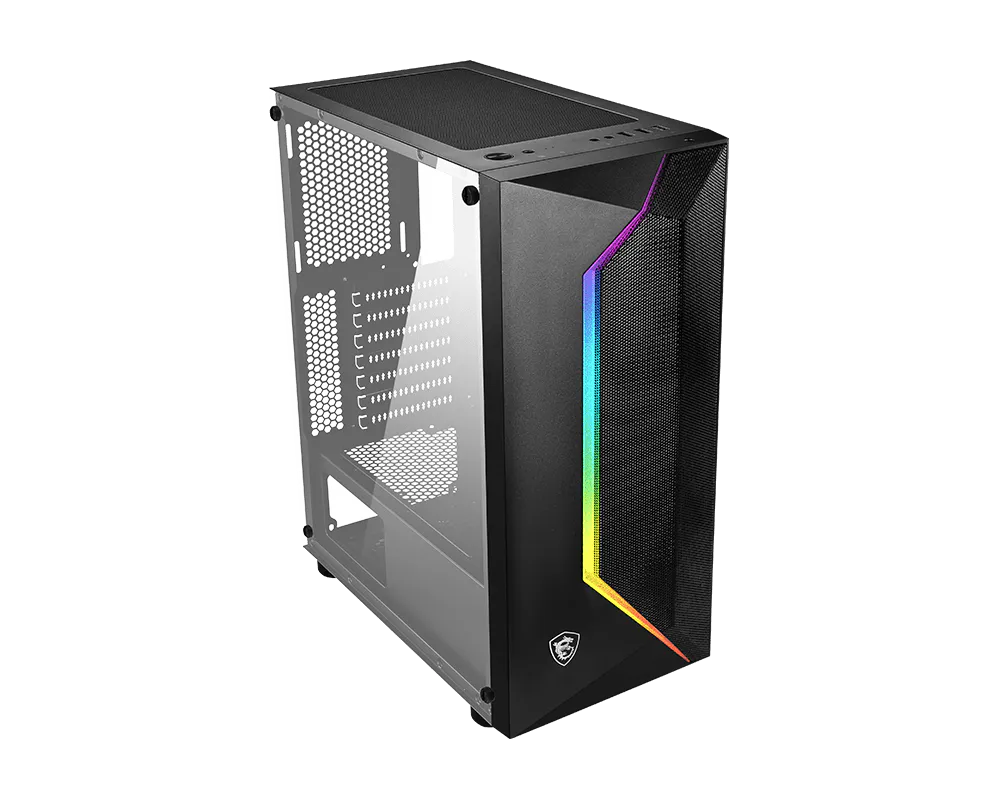

Tempered Glass Window

The MAG VAMPIRIC 100 Series reveals your arsenal with a tempered glass side panel. Arm the system with MSI’s liquid cooler, motherboard, and graphics card for the ultimate display of power and performance.

Tempered Glass Window

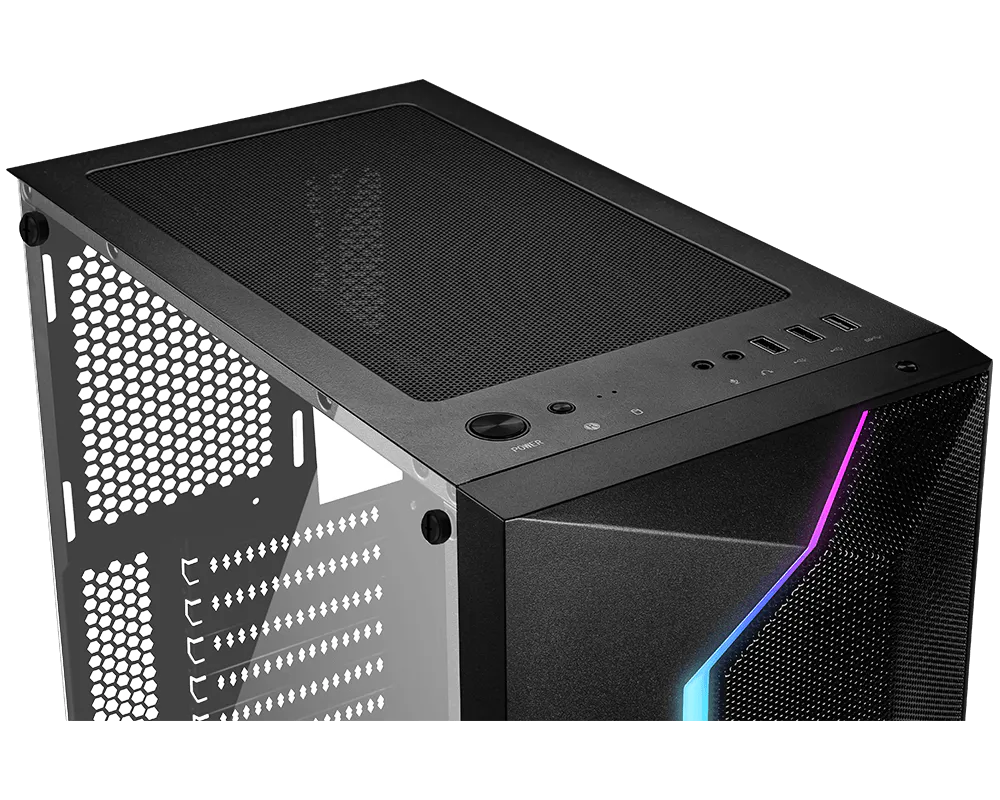

Magnetic Dust Filter

A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.

Magnetic Dust Filter
Optimized Airflow Design

Optimized Airflow Design

The MAG VAMPIRIC 100 Series has been engineered to focus air flow across the system for incredible cooling performance.
Up to 6 fans can be installed.

Components Clearance

Components Clearance
Components Clearance
  1. CPU Cooler Length: 160mm
  2. GPU Length: 300mm
  3. PSU Length: up to 270mm (without 3.5” HDD tray)

COMPONENTS CLEARANCE

Fan Support

Hardware Capabilities

Radiator Support

CHardware Capabilities

Front IO Panel

  • 1Power Button
  • 2Reset Button
  • 3Mic in
  • 4Audio out
  • 52 x USB 2.0
  • 6USB 3.2 Gen 1 Type A
  • 7Insta-Light Loop
Magnetic Dust Filter
MAG VAMPIRIC 100L

Product spec

Product Name
MAG VAMPIRIC 100L
Support MB Form Factor
ATX / M-ATX / Mini-ITX
Dimension (W) x (D) x (H)
205 x 390 x 457 mm / 8.07 x 15.35 x 17.99 inches
I/O Ports
1 x USB 3.2 Gen 1 Type A / 2 x USB 2.0 / HD Audio / Mic
Driver Bays
2 x 2.5" + 2 x 3.5" (1 x compatible with 2.5")
VGA Card Support
Max 300 mm / 11.81 inch
CPU Cooler Support
Max 160 mm / 6.3 inch
Power Supply
Standard ATX, max to 270 mm( without 3.5" HDD tray installed )
Cooling Layout
Front Max: 3 x 120 mm or 2 x 140 mm
Top: Max: 2 x 120 mm
Rear: 1 x 120 mm
Radiator Layout
Front: up to 240 mm / Rear: up to 120 mm
MAG Vampiric 100 Series

You may also like

Mesh Certified Makes It Work

  • Can install up to 6x system fans, providing ventilation and stable performance to the whole system
  • Premium-grade 4mm thick tempered glass that guarantees window durability and viewing capability
  • The magnetic dust filter on top is designed to give users an easy un-installing and cleaning experience
  • Quickly control the fan color and lighting effects with Insta-Light Loop at the touch of a button
