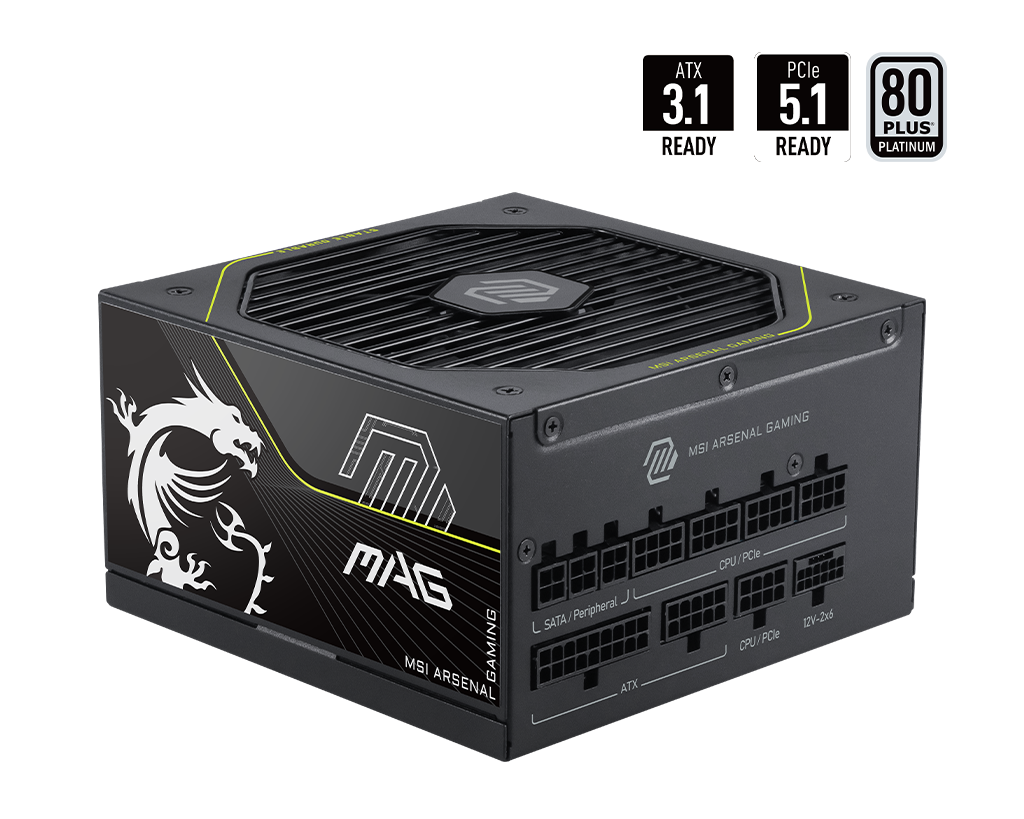

MAG A1000PLS PCIE5
Specifications for

MAG A1000PLS PCIE5

Data sheet
Efficiency Rating
Efficiency Rating
80 PLUS PLATINUM
Power Watt
Power Watt
1000W
Modular
Modular
Fully Modular
Form Factor
Form Factor
ATX
Dimensions (DxWxH)
Dimensions (DxWxH)
150x150x86 mm
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100~240 VAC
Input Frequency Range
Input Frequency Range
50~60 Hz
Fan
Fan
Size: 135mm
Bearing: FDB
Protection
Protection
OVP / OCP / OTP / OPP / SCP / SIP / UVP / NLO
Connector
Connector
1 x Motherboard (24 pin)
1 x CPU (4+4 pin)
1 x CPU (8 pin)
1 x PCIe 5 (12+4 pin) / 600W
4 x PCIe (6+2 pin)
6 x SATA
3 x Peripheral (4 pin)
