Specifications for

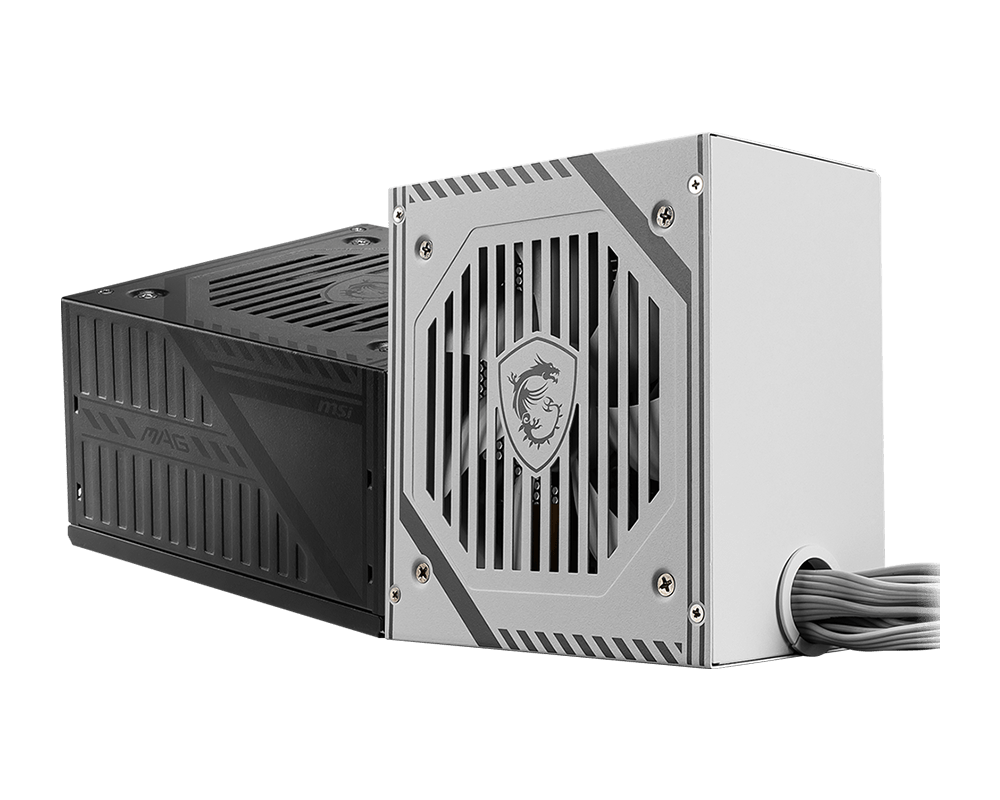

MAG A650BNL / WHITE
Protection
Protection
OCP, OVP, OPP, SCP
FDD (4 pin)
FDD (4 pin)
1
PERIPHERAL (4 pin)
PERIPHERAL (4 pin)
2
SATA (15 pin)
SATA (15 pin)
5
PCI-E (6+2 pin)
PCI-E (6+2 pin)
2
EPS (4+4 pin)
EPS (4+4 pin)
2
ATX (24 pin)
ATX (24 pin)
1
Input Frequency Range
Input Frequency Range
50~60Hz
Power Watt
Power Watt
650W
Input Voltage Range
Input Voltage Range
100-240~
PFC Type
PFC Type
Active PFC
Dimensions (DxWxH)
Dimensions (DxWxH)
150mm x 140mm x 86mm / 5.91 x 5.51 x 3.39 inches
Fan Bearing
Fan Bearing
Hydro Bearing
Fan Size
Fan Size
120 mm
Modular
Modular
No
Efficiency Rating
Efficiency Rating
80 PLUS Bronze (up to 85%)
