Specifications for

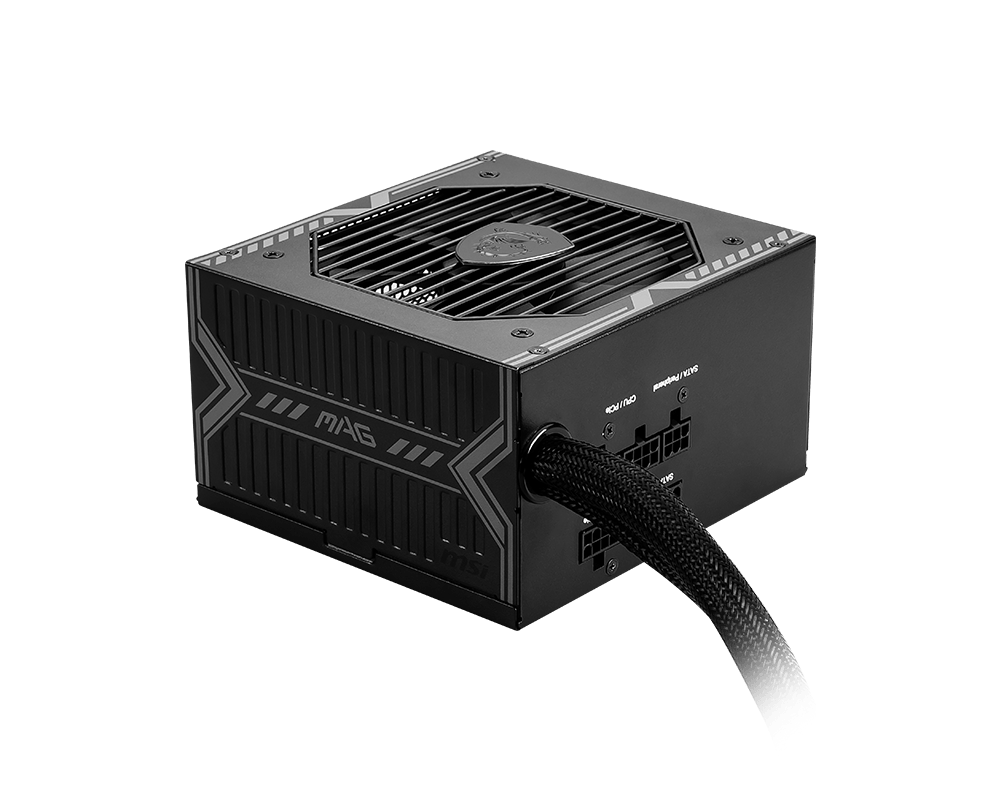

MAG A750BE
Protection
Protection
OCP, OVP, OPP, OTP, SCP
FDD (4 pin)
FDD (4 pin)
1
PERIPHERAL (4 pin)
PERIPHERAL (4 pin)
4
SATA (15 pin)
SATA (15 pin)
8
PCI-E (6+2 pin)
PCI-E (6+2 pin)
2
EPS (4+4 pin)
EPS (4+4 pin)
2
ATX (24 pin)
ATX (24 pin)
1
Input Frequency Range
Input Frequency Range
50~60Hz
Power Watt
Power Watt
750W
Input Voltage Range
Input Voltage Range
100-240~
PFC Type
PFC Type
Active PFC
Dimensions (DxWxH)
Dimensions (DxWxH)
140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
Fan Bearing
Fan Bearing
Sleeve Bearing
Fan Size
Fan Size
120 mm
Modular
Modular
Semi-Modular
Efficiency Rating
Efficiency Rating
80 PLUS Bronze (up to 85%)
