Specifications for

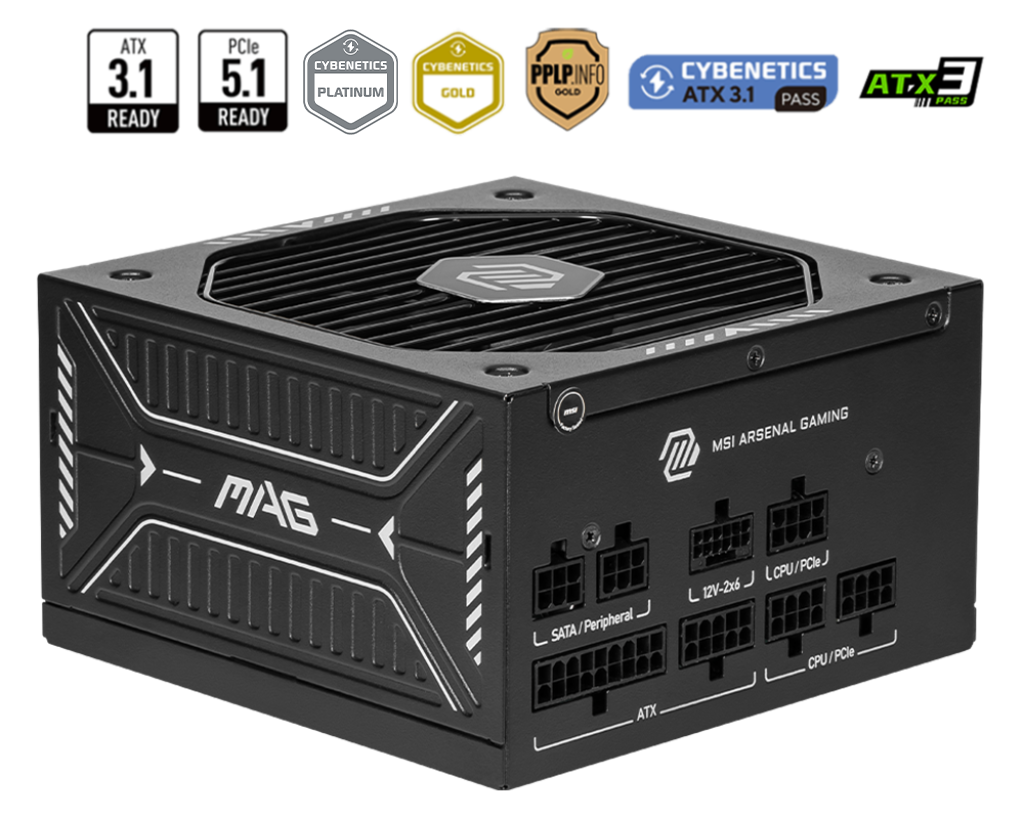

MAG A750GLS PCIE5
Protection
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
FDD (4 pin)
FDD (4 pin)
1
PERIPHERAL (4 pin)
PERIPHERAL (4 pin)
2
SATA (15 pin)
SATA (15 pin)
5
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (450W)
EPS (4+4 pin)
EPS (4+4 pin)
2
ATX (24 pin)
ATX (24 pin)
1
Power Excursion
Power Excursion
1650W (*up to 220% of the PSU's rated power for 100μs)
Input Frequency Range
Input Frequency Range
50-60 Hz
Power Watt
Power Watt
750W
Input Voltage Range
Input Voltage Range
100-240V~
PFC Type
PFC Type
Active PFC
Dimensions (DxWxH)
Dimensions (DxWxH)
150 x 150 x 86 mm
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Fan Size
Fan Size
135 mm
Modular
Modular
Yes (full modular)
Efficiency Rating
Efficiency Rating
80 PLUS Gold (up to 90%)
