Specifications for

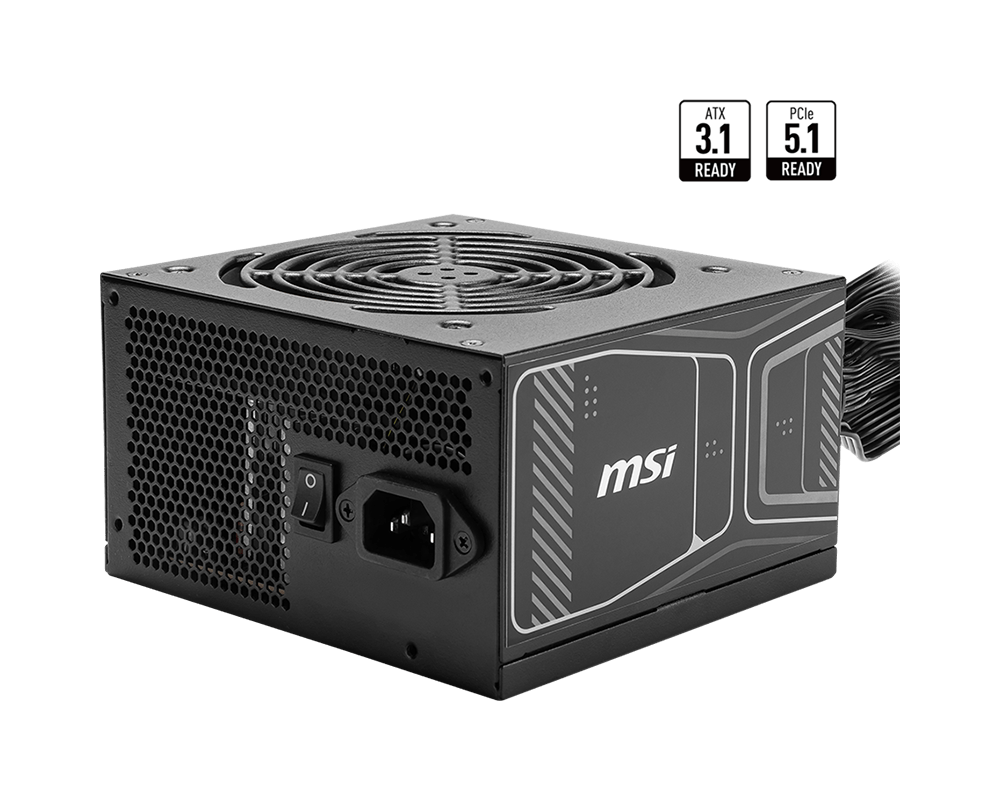

MAG A850GN PCIE5
Efficiency Rating
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Modular
No (non modular)
Fan Size
Fan Size
120 mm
Fan Bearing
Fan Bearing
Sleeve Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
140 x 150 x 86 mm
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100~240 VAC
Power Watt
Power Watt
850W
Power Excursion
Power Excursion
1700W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range
Input Frequency Range
47-63Hz
Protection
Protection
OCP / OVP / OPP / OTP / SCP
ATX (24 pin)
ATX (24 pin)
1
EPS (4+4 pin)
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1
PCI-E (6+2 pin)
PCI-E (6+2 pin)
2
SATA (15 pin)
SATA (15 pin)
4
PERIPHERAL (4 pin)
PERIPHERAL (4 pin)
2
