Specifications for
MPG Ai1600TS PCIE5
Efficiency Rating
Efficiency Rating
80 PLUS TITANIUM
Power Watt
Power Watt
1600W
Modular
Modular
Fully Modular
Form Factor
Form Factor
ATX
Dimensions (DxWxH)
Dimensions (DxWxH)
150x190x86 mm
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100~240 VAC
Input Frequency Range
Input Frequency Range
50~60 Hz
Fan
Fan
Size: 135mm
Bearing: FDB
Bearing: FDB
Protection
Protection
OVP / OCP / OTP / OPP / SCP / SIP / UVP / NLO
Connector
Connector
1 x Motherboard (24 pin)
1 x CPU (4+4 pin)
1 x CPU (8 pin)
2 x PCIe 5 (12+4 pin) / 600W
7 x PCIe (6+2 pin)
8 x SATA
4 x Peripheral (4 pin)
1 x CPU (4+4 pin)
1 x CPU (8 pin)
2 x PCIe 5 (12+4 pin) / 600W
7 x PCIe (6+2 pin)
8 x SATA
4 x Peripheral (4 pin)
group
group

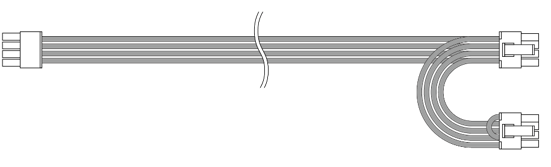

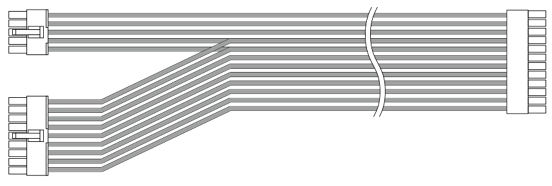

| Amount / Type | Length (mm) | Diagram |
|---|---|---|
1 x ATX Embossed Jacket Cable | 600 |  |
2 x EPS12V Embossed Jacket Cable | 650 |  |
2 x PCIe 5.1 Embossed Jacket Cable | 600 |  |
5 x PCIe Embossed Jacket Cable | 600 |  |
1 x PCIe to dual PCIe Embossed Jacket Cable | 600 | 150 |  |
2 x SATA Embossed Jacket Cable | 500 | 150 | 150 | 150 |  |
1 x PERIPHERAL Embossed Jacket Cable | 500 | 150 | 150 | 150 |  |
1 x USB-C to USB 2.0 (software connect) | 600 |  |
