The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
3X
GPU Power Excursions
Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards.
GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.
1
1 x 16-pin
VGA
Power Connector
2
3 x 8-pin
VGA
Power Connector
3
2 x 8-pin
VGA
Power Connector
4
1 x 8-pin
VGA
Power Connector

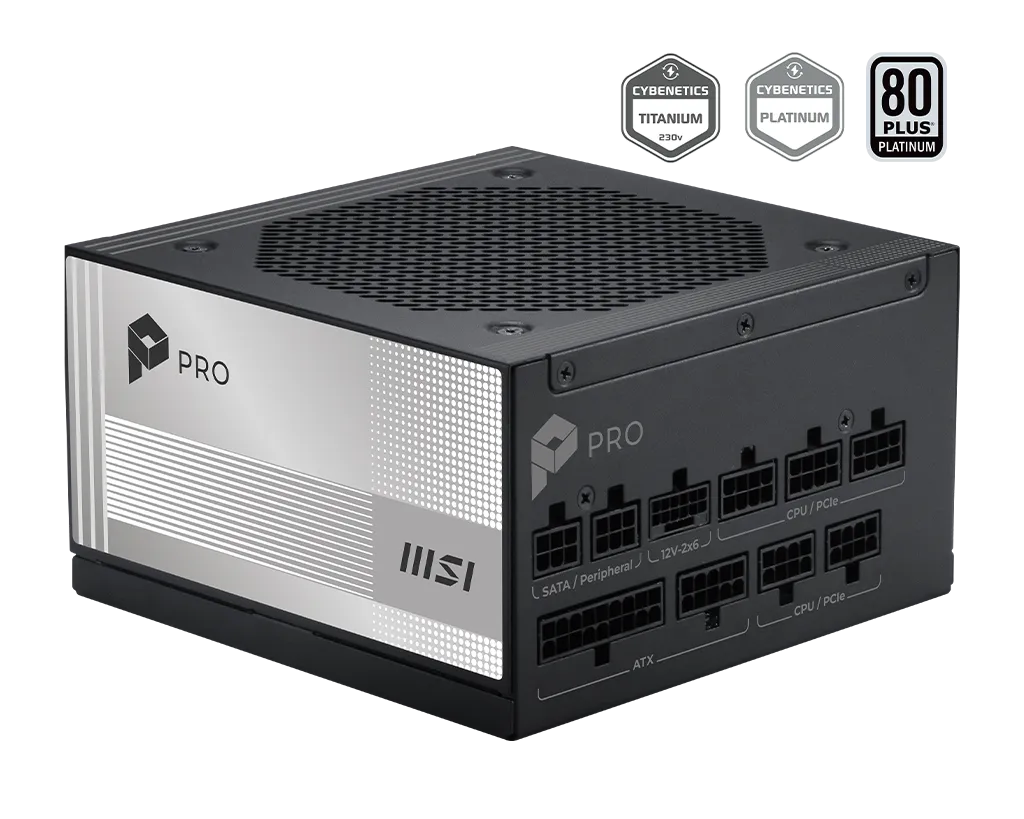

Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.
Embossed Jacket Modular Cable
Using premium materials to enhance the cable's flexibility and bendability, the sleek matt black design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.
Cable Organizer
The cable organizer to make organizing cables more convenient. Additionally, the cable manager's position can be adjusted freely as needed.
Copper Wire
High-density Cover
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
Alloy Copper Connector Terminals
The cable connectors are made of nickel-plated copper alloy terminals, effectively prevents oxidation, maintaining the terminal's conductivity and durability when there is a higher surge in current.
Protection Mechanisms
To make sure the entire system can operate safely and stably at all times, here comes with a number of protection mechanisms to give you the best peace of mind.
OCP
OTP
OPP
SCP
OVP
UVP
SIP
NLO
Surge Protection
This power supply features external voltage spike protection, making it a reliable choice for use in small-scale data centers where stability and safety are crucial.

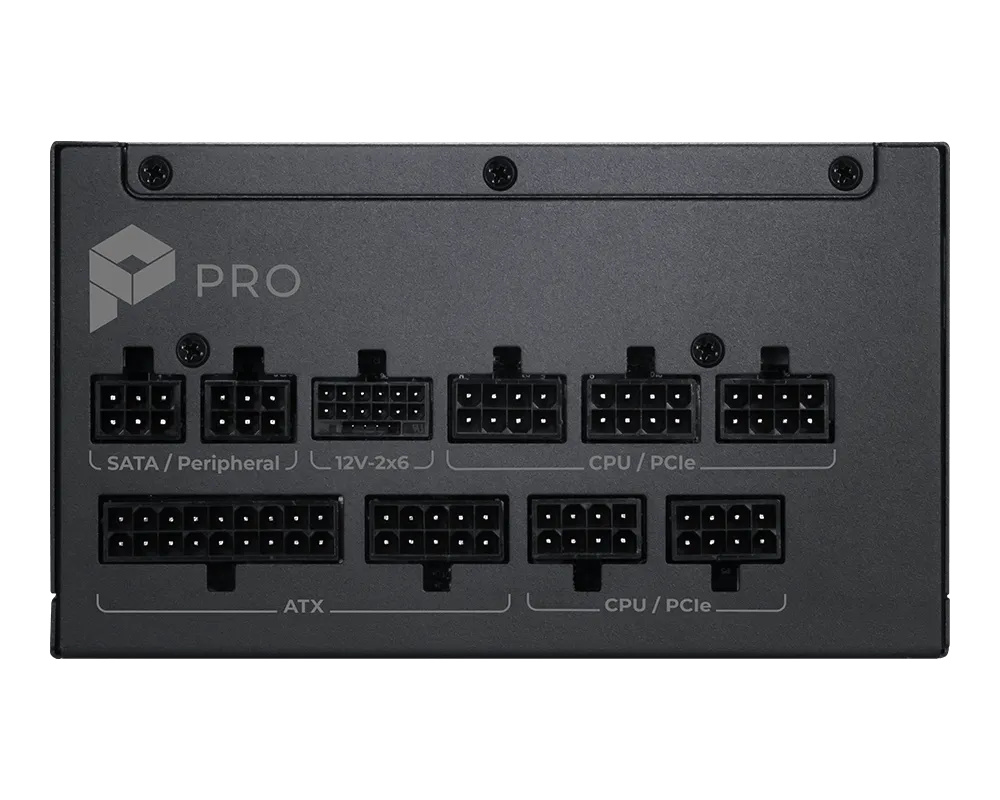

connectors
ATX
(20+4 PIN) x 1
EPS
(4+4 PIN) x 2
PCIe 5.1
(12+4 PIN) x 1
PCIe
(6+2 PIN) x 3
SATA
x 6
PERIPHERAL
x 2
cable
1 x
ATX
3 x
PCIe 8-pin
2 x
EPS
2 x
SATA / PERIPHERAL
1 x
12V-2x6
*Images are for reference for cable numbers only; appearance may differ from the actual product.

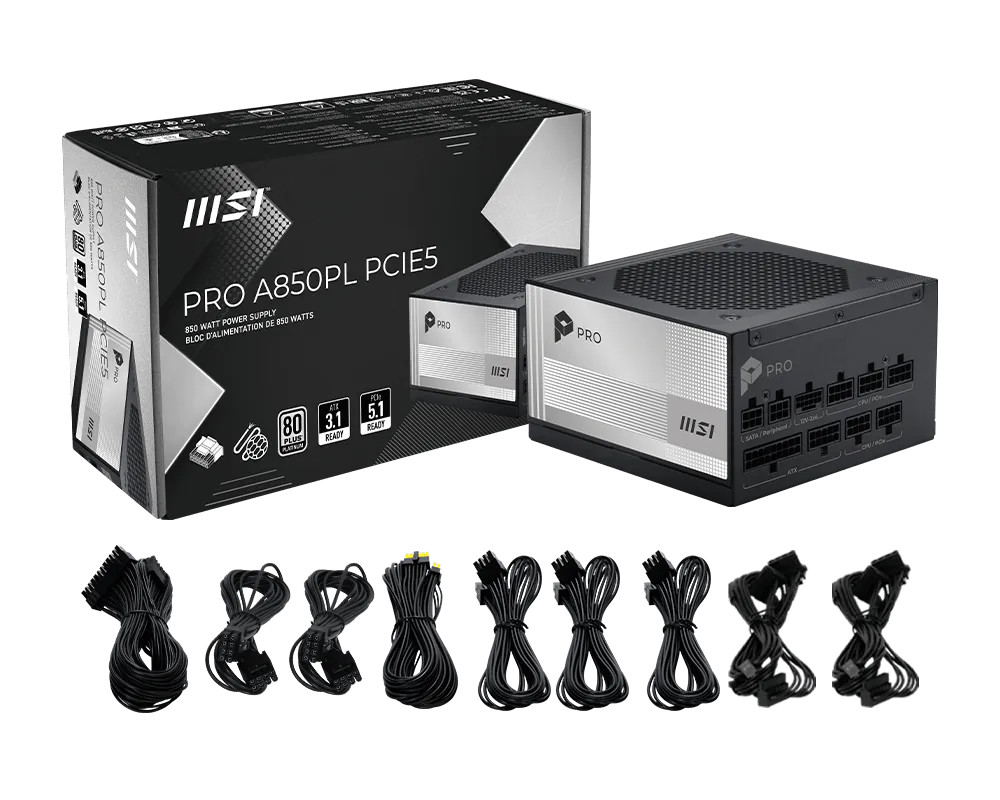

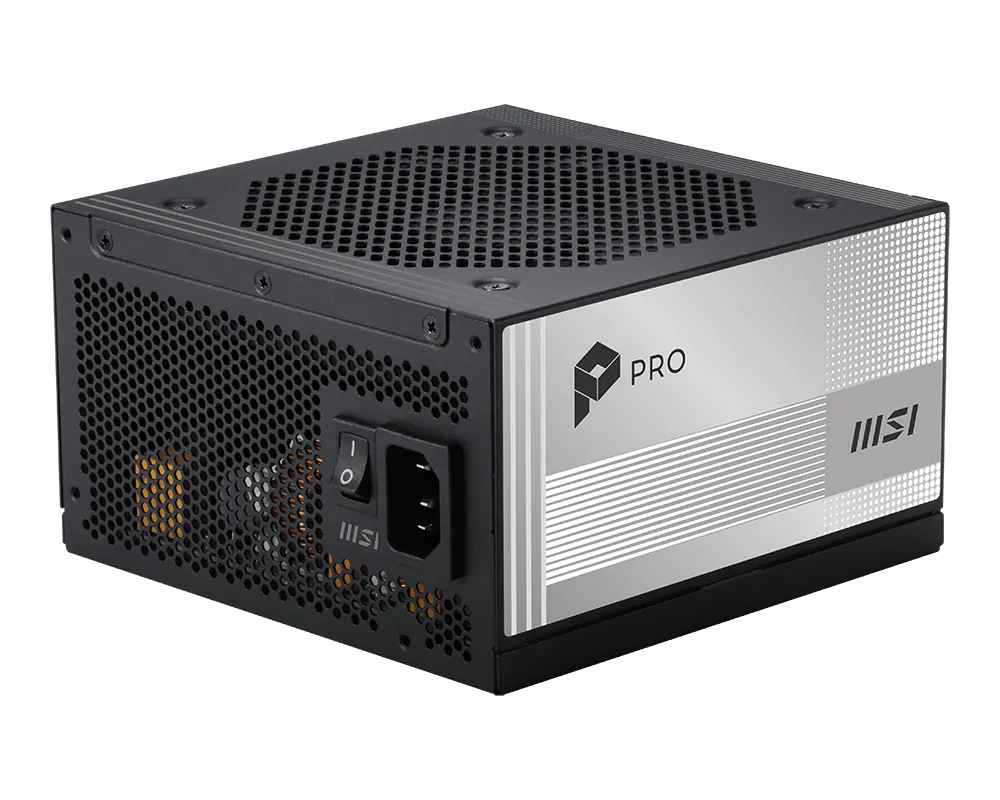

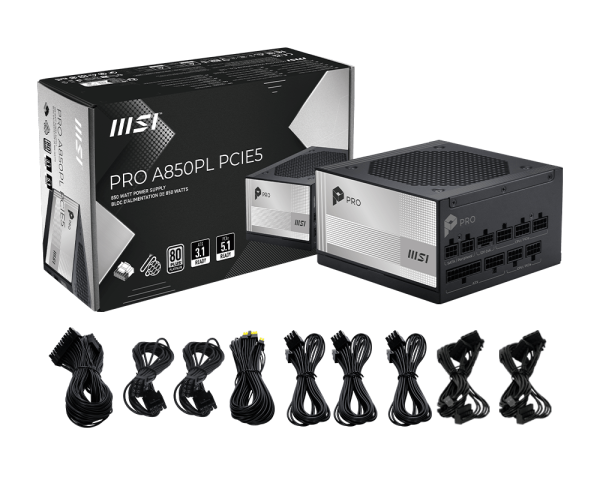

PRO A850PL PCIE5
- Dual-color 12V-2x6 Cable
- ATX 3.1 Ready
- PCIe 5.1 Ready (600W)
- 105°C Main Electrolytic Capacitor
- 80 PLUS Platinum Certification
- Embossed Jacket Certified Cables
- Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
