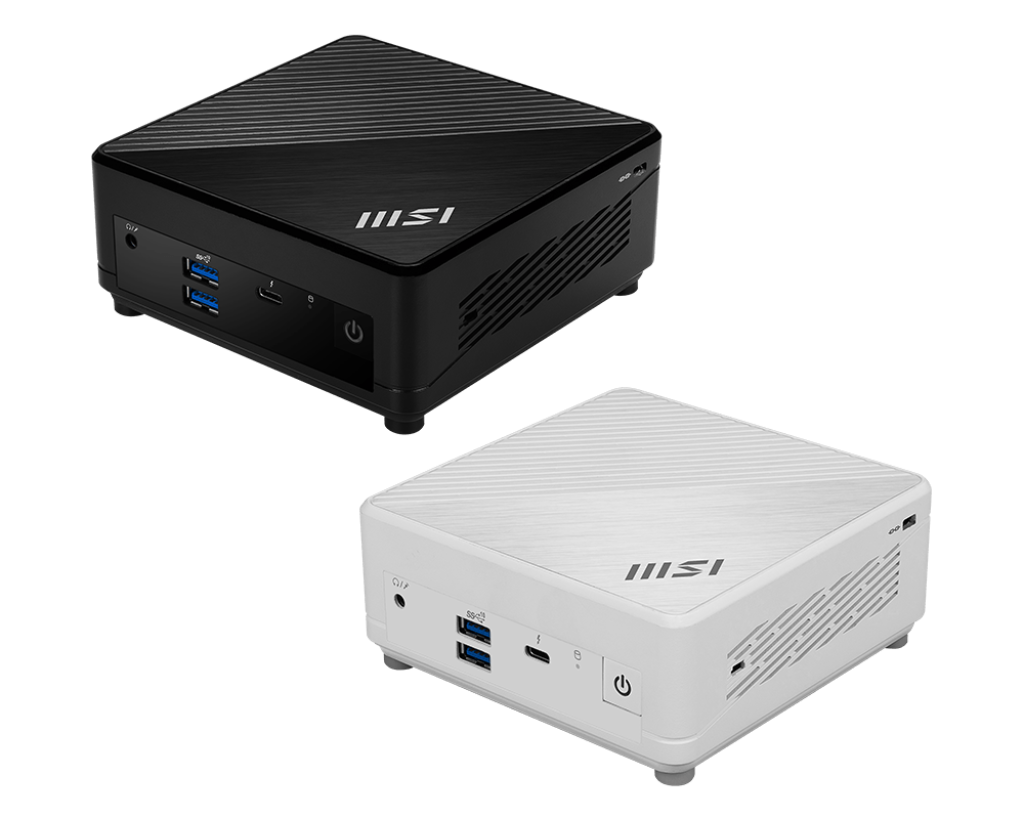

Cubi 5 1M
| Show the Differences |
Cubi 5 1MA
|
Cubi 5 1M
|
| OS |
Windows 11 Home Windows 11 Pro |
Windows 11 Home Windows 11 Pro |
|---|---|---|
| CPU |
Intel® Core™ 3 processor 100U (10M Cache, 1.20 GHz up to 4.70 GHz) Intel® Core™ 5 processor 120U (12M Cache, 1.40 GHz up to 5.00 GHz) Intel® Core™ 7 processor 150U (12M Cache, 1.80 GHz up to 5.40 GHz) |
Intel® Core™ 3 processor 100U (10M Cache, 1.20 GHz up to 4.70 GHz) Intel® Core™ 5 processor 120U (12M Cache, 1.40 GHz up to 5.00 GHz) Intel® Core™ 7 processor 150U (12M Cache, 1.80 GHz up to 5.40 GHz) |
| Chipset | Intel® SoC | Intel® SoC |
| Memory |
DDR4 3200 MHz
Max 64GB
SO-DIMM
2 Slots |
DDR5 5200 MHz
Max 64GB
SO-DIMM
2 Slots |
| Graphics | Intel HD Graphics (NA) | Intel HD Graphics (NA) |
| Storage |
1x 2.5" Drive Bays 1x M.2 SSD combo (NVMe PCIe Gen4 x4 / SATA) |
1x 2.5" Drive Bays 1x M.2 SSD combo (NVMe PCIe Gen4 x4 / SATA) |
| Cooler | Air | Air |
| I/O Ports (Front) |
1x Mic-in/Headphone-out combo 1x (ThunderBolt 4) Thunderbolt 2x USB 3.2 Gen 2 (10G) Type A |
1x Mic-in/Headphone-out combo 1x (ThunderBolt 4) Thunderbolt 2x USB 3.2 Gen 2 (10G) Type A |
| I/O Ports (Rear) |
2x RJ45 1x (v2.1) HDMI out 1x (v1.4) DP out 2x USB 3.2 Gen 2 (10G) Type A |
2x RJ45 1x (v2.1) HDMI out 1x (v1.4) DP out 2x USB 3.2 Gen 2 (10G) Type A |
| Lock type | Kensington Lock | Kensington Lock |
| Communication |
1x Realtek RTL8111H+1x Realtek RTL8125BG-CG
AzureWave AW-CB515NF Wi-Fi 5 + Bluetooth v5 Intel Wireless AX211 + Bluetooth v5.2 |
1x Realtek RTL8111H+1x Realtek RTL8125BG-CG
AzureWave AW-CB515NF Wi-Fi 5 + Bluetooth v5 Intel Wireless AX211 + Bluetooth v5.2 |
| Audio | Realtek ALC256 | Realtek ALC256 |
| Power Supply | 65W | 65W |
| Extensions |
1x SATA connectors |
1x SATA connectors |
| VESA | 100 x 100 mm | 100 x 100 mm |
| Product Dimension (WxDxH) |
124 x 124 x 53.7 (mm) |
124 x 124 x 53.7 (mm) |
| Size |
0.83L Liter |
0.83L Liter |
| W/O KB Weight (Net kg) | 0.59 | 0.59 |
| W/O KB Weight (Net lbs) | 1.3 | 1.3 |
| W/O KB Weight (Gross kg) | 1.33 | 1.33 |
| W/O KB Weight (Gross lbs) | 2.93 | 2.93 |
| Noise Level |
28 db Idle mode 38 db Full loading mode |
28 db Idle mode 38 db Full loading mode |
| Mechanical and Environmental | 0° C ~ 35° C ; -20° C ~ 60° C 0% ~ 85%;0% ~ 90% | 0° C ~ 35° C ; -20° C ~ 60° C 0% ~ 85%;0% ~ 90% |
