Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

mai mag coreliquid bg
msi mag coreliquid logo

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

Rotatable Blockhead

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN

The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

msi Core Liquid bump Motor

Pump Motor Resonance Elimination

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

High Thermal Dissipation

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

msi rotatable block head img
msi core liquid tubing

Evaporation Proof Tubing

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

icon

FOR CPU COOLER

icon

FOR WATERBLOCK COOLER

icon

FOR TOP SYSTEM FAN

icon

FOR FRONT SYSTEM FAN

icon

FOR REAR SYSTEM FAN

SYSTEM-FAN

MORE SILENCE THAN EXPECTED

MAG CORELIQUID 360RH's noise level is significantly lower than that of competitor's by 10%.

MAG CORELIQUID 360RH


44dB

OTHER BRAND


49dB


*Fan speed is 2000 RPM

msi liquid core 360 fan slience

Cooling You Can't Hear

For those who prefer a quieter environment, a bundled noise reducer cable changes the fans’ speed to produce less sound while still providing good airflow.

20% LESS NOISE
arrown icon

With noise reducer cable (fan speed 1500 RPM)


35db

Without noise reducer cable (fan speed 2000 RPM)


44db
msi liquid core fan

LIFE MADE EASIER WITH THE HUB

MAG CORELIQUID RH is equipped with MSI's exclusive multi-function Hub, which provides temperature sensing adjustments and intelligent ARGB lighting adjustments, providing you with a more convenient and concise method of operation.

msi liquid core 360 fan noTime

Features

  • Control the system fan curve through MSI Dragon Center to help with system cooling.
  • Control fan ARGB lighting effects through MSI Dragon Center or other brands' ARGB software.
  • Connect the LED switch cable or the Reset switch cable from the chassis to easily switch the ARGB control's method (using the system's software control or the built-in ARGB effect of the Hub) and fast switching of the fans' speed.
  • With the liquid cooler's built-in adapter cable, the ARGB cable and power cable are integrated and connected to the rear of the chassis, reducing the cable installation on the front motherboard and maintaining the simplicity of the front of the system.

Hub and Related Accessories

  • DC Jack to SATA power cable: provides power to the hub
  • USB Type C to USB 2.0 cable: connect the MSI Dragon Center software control between the motherboard and the hub
  • Thermal Sensor Cable: attach the cable's connector end to the surface of other parts within the case to sense the temperature of the parts, and use MSI Dragon Center or the built-in fan curve in the hub to control the speed of the fans connected to the Hub.
  • JRAINBOW cable: connect other brands motherboards and hubs, and control the fans' ARGB lighting through other brands' ARGB control software
  • HUB: main control component
msi liquid core 360 fan slience
msi liquid core 360 fan slience

Hub ports info

  • 4-pin system fan connectors x 4: connects with fan power cable
  • Thermal sensor connector: connects with thermal sensor cable
  • Reset/LED switch connector: connects with chassis' Reset switch cable or LED switch cable
  • Type-C USB connector: connects USB Type C to USB 2.0 cable
  • DC-in connector: connects DC Jack to SATA power cable
  • 3-pin ARGB-out LED connectors x 4: connects with fan ARGB cable
  • 3-pin motherboard ARGB connector: connects with JRAINBOW cable
  • Hub power button: the button that controls the hub's power when the hub is used alone or when the LED switch cable is not connected
  • LED sync button: the button that connects with the motherboard when the hub is used alone or when the LED switch cable is not connected
  • LED mode button: the button that switches the fans' ARGB lighting effects when the hub is used alone or when the LED switch cable is not connected
Mystic Light Sync:

After connecting RGB to the hub, you can sync all the MSI products together via Mystic Light and conveniently choose a lighting effect for all of them.

Fan Curve:

Control the fans' RPM via the hub with two options provided: smart and manual mode. Smart mode allows you to control the fan through the PWM fan ratio. Manual mode lets you directly control the speed however you want. You can even save and load your preferred fan speed settings for future convenience.

Hub Control:

Connect the system RGB lighting with the hub to give the hub direct control of the lighting effects.

EXTENSIVE COMPATIBILITY

Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

compatibility

Intel

LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066

AMD

AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3

Recommended Cooler For Your Build

MAG CORELIQUID 360RH

  • 10TH GEN INTEL SERIES CPU
  • i9-10980XE
  • i9-10940X
  • i9-10920X
  • i9-10900X
  • i9-10900K/KF
  • i7-10700K/KF
  • AMD Ryzen™ 3000 SERIES CPU
  • AMD Ryzen™ Threadripper™ 3990X
  • AMD Ryzen™ Threadripper™ 3970X
  • AMD Ryzen™ Threadripper™ 3960X
  • R9-3950X
  • R9-3900X/XT
  • R7-3800X/XT
  • AMD Ryzen™ 5000 SERIES CPU
  • R9-5950X
  • R9-5900X
  • R7-5800X

MAG CORELIQUID 240RH

  • 10TH GEN INTEL SERIES CPU
  • i9-10900/F
  • i7-10700/F
  • i5-10600K/KF
  • i5-10600
  • i5-10500
  • i5-10400/F
  • AMD Ryzen™ 3000 SERIES CPU
  • R7-3700X
  • R5-3600X/XT
  • R5-3600
  • AMD Ryzen™ 5000 SERIES CPU
  • R7-5800X
  • R5-5600X
msi rotatable block head img
msi core liquid

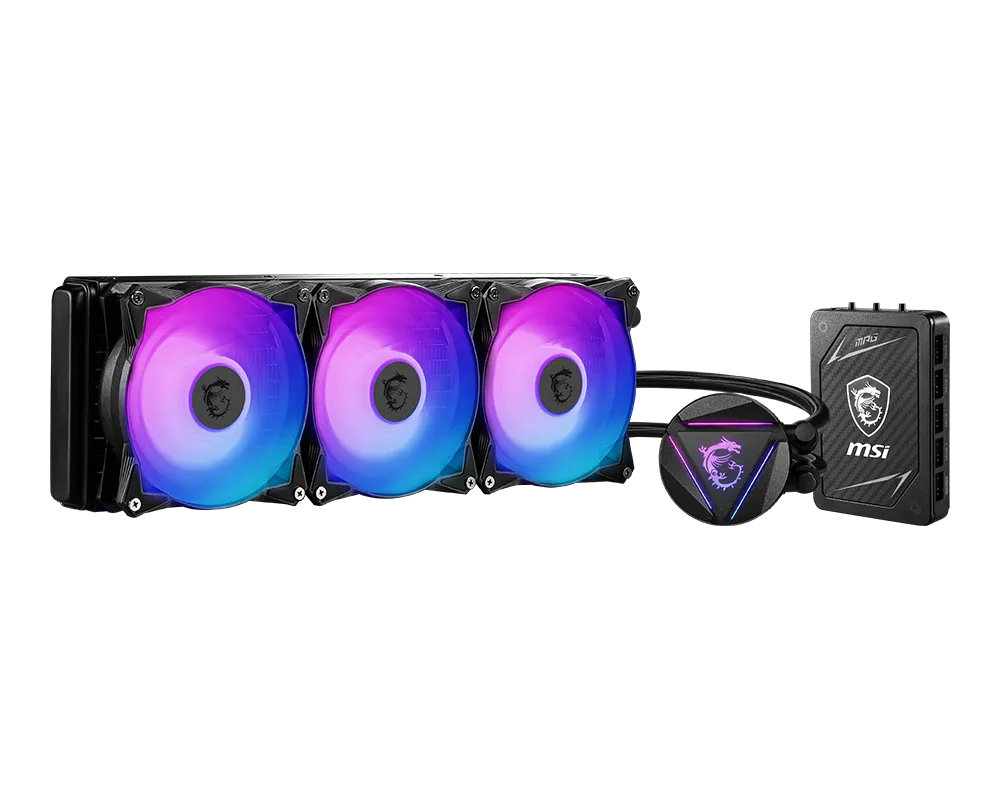

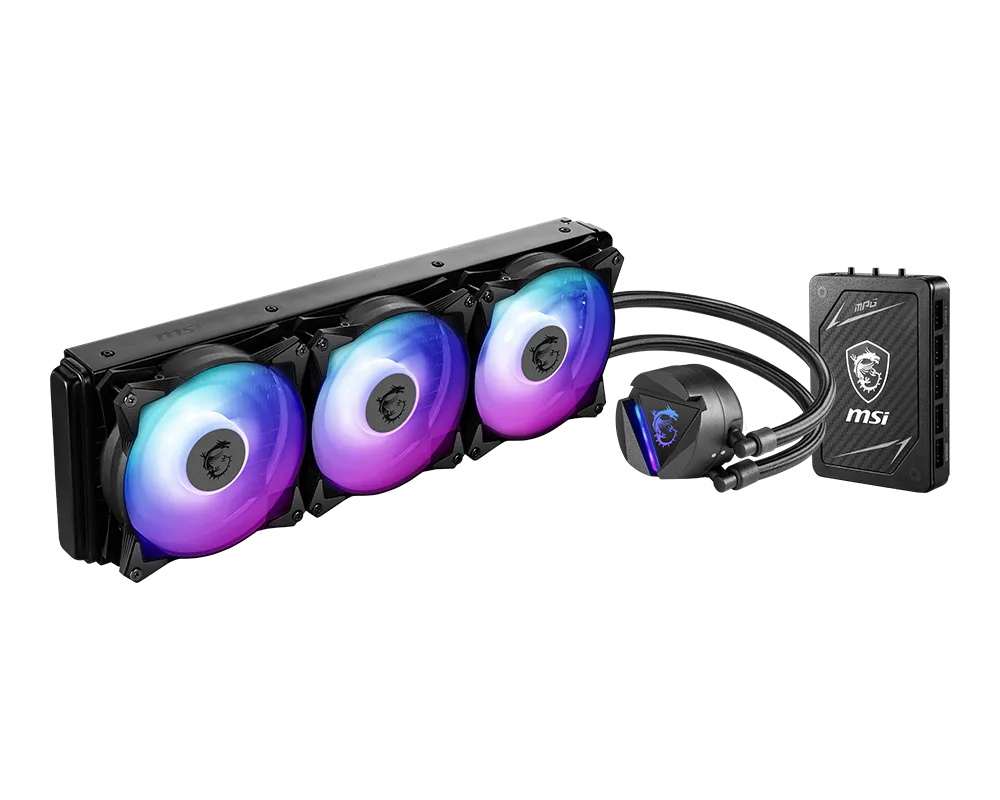

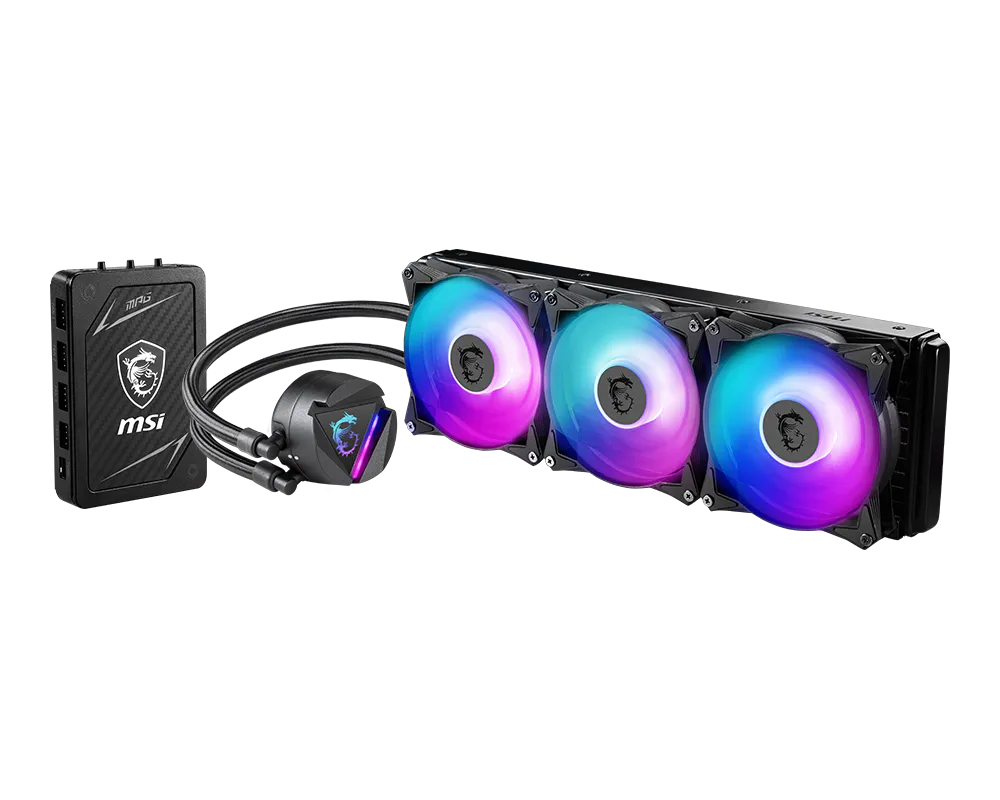

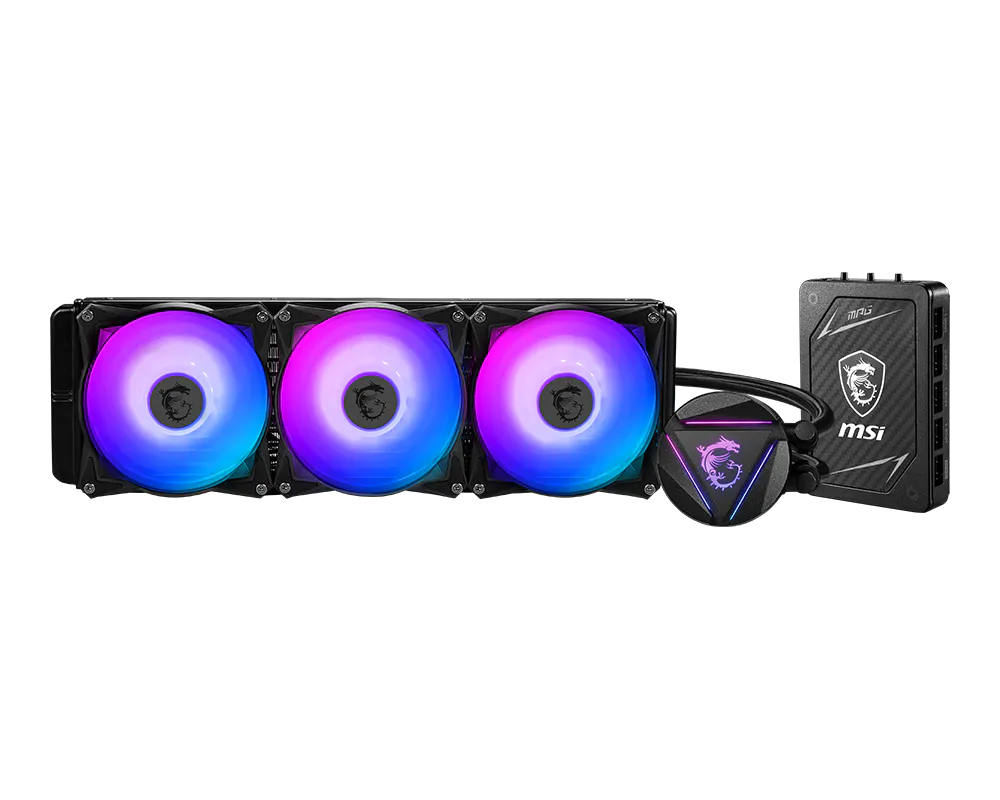

MAG CORELIQUID 360RH

CPU Socket

Intel
LGA 1150/1151/1155/1156/1200

LGA 1366/2011/2011-3/2066
AMD
AM4/FM2+/FM2/FM1/AM3+/AM2+/AM2

SocketTR4 / sTRX4/ SP3

Radiator

Dimensions
394 x 120 x27mm /15.5 X4.7X 1.26 inch
Water Cooling Pipe Length
400mm
Material
Aluminum

Fan

Fan Dimensions
120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Speed
500 ~ 2000 RPM
Fan Air Flow
21.63 ~ 78.73 CFM
Fan Noise Level
14.3 ~ 34.3 dBA
Fan Bearing Type
Two Ball Bearing
Fan Connector
4-Pin (PWM)
Fan Rated Voltage
12V DC
Fan Rated Current
0.15 A
Fan Power Consumption
1.8 W
Fan Lighting
ARGB

Pump

Pump Bearing Type
Ceramic Bearing
Pump Speed
4200 RPM
Pump Noise Level
18 dBA
Pump Connector
3-Pin
Pump Rated Voltage
12V DC
Pump Load Current
0.34 A
Pump Power Consumption
4.08 W

Hub

Dimensions
69.85 x 100 x 17.56 mm / 2.75 x 39.4 x 0.69 inches
Fan Power Port Type
4-Pin (PWM)
Number of Fan Power Ports
4
LED Port Type
3-Pin (ARGB)
Number of LED Ports
4
Controller Power Type
DC Jack to SATA Port
Control Button
Power button x 1
LED sync button x 1
LED switch mode button x 1
Cable
DC Jack to SATA power cable x 1
USB Type C to USB 2.0 cable x 1
JRAINBOW cable x 1
Thermal sensor cable x 1

MAG CORELIQUID 360RH

  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
  • A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
  • Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3
  • Comes with a hub that helps with mystic light sync, fan curve control, and direct control of the lighting.



;
