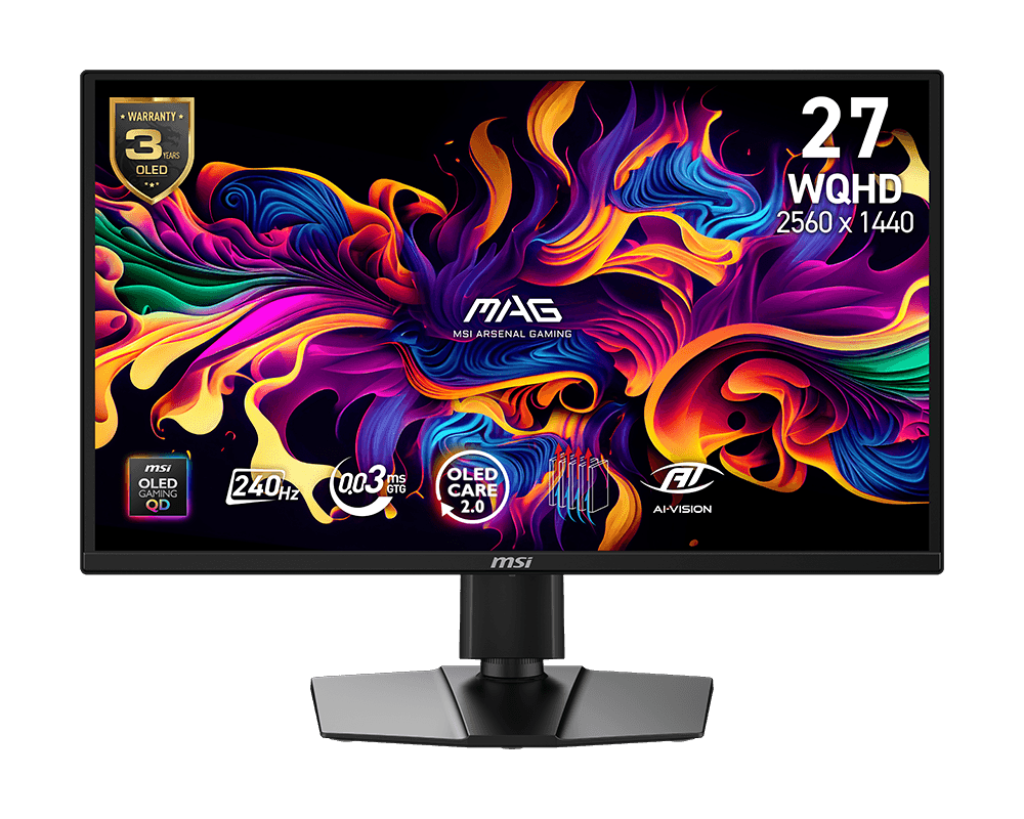

MAG 272QP QD-OLED X24

Panel Size
Active Display Area (mm)
Curvature
Panel Type
Panel Resolution
Pixel Pitch (H x V)
Aspect Ratio
Brightness (nits)
Contrast Ratio
Signal Frequency
ACTIVATED RANGE
Refresh Rate
Response time
DYNAMIC REFRESH RATE TECHNOLOGY
HDR Support
Video ports
Audio ports
Viewing Angle
Adobe RGB / DCI-P3 / sRGB
Surface Treatment
Display Colors
Console Mode
Power Type
Power Input
Adjustment (Tilt)
Adjustment (Swivel)
Adjustment (Pivot)
Adjustment (Height)
Kensington Lock
VESA Mounting
Dimension with Stand (W x D x H)
Dimension without Stand (W x D x H)
Weight (NW / GW)
Carton Dimension (W X D X H)
Accessories
Note

Panel Size

26.5"

Active Display Area (mm)

590.42 (H) x 333.72 (V)

Curvature

Flat

Panel Type

QD-OLED

Panel Resolution

2560 x 1440 (WQHD)

Pixel Pitch (H x V)

0.2292 (H) x 0.2292 (V)

Aspect Ratio

16:9

Brightness (nits)

SDR: 200
HDR: 400 (Typ.)

Contrast Ratio

1500000:1 (Typ.)

Signal Frequency

30~390 KHz(H) / 48~240 Hz(V)

ACTIVATED RANGE

48~240Hz

Refresh Rate

240Hz

Response time

0.03ms (GtG)

DYNAMIC REFRESH RATE TECHNOLOGY

Adaptive-Sync

HDR Support

HDR Ready

Video ports

2x HDMI™ 2.1 (FRL 10G) (WQHD@240Hz)
1x DisplayPort 1.4a (HBR3)
1X Type-C (DP alt.) w/ 15W PD

Audio ports

1x Headphone-out

Viewing Angle

178°(H) / 178°(V)

Adobe RGB / DCI-P3 / sRGB

98% / 99% / 138% (CIE1976 Standard)

Surface Treatment

Anti-Reflection

Display Colors

1.07B, 10 bits

Console Mode

Supported Resolution & Refresh Rate:
1080p: 60Hz and 120Hz
1440p: 60Hz and 120Hz

HDMI™ CEC: Supported / Non Supported
VRR: Xbox only / PS5 and Xbox Supported

Power Type

Internal Power Board

Power Input

100~240V, 50/60Hz

Adjustment (Tilt)

-5° ~ 20°

Adjustment (Swivel)

-30° ~ 30°

Adjustment (Pivot)

-90° ~ 90°

Adjustment (Height)

0 ~ 110 mm

Kensington Lock

Yes

VESA Mounting

100 x 100 mm

Dimension with Stand (W x D x H)

611.6 x 533 x 241.9mm
(24 x 20.9 x 9.5 inch)

Dimension without Stand (W x D x H)

611.6 x 357.7 x 55.76mm
(24 x 14 x 2.19 inch)

Weight (NW / GW)

5.7 kg (12.5 lbs) / 9.4 kg (20.7 lbs)

Carton Dimension (W X D X H)

820 x 169 x 513mm
(32.2 x 6.6 x 20.1 inch)

Accessories

1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x Quick Guide, 4x VESA Wall Mount Screw, 1x Fiber Cloth, 1x Color Report

Note

HDMI™: 2560 x 1440 (Up to 240Hz)
DisplayPort: 2560 x 1440 (Up to 240Hz)
Type-C: 2560 x 1440 (Up to 240Hz)
Support: HDMI™ CEC, PIP/PBP; Non Support: KVM
