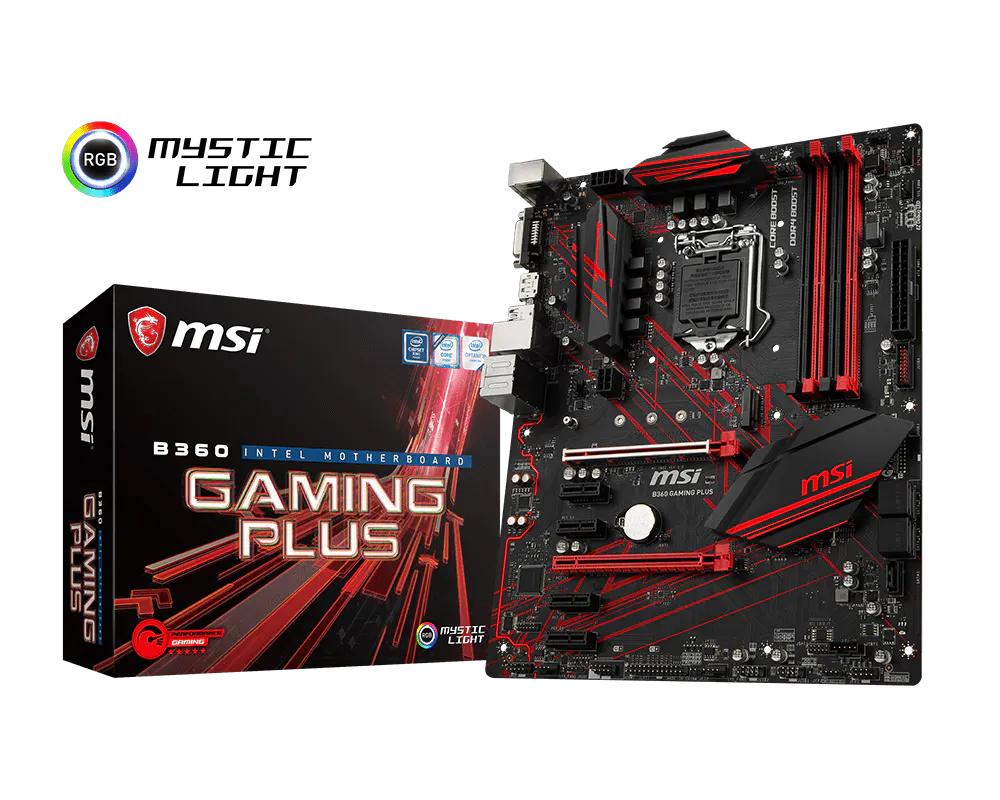

B360 GAMING PLUS

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® B360 Chipset

Memory

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz¹
• Dual channel memory architecture
• Supports non-ECC UDIMM memorye
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

Slots

• 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
• 4 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x DisplayPort 1.2, supports a maximum resolution of 4096x2304 @ 60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

*No Display support when using the Processor model with suffix “F”

Storage

Intel^® B360 Chipset

• 5 x SATA 6Gb/s ports¹
• 1 x M.2 slots (Key M)
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280/ 22110 storage devices
  • Supports Intel^® Optane™ Memory Ready²

1. The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
2. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel^® B360 Chipset

• 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Dual Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Intel I219-V Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 6-pin ATX PCIe power connector
• 5 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connectors (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x Series port connector
• 1 x Parallel port connector
• 1 x 5050 RGB LED strip 12V connector
• 1 x TPM module connector
• 1 x Thunderbolt Add-on Card Connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

Back panel ports

Dimensions

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
