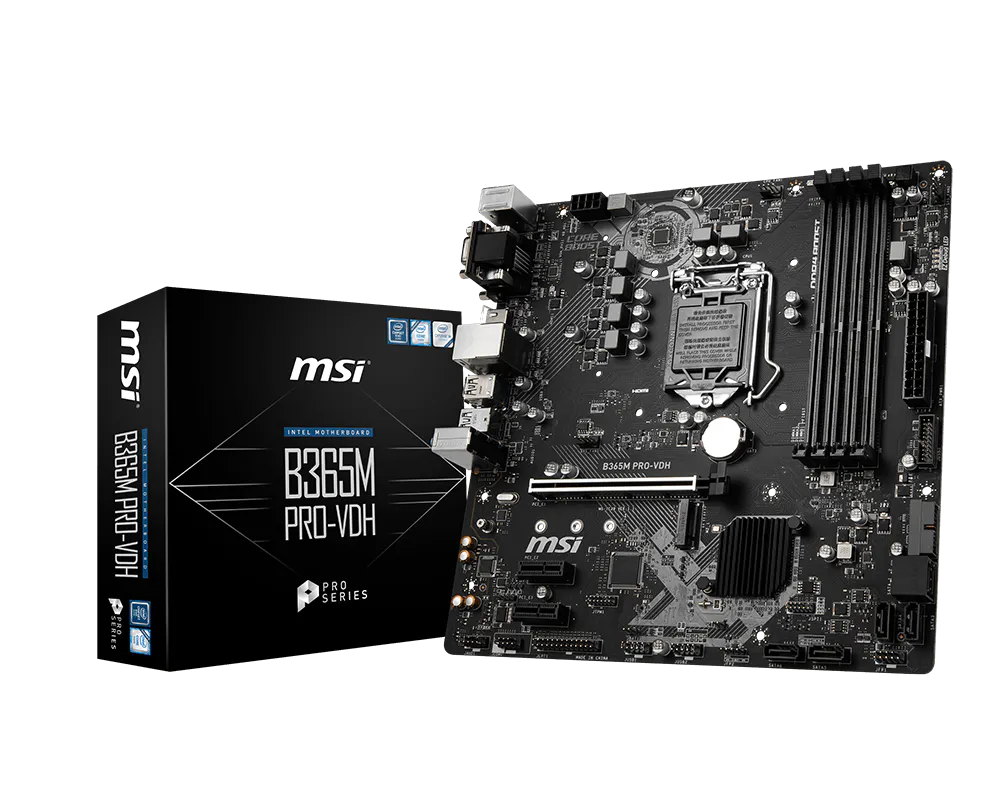

INTEL B365 MOTHERBOARDS B365M PRO-VDH

B365M PRO-VDH

Socket
CPU (Max Support)
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
M.2 Slot
RAID
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Parallel Port(Front)
Audio ports (Rear)
DVI-D
VGA
HDMI
DirectX
Form Factor
Operating System

Socket

1151

CPU (Max Support)

Chipset

Intel® B365 Chipset

DDR4 Memory

2666/ 2400/ 2133

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3

PCI-E x1

SATAIII

M.2 Slot

RAID

0/1/5/10

TPM (header)

1x Realtek RTL8111H

USB 3.1 ports (Front)

4(Gen1, Type A)

USB 3.1 ports (Rear)

1(Gen1, Type C), 3(Gen1, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Serial ports(Front)

Parallel Port(Front)

Audio ports (Rear)

Realtek® ALC892 Codec

DVI-D

HDMI

DirectX

Form Factor

Micro-ATX

Operating System

Support for Windows® 10 64-bit

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 9th/8th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® B365 Chipset

Memory

4x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer to Compatibility for more information on compatible memory

See supported memory

Slots

1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

Storage

Intel^® B365 Chipset

6 x SATA 6Gb/s ports¹
1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Intel^® Optane™ Memory Ready²

The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® B365 Chipset

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel^® B365 Chipset

8 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 4 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek^® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek RTL8111H Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connector (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
1 x Parallel port connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x 4-pin RGB LED connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

Back panel ports

Mouse Port
VGA Port
HDMI Port
LAN Port
USB 3.1 Gen1
USB 3.1 Gen1 Type A
Keyboard Port
DVI-D Port
USB 2.0 Ports
USB 3.1 Gen1 Type C
HD Audio Connectors

Dimensions

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
