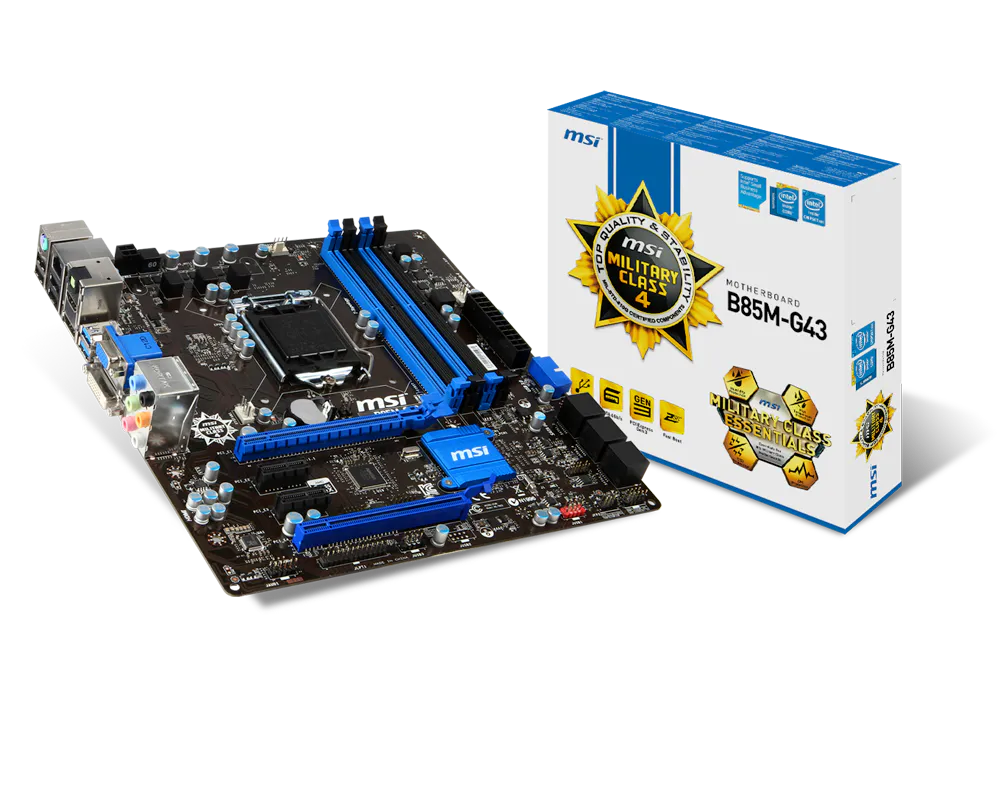

INTEL B85 EXPRESS MOTHERBOARDS B85M-G43

B85M-G43

Socket
CPU (Max Support)
Baseclock/Hyper Transport
Chipset
DDR3 Memory
DDR3L Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
SATAII
TPM (header)
LAN
USB 3.0 ports (Front)
USB 3.0 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Audio ports (Rear)
DisplayPort
VGA
HDMI
DVI
VGA Max Share Memory (MB)
DirectX
Form Factor
CrossFire

Socket

1150

CPU (Max Support)

Baseclock/Hyper Transport

100MHz

Chipset

Intel® B85 Express

DDR3 Memory

DDR3 1066/1333/1600 MHz

DDR3L Memory

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3 (16), Gen2 (4)

PCI-E x1

SATAIII

SATAII

TPM (header)

10/100/1000*1

USB 3.0 ports (Front)

USB 3.0 ports (Rear)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Audio ports (Rear)

6+Optical SPDIF-out

DisplayPort

HDMI

VGA Max Share Memory (MB)

1024

DirectX

DX11

Form Factor

M-ATX

CrossFire

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

CPU

• Supports 4th Generation Intel^® Core™ i7 / Core™ i5 / Core™ i3 / Pentium^®/ Celeron^® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® B85 Express Chipset

Main Memory

• Support four DDR3 DIMMs 1066/1333/1600 DRAM, 32GB Max
• Support Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 2.0 x16 slot
- PCI_E4 supports up to PCIe 2.0 x4 speed
• 2 x PCIe 2.0 x1 slots

On-Board SATA

• SATAIII controller integrated in Intel^®B85 chipset
- Up to 6Gb/s transfer speed.
- Supports four SATAIII ports (SATA1~4) by B85

• SATAII controller integrated in Intel^® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA5~6) by B85

- Supports Intel Smart Connect Technology*
*Supports Intel Core processors on Windows 7 and Windows 8.

USB

• Intel® B85 Express Chipset
- 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
- 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Chipset integrated by Realtek^® ALC892
- Flexible 7-channel audio with jack sensing
- Supports S/PDIF output

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek^® RTL8111G Gigabit LAN controller

Internal I/O Connectors

- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATAIII connectors
- 2 x SATAII connectors
- 2 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Trusted Platform Module (TPM) header
- 1 x Serial port connector
- 1 x Parallel Port connector

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x Optical S/PDIF-out connector
- 1 x LAN (RJ45) port
- 6 x audio jacks
- 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @24Hz, 24bpp/ 2560x1600 @60Hz, 24bpp/1920x1080 @60Hz, 36bpp
- 1 x DisplayPort, supporting a maximum resolution of 4096x2160 @24Hz, 24bpp/ 3840x2160 @60Hz, 24bpp

This platform supports dual-display and triple-display function

	Extend mode (Extend the desktop to the second and third monitor)	Clone mode (Monitors have the same screen)
HDMI+DisplayPort	◯	◯
HDMI+VGA	◯	◯
HDMI+DVI	◯	◯
DisplayPort+VGA	◯	◯
DisplayPort+DVI	◯	◯
VGA+DVI	◯	◯
HDMI+DisplayPort+VGA	◯	◯
HDMI+DisplayPort+DVI	◯	◯
DisplayPort+VGA+DVI	◯	◯
HDMI+VGA+DVI	◯	◯

BIOS

• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension

• 24.4cm(L) x 24.4cm(W) Micro-ATX Form Factor

Mounting

• 7 mounting holes.
