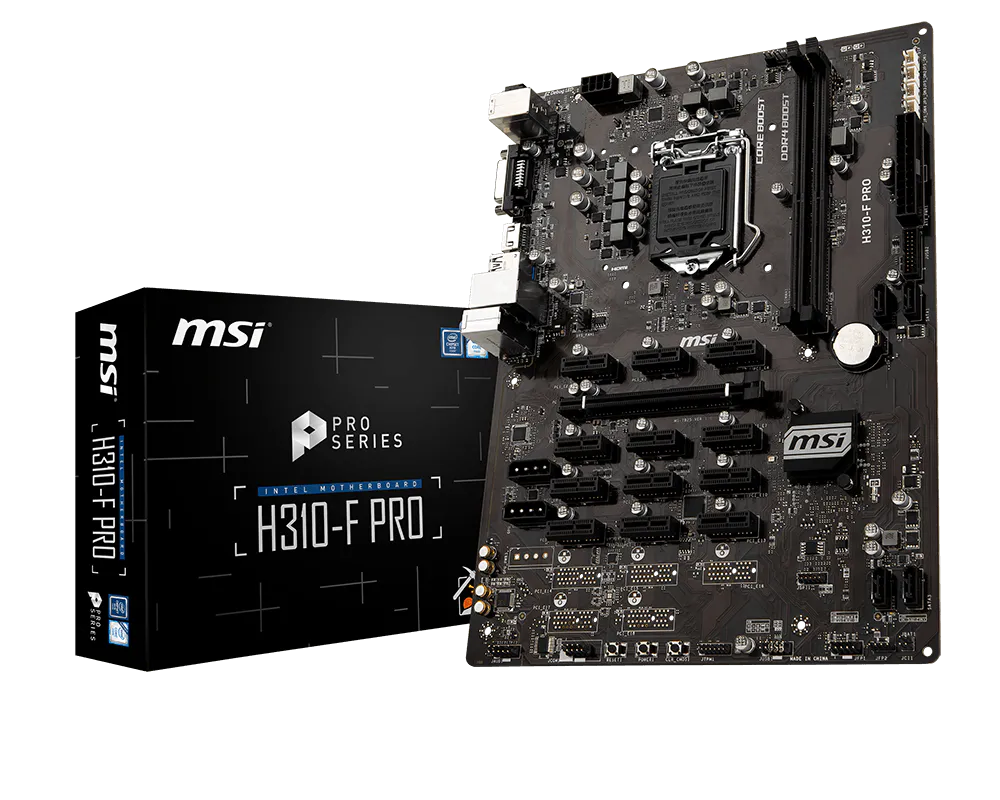

INTEL H310 MOTHERBOARDS H310-F PRO

H310-F PRO

Socket
CPU (Max Support)
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Audio ports (Rear)
DVI-D
HDMI
DirectX
Form Factor
Operating System

Socket

1151

CPU (Max Support)

Chipset

Intel® H310 Chipset

DDR4 Memory

2666/ 2400/ 2133 MHz

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3

PCI-E x1

TPM (header)

10/100/1000*1

USB 3.1 ports (Front)

2(Gen1, Type A)

USB 3.1 ports (Rear)

2(Gen1, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Serial ports(Front)

Audio ports (Rear)

Realtek® ALC887 Codec

DVI-D

HDMI

DirectX

Form Factor

ATX

Operating System

Support for Windows® 10 64-bit

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® H310 Chipset

Memory

2x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Supports non-ECC, un-buffered memory
Supports Dual-Channel mode
Supports Intel^® Extreme Memory Profile (XMP)

See supported memory

Slots

1x PCIe 3.0 x16 slot
12x PCIe 2.0 x1 slots

Onboard Graphics

1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1x HDMI^™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

*No Display support when using the Processor model with suffix “F”

Storage

Intel^® H310 Chipset

4x SATA 6Gb/s ports

USB

Intel^® H310 Chipset

4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)

Audio

Realtek^® ALC887 Codec

7.1-Channel High Definition Audio

LAN

1x Intel I219-V Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
2x 4-pin PCIe power connectors
4x 2-pin PS_ON connectors
4x SATA 6Gb/s connectors
1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper
1x Power button
1x Reset button
1x Clear CMOS button

Back panel ports

4x Debug LEDs
1x PS/2 keyboard/ mouse combo port
1x DVI-D port
1x HDMI port
2x USB 3.1 Gen1 Type-A ports
1x LAN (RJ45) port
2x USB 2.0 port
2x USB 2.0 port
3x Audio Jacks

Dimensions

12.0 in. x 8.9 in. (30.5 cm x 22.5 cm)
ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
