INTEL H310 MOTHERBOARDS H310M GAMING PLUS

H310M GAMING PLUS

Socket
CPU (Max Support)
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
M.2 Slot
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Audio ports (Rear)
DVI-D
HDMI
DirectX
Form Factor
Operating System

Socket

1151

CPU (Max Support)

Chipset

Intel® H310 Chipset

DDR4 Memory

2666/ 2400/ 2133 MHz

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3

PCI-E x1

SATAIII

M.2 Slot

TPM (header)

10/100/1000*1

USB 3.1 ports (Front)

2(Gen1, Type A)

USB 3.1 ports (Rear)

2(Gen1, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Serial ports(Front)

Audio ports (Rear)

Realtek® ALC887 Codec

DVI-D

HDMI

DirectX

Form Factor

M-ATX

Operating System

Support for Windows® 10 64-bit

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® H310 Chipset

Memory

2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory

See supported memory

Slots

1 x PCIe 3.0 x16 slots
2 x PCIe 2.0 x1 slots

Onboard Graphics

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

*No Display support when using the Processor model with suffix “F”

Storage

Intel^® H310 Chipset

4 x SATA 6Gb/s ports
1 x M.2 slots (Key M)
- Support up to PCIe 2.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices

USB

Intel^® H310 Chipset

4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
6x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

Audio

Dual Realtek^® ALC887 Codec

7.1-Channel High Definition Audio

LAN

1 x Intel I219-V Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x LED connector
1 x Clear CMOS jumper

Back panel ports

PS/2 Combo Port
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI
USB 3.1 Gen1 Port
USB 2.0 Port

Dimensions

9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows^® 10 64-bit

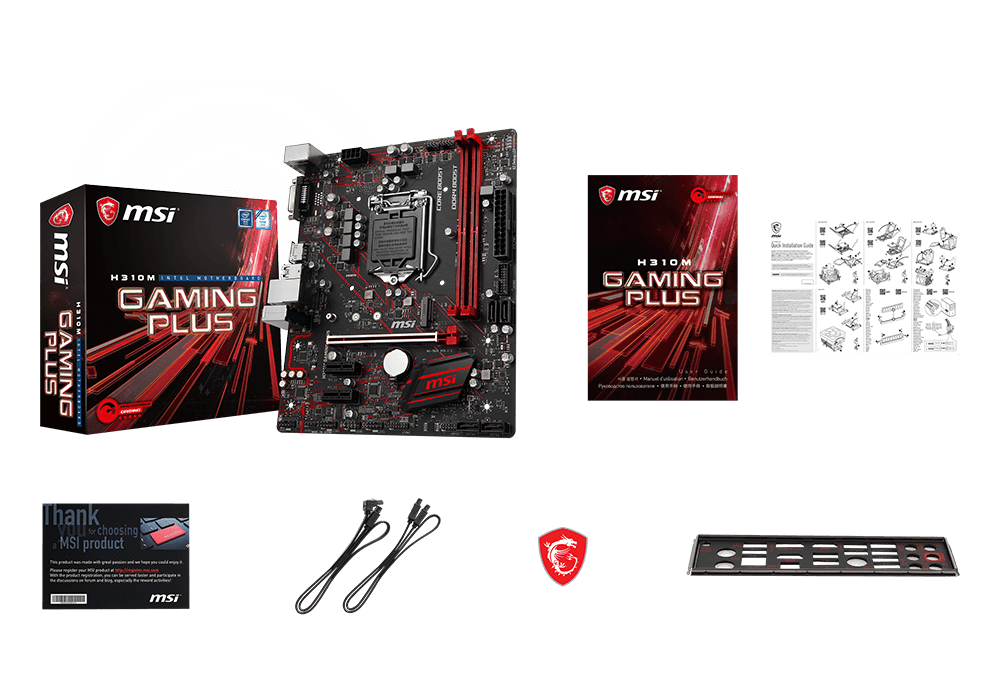

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® H310 Chipset

Memory

2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory

See supported memory

Slots

1 x PCIe 3.0 x16 slots
2 x PCIe 2.0 x1 slots

Onboard Graphics

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

*No Display support when using the Processor model with suffix “F”

Storage

Intel^® H310 Chipset

4 x SATA 6Gb/s ports
1 x M.2 slots (Key M)
- Support up to PCIe 2.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices

USB

Intel^® H310 Chipset

4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
6x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

Audio

Dual Realtek^® ALC887 Codec

7.1-Channel High Definition Audio

LAN

1 x Intel I219-V Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x LED connector
1 x Clear CMOS jumper

Back panel ports

PS/2 Combo Port
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI
USB 3.1 Gen1 Port
USB 2.0 Port

Dimensions

9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
