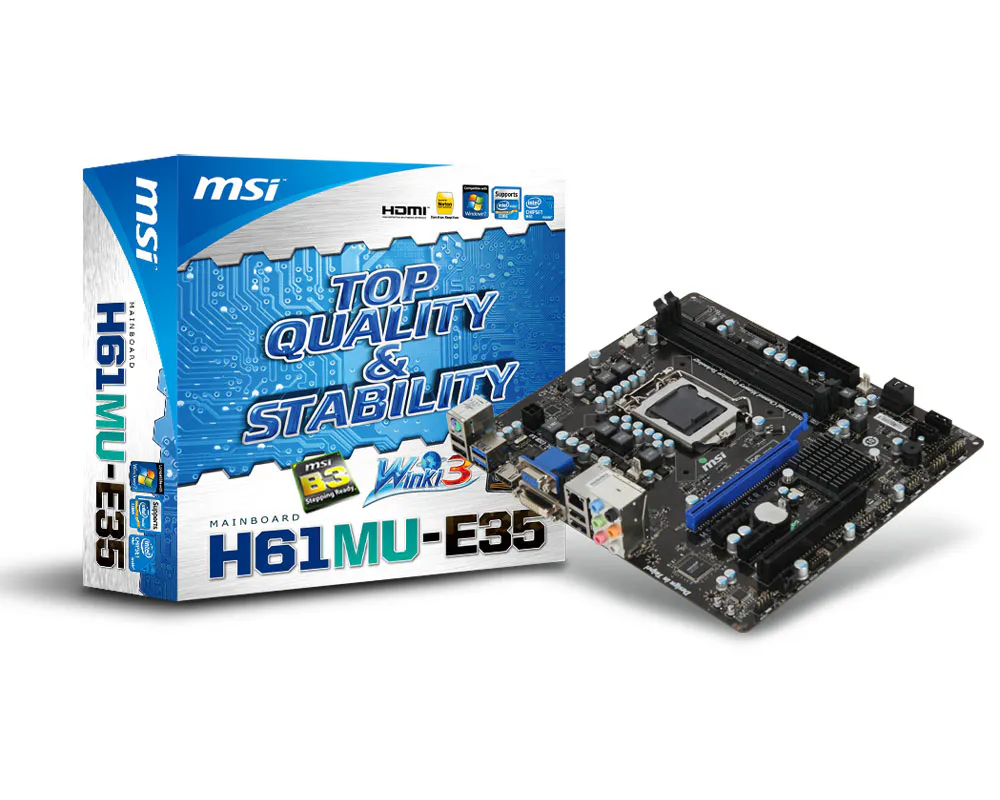

Specification H61MU-E35 (B3)

H61MU-E35 (B3)

CPU (Max Support)
Socket
Baseclock/Hyper Transport
Chipset
DDR3 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
PCI
SATAII
TPM (header)
LAN
USB 3.0 ports (Rear)
USB 2.0 ports (Rear)
Audio ports (Rear)
VGA
HDMI
DVI
VGA Max Share Memory (MB)
DirectX
Form Factor

CPU (Max Support)

i3/i5/i7

Socket

1155

Baseclock/Hyper Transport

100MHz

Chipset

Intel® H61 (B3)

DDR3 Memory

DDR3 1066/1333/1600* (*DDR3-1600 MHz is only supported with Intel® Ivy Bridge processors)

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen2 (1x16)

PCI-E x1

SATAII

TPM (header)

10/100/1000*1

USB 3.0 ports (Rear)

USB 2.0 ports (Rear)

Audio ports (Rear)

HDMI

VGA Max Share Memory (MB)

1759

DirectX

DX10.1

Form Factor

M-ATX

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

CPU

• Supports Intel® Sandy Bridge processors in LGA1155 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® H61 (B3) Chipset

Main Memory

• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600* DRAM, 16GB Max
- Supports Dual channel mode
*DDR3-1600 MHz is only supported with Intel® Ivy Bridge processors

Slots

• 1 PCI Express gen2 x16 slot
• 2 PCI Express gen2 x1 slots
• 1 PCI slot, support 3.3V/ 5V PCI bus Interface

On-Board SATA

• SATAII controller integrated in Intel® H61 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA1~4) by H61 (B3) PCH

USB 3.0

• 2 USB 3.0 ports by NEC® uPD720200F1

Audio

• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connectors
- 4 x Serial ATAII connectors
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector

Back Panel I/O Ports

- 1 x PS/2 Mouse/Keyboard port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x HDMI port
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack

MSI Reminds You...
• HDMI, VGA, DVI ports can only work with CPUs with GPUs core inside.

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 24.5cm(L) x 21.5cm(W) M-ATX Form Factor

Mounting

• 6 mounting holes.
