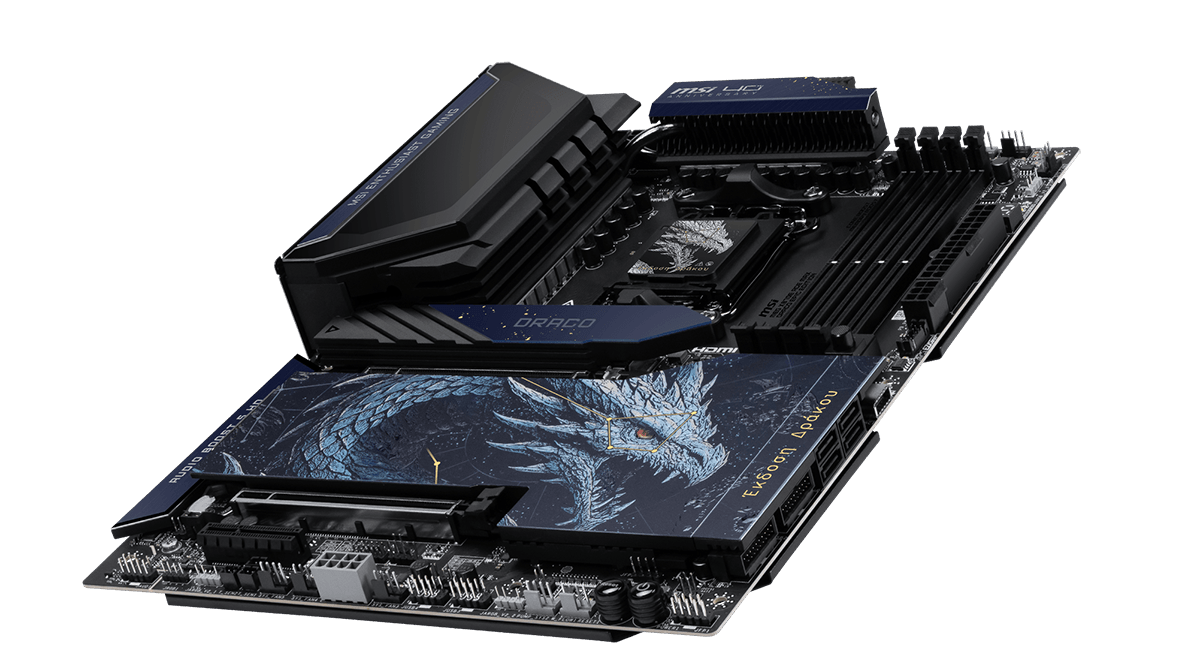

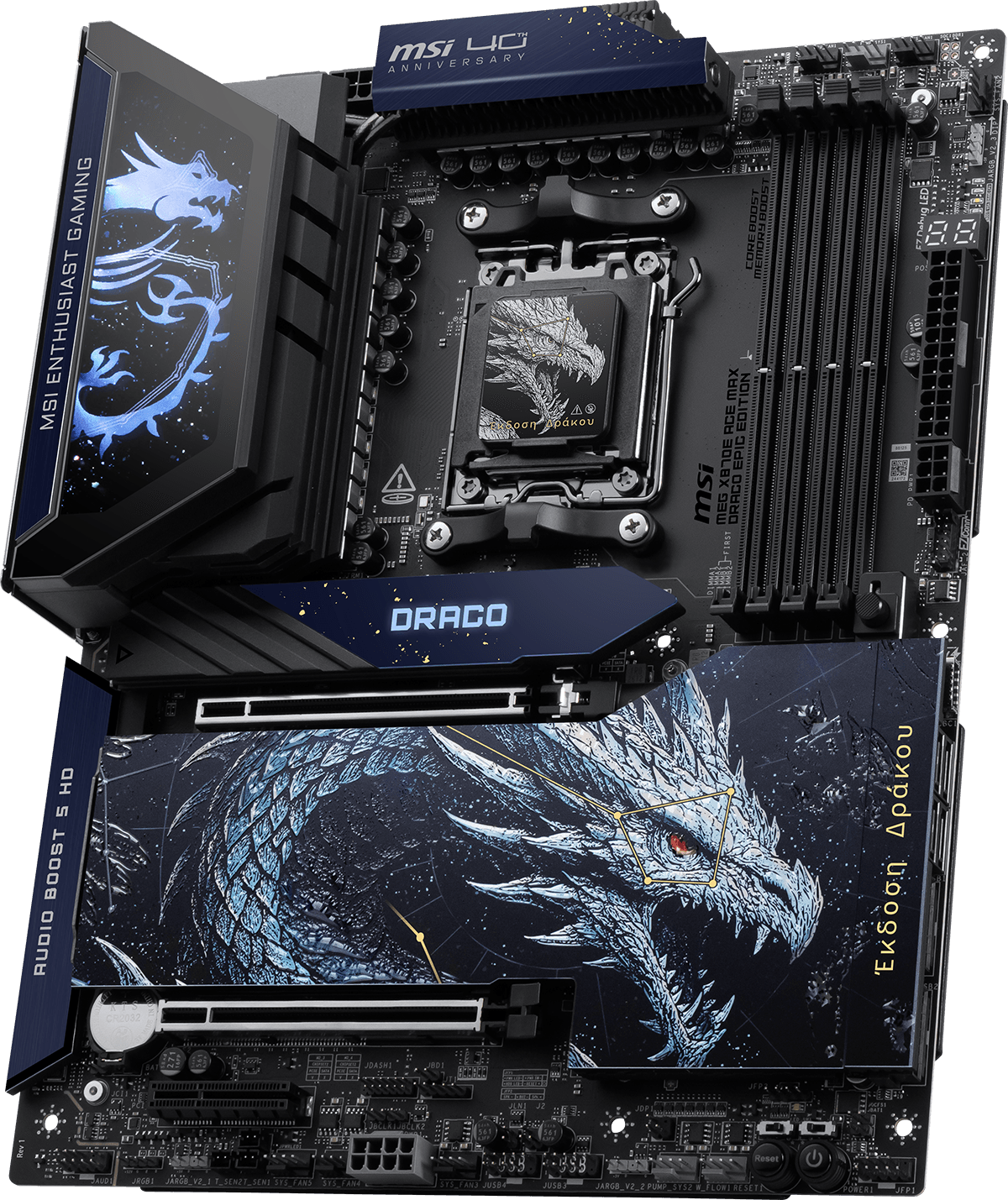

MEG X870E ACE MAX DRACO EPIC EDITION - rgb

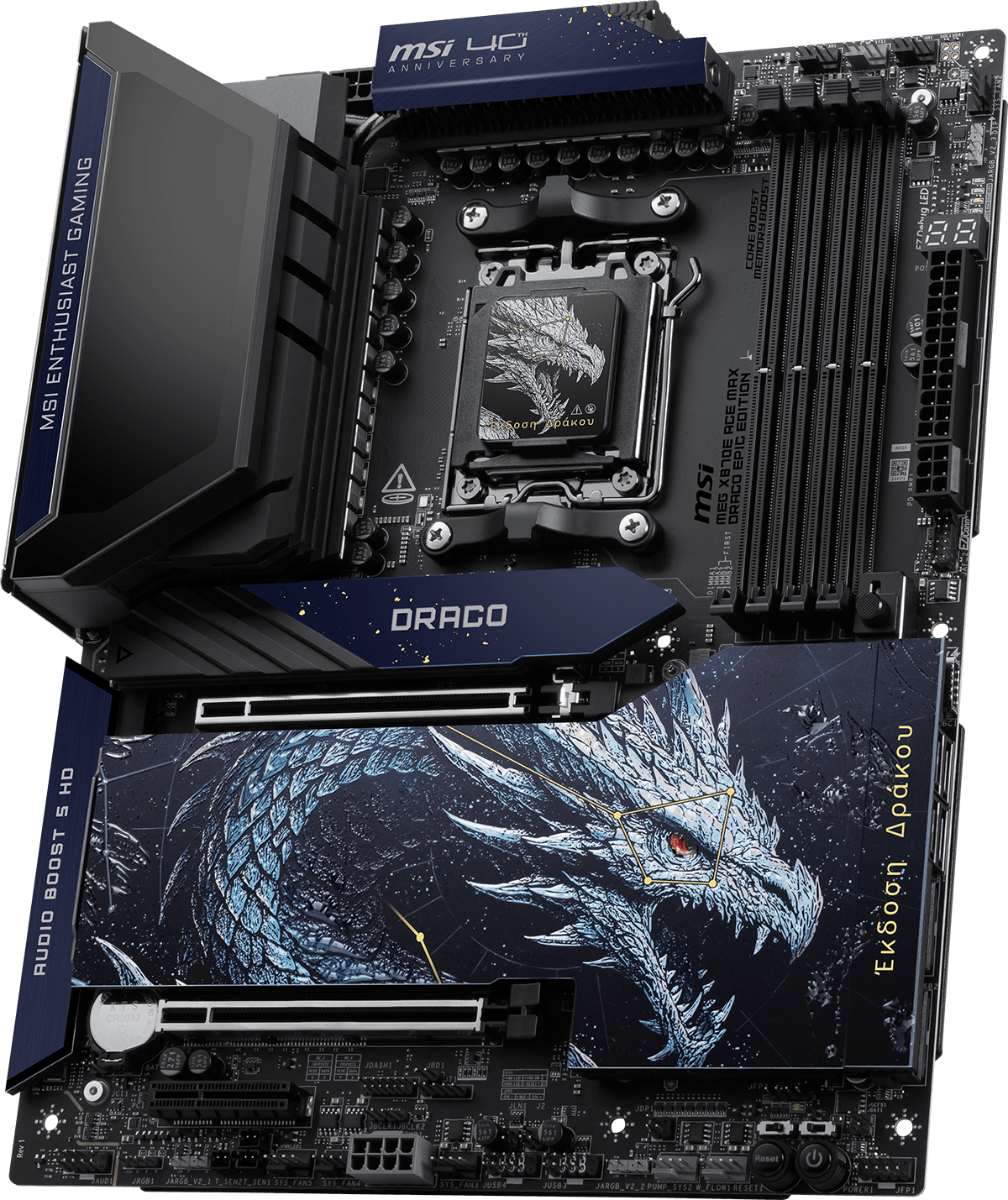

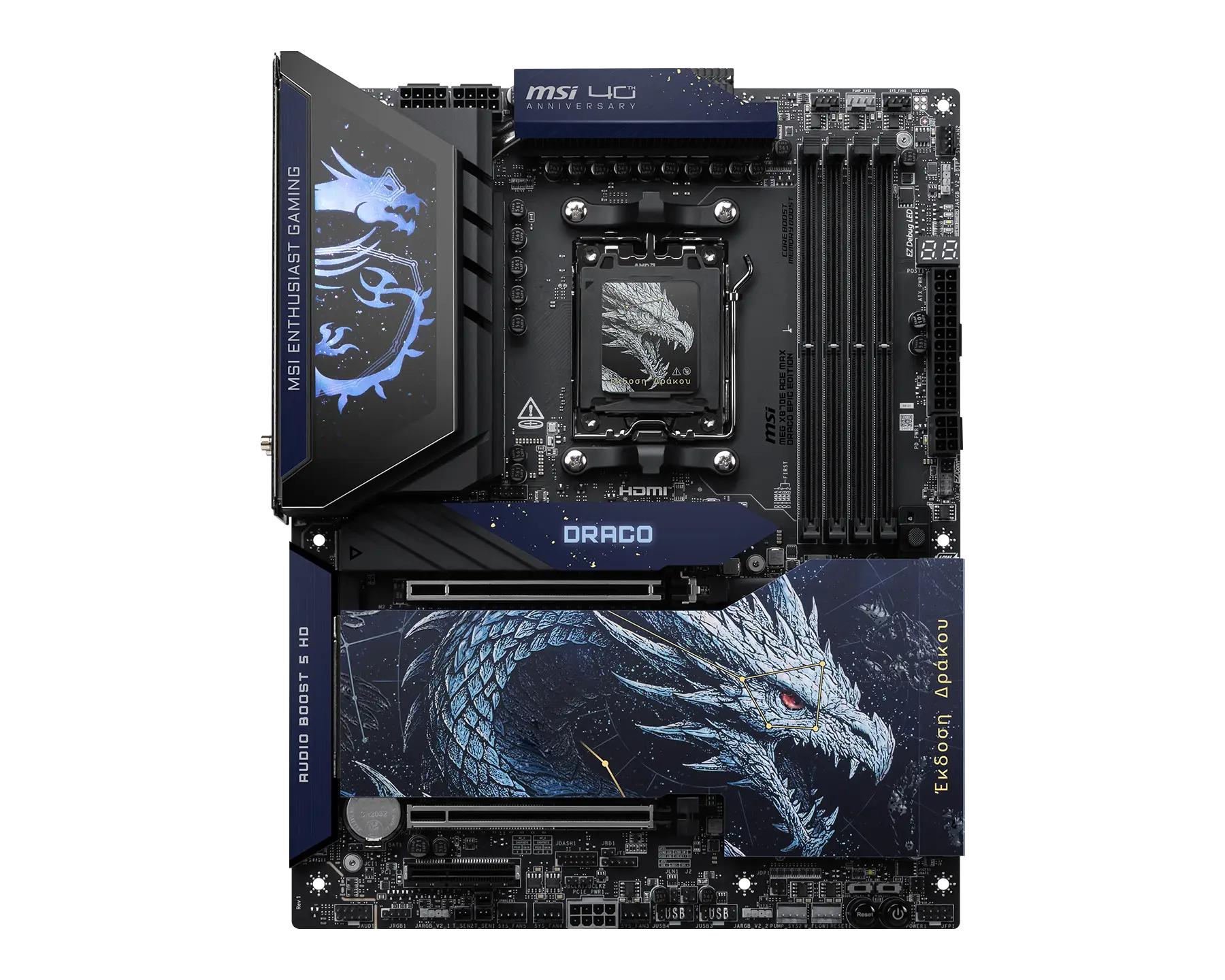

MEG X870E ACE MAX DRACO EPIC EDITION
MEG X870E ACE MAX DRACO EPIC EDITION - title

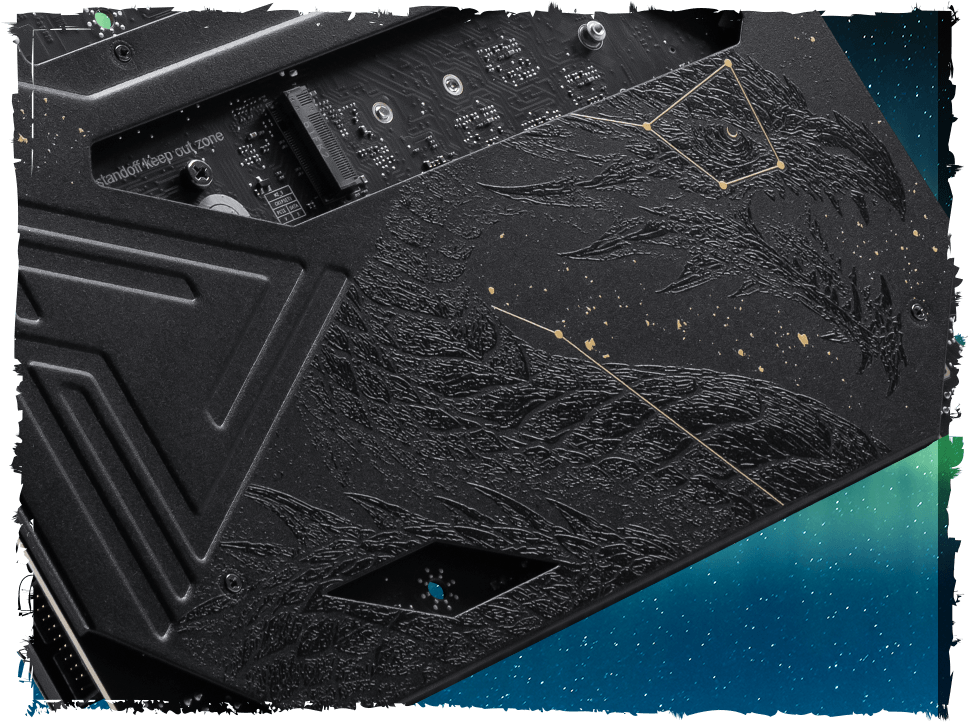

Premium Frozr Design

Beyond aesthetics, the premium cooling solution combines advanced thermal technologies to deliver lower temperatures and stable performance under heavy workloads.

Premium Frozr Design - line MEG X870E ACE MAX DRACO EPIC EDITION
  • Direct Touch Cross Heat-pipe

  • Aluminum Cover

  • 9W/mK Thermal Pad

  • Wavy Fin Design

  • Metal Backplate

  • Double-sided M.2 Shield Frozr

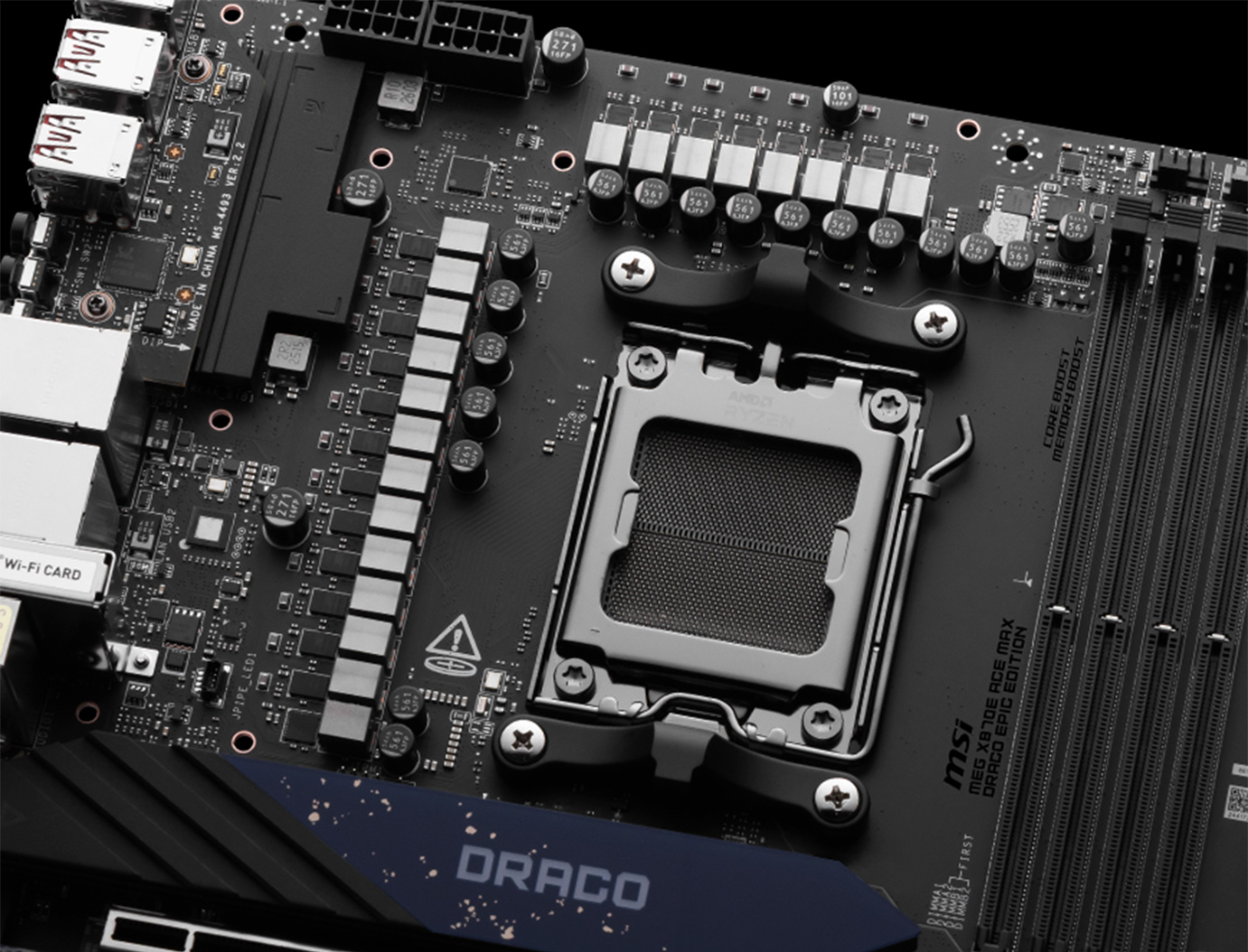

Ultra Power + with 18+2+1 DRPS

Unleash maximum performance with a flagship VRM featuring digital power phases, 110A Smart Power Stages, an onboard OC Engine, and dual 8-pin power connectors. The MEG X870E ACE MAX DRACO EPIC EDITION is built to conquer world-record performance.

icon oc engine icon pin icon digital pwm
MEG X870E ACE MAX DRACO EPIC EDITION
Ultra Power + with 18+2+1 DRPS - cover
MEG X870E ACE MAX DRACO EPIC EDITION

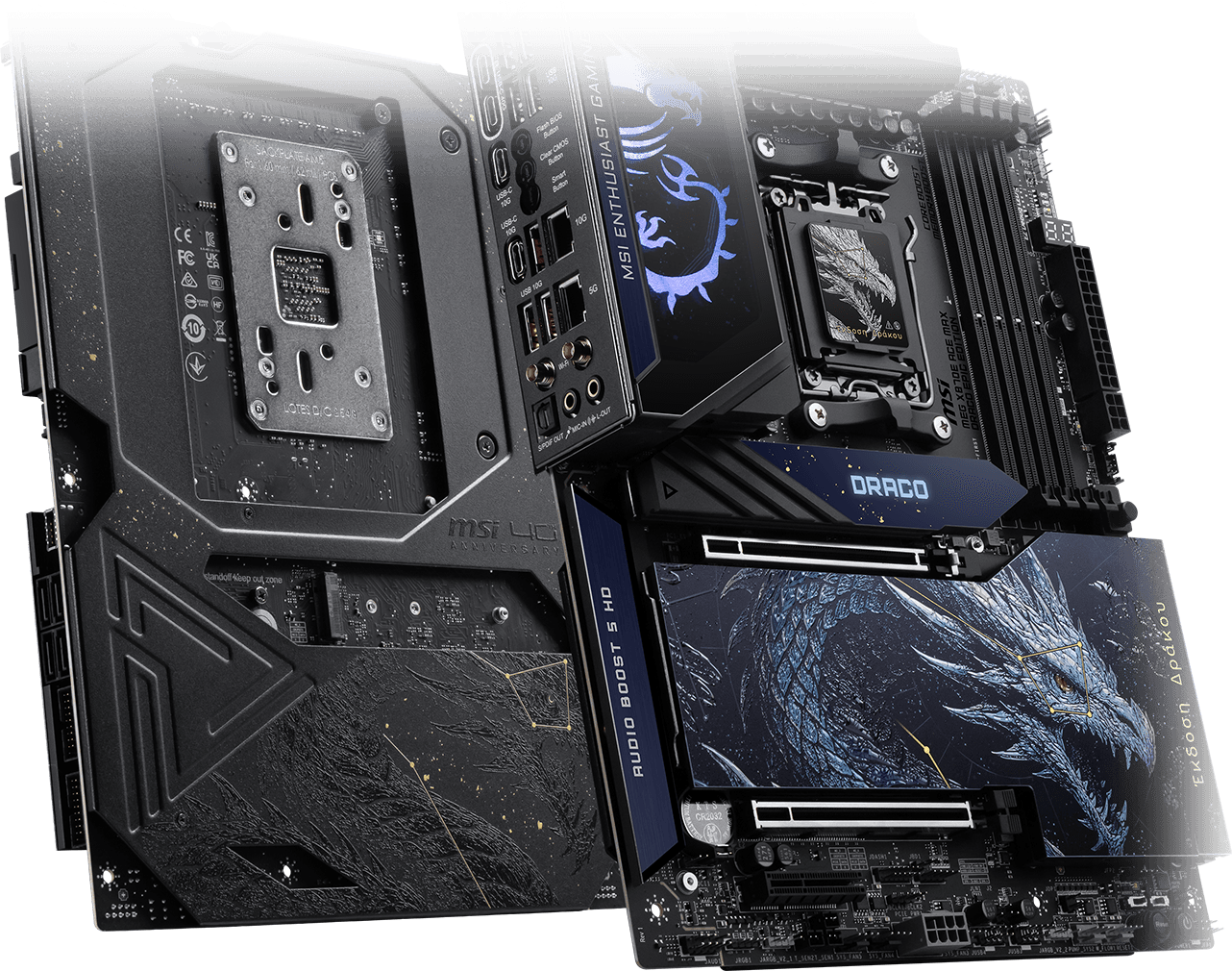

Extreme Storage Expansion

Equipped with five onboard M.2 slots, the MEG X870E ACE MAX DRACO EPIC EDITION supports the latest NVMe SSDs for lightning-fast storage performance and instant application loading.

2x

lightening gen 5 m2
128 Gbps

3x

lightening gen 4 m2
64 Gbps

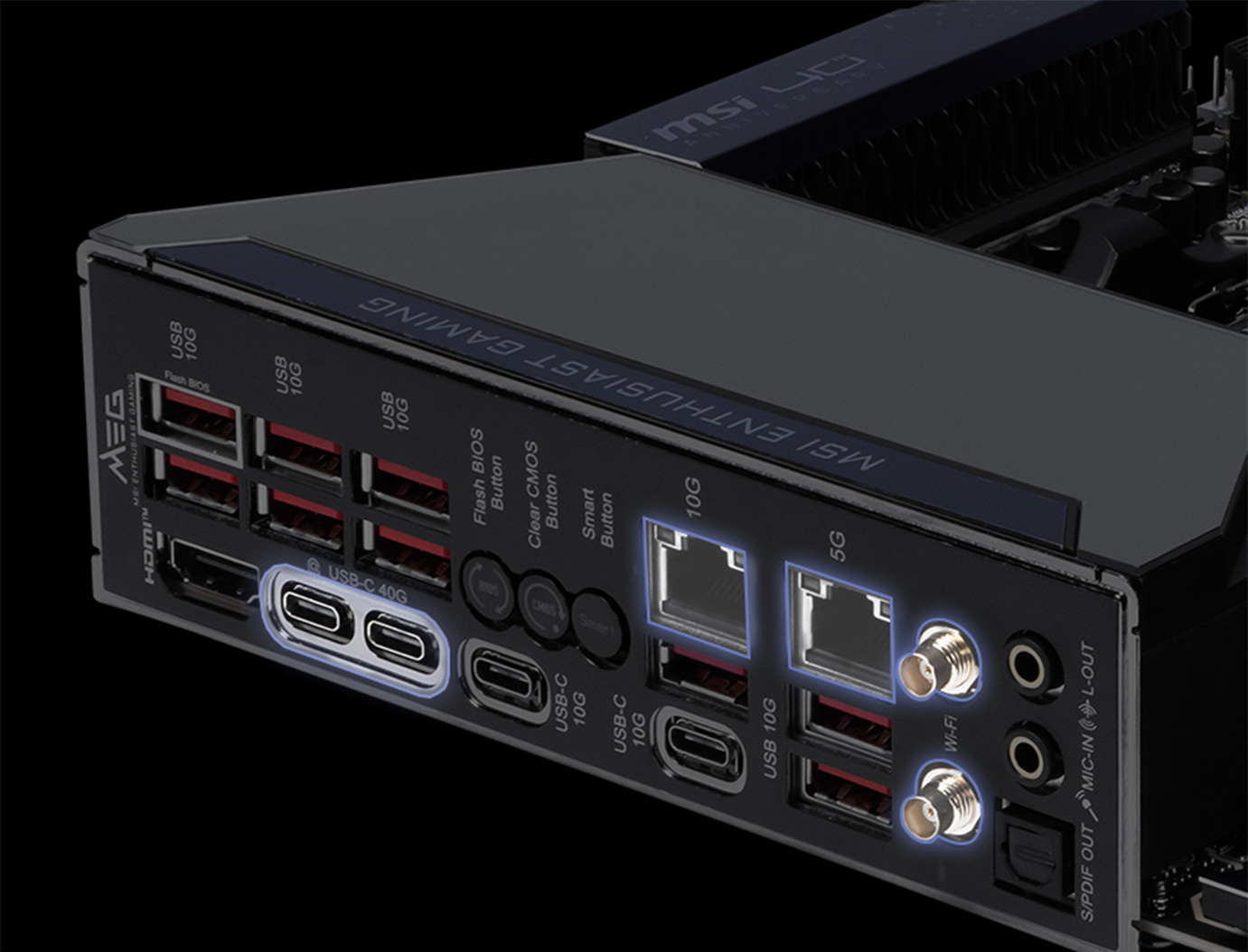

Ultra Connect

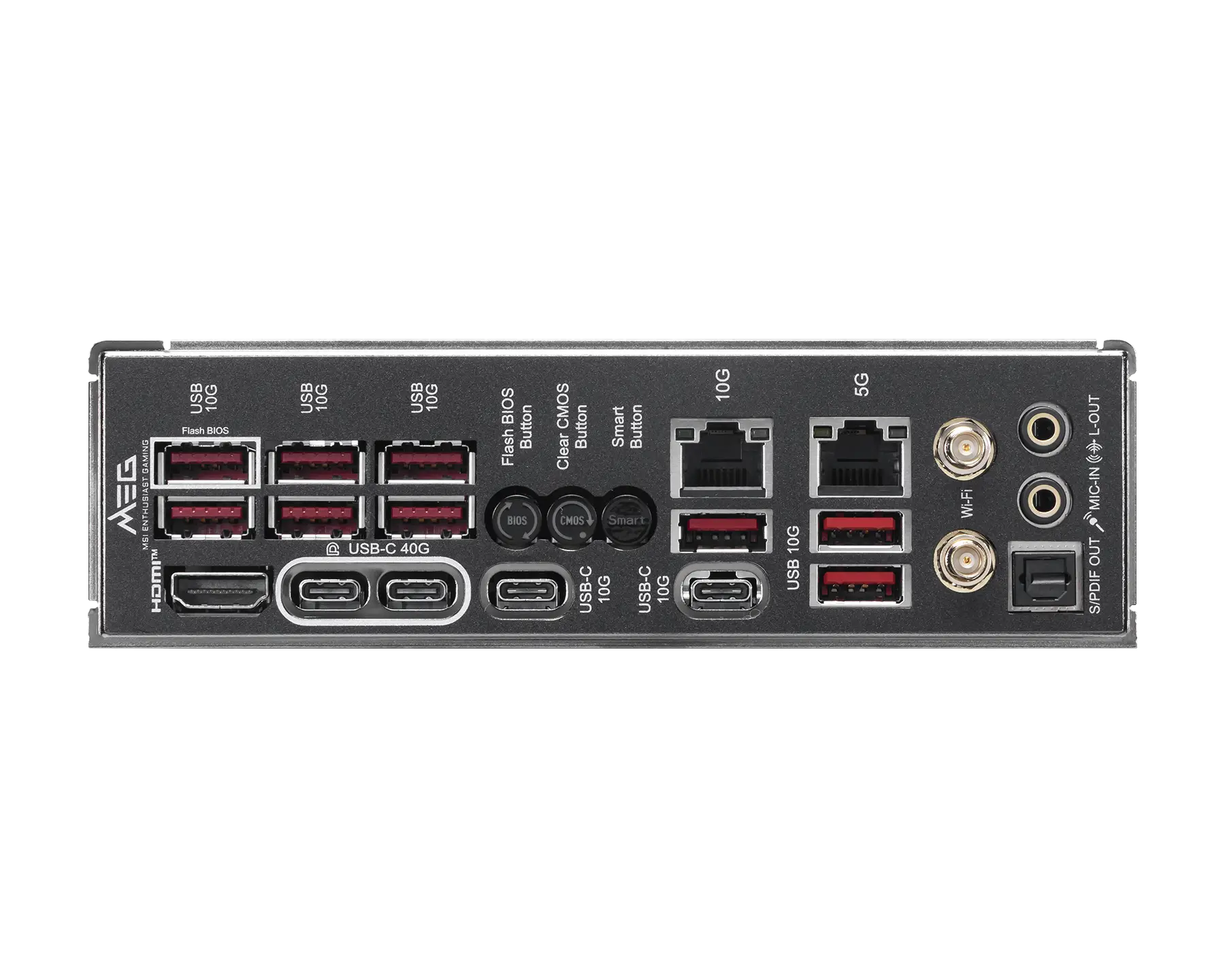

The MEG X870E ACE MAX DRACO EPIC EDITION features Marvell 10Gbps and Realtek 5Gbps LAN, full-speed Wi-Fi 7 with Bluetooth 5.4, and dual USB4 Type-C ports for ultra-fast, next-generation connectivity.

icon 10 LAN icon 5G LAN icon WiFi 7 320MHz icon Type-C 40G
MEG X870E ACE MAX DRACO EPIC EDITION

MEG X870E ACE MAX DRACO EPIC EDITION

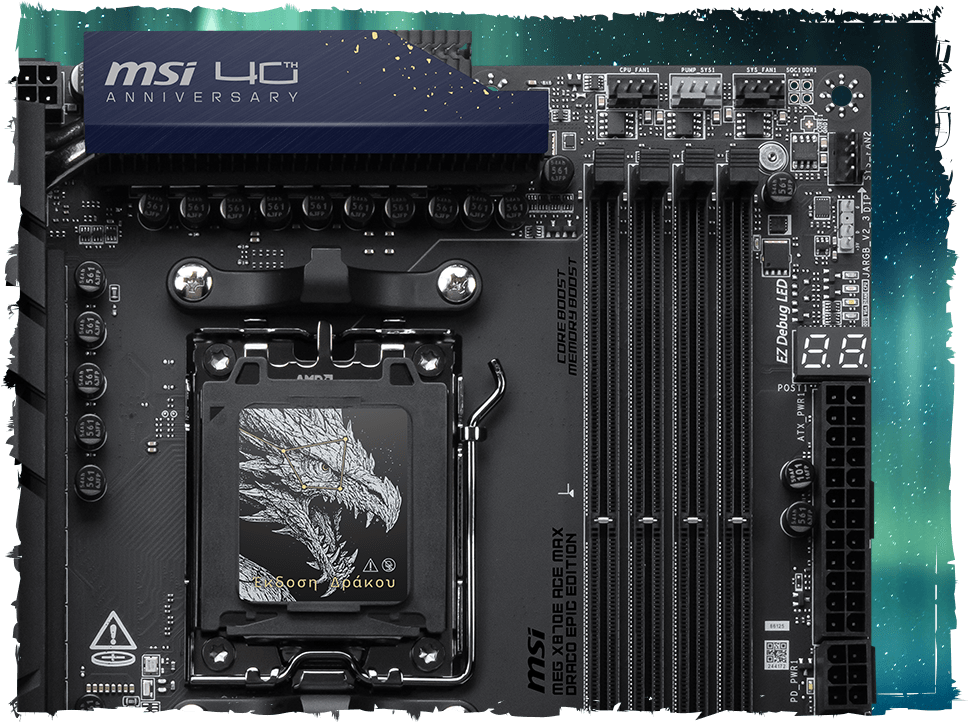

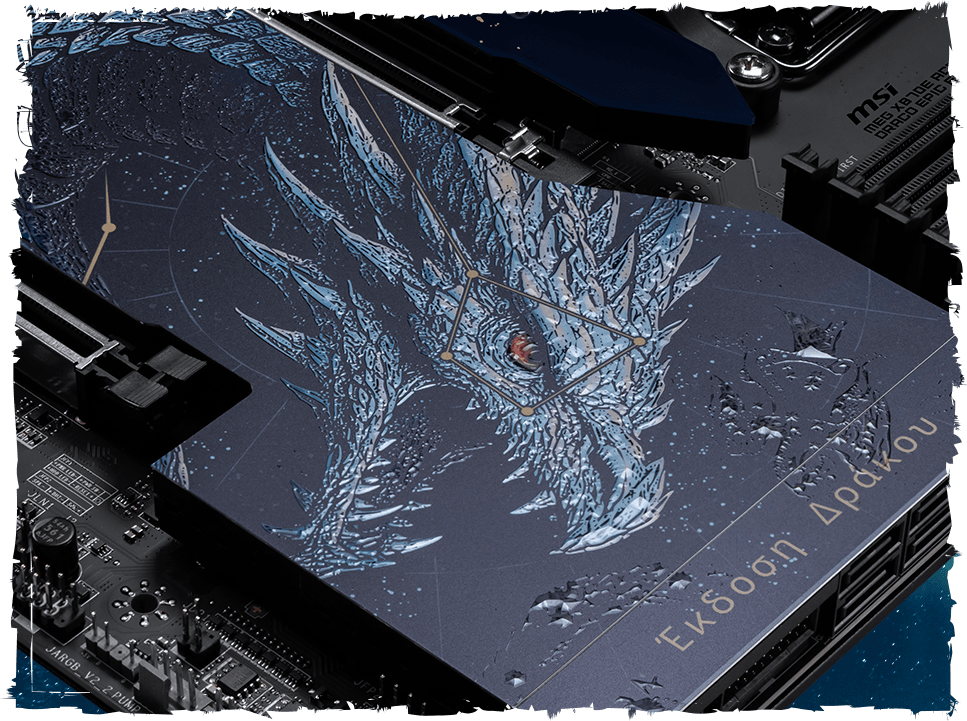

  • 40th Anniversary Edition : Precision printing and a distinctive light-pattern finish create the exceptional textured Draco design.
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 9000+ MT/s (OC)
  • Ultra Performance: 18+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: 64MB BIOS ROM, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna and EZ Conn-Design.
  • Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
