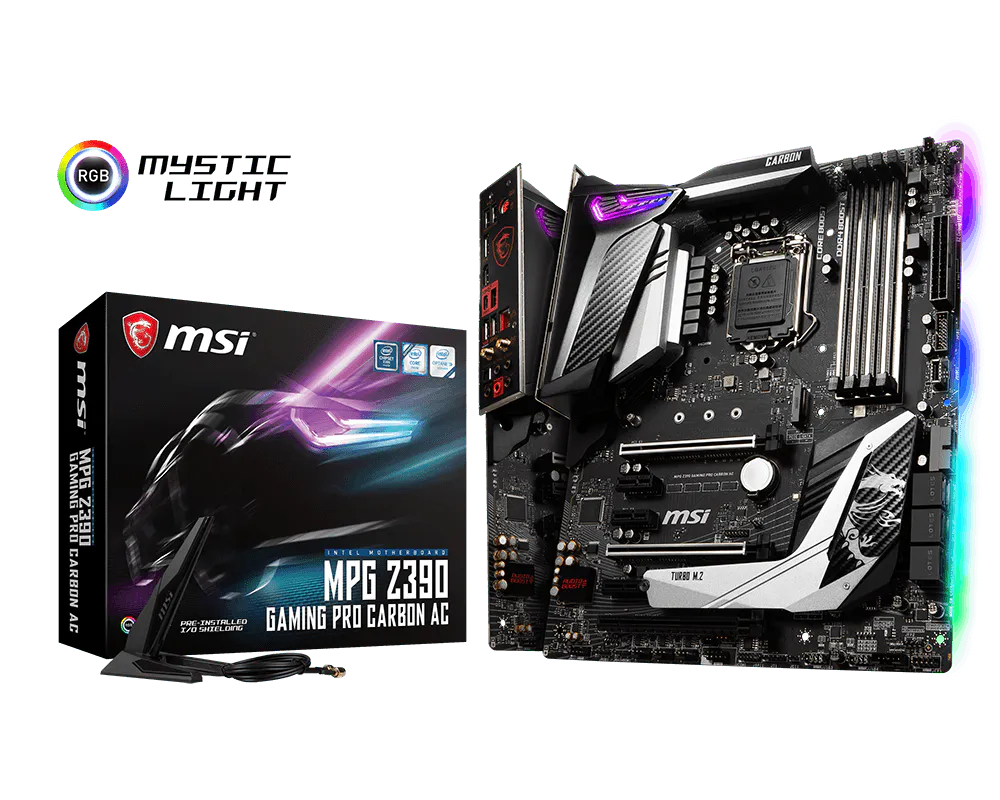

MPG Z390 GAMING PRO CARBON AC

CPU (Max Support)
Socket
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
M.2 Slot
RAID
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Audio ports (Rear)
DisplayPort
HDMI
DirectX
Form Factor
SLI
CrossFire
Operating System

CPU (Max Support)

Socket

1151

Chipset

Intel® Z390 Chipset

DDR4 Memory

4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

128

PCI-E x16

PCI-E Gen

Gen3

PCI-E x1

SATAIII

M.2 Slot

RAID

0/1/5/10

TPM (header)

1x Intel® I219-V

USB 3.1 ports (Front)

1(Gen2, Type C), 4(Gen1, Type A)

USB 3.1 ports (Rear)

1(Gen2, Type C), 3(Gen2, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Serial ports(Front)

Audio ports (Rear)

Realtek® ALC1220P Codec

DisplayPort

HDMI

DirectX

Form Factor

ATX

CrossFire

Operating System

Support for Windows® 10 64-bit

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® Z390 Chipset

Memory

4 x DDR4 memory slots, support up to 128GB
- Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile (XMP)

See supported memory

Slots

3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
3 x PCIe 3.0 x1 slots

Onboard Graphics

1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”

Multi-GPU

Supports 2-Way NVIDIA^® SLI™ Technology
Supports 3-Way AMD^® CrossFire™ Technology

Storage

Intel^® Z390 Chipset

6 x SATA 6Gb/s ports¹
2 x M.2 slot (Key M)¹
- Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- Intel^® Optane™ Memory Ready²

M.2 slots and SATA ports share the bandwidth.
Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® Z390 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB

Intel^® Z390 Chipset

5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek^® ALC1220P-VB2 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1 x Intel^® I219-V Gigabit LAN controller

WIFI & BLUETOOTH

Intel^® Wireless-AC 9560

Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
Supports Bluetooth^® 2.1, 2.1+EDR, 3.0, 4.0, 5

Internal connectors

1 x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.1 Gen2 Type-C port
2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump connector
5x 4-pin system fan connectors
1x Serial port connector
1x Front panel audio connector
2x System panel connectors
1x Thunderbolt Add-on Card Connector
1x Chassis Intrusion connector
1x TPM module connector
2x 4-pin RGB LED connectors
1x 3-pin RAINBOW LED connector
1x 3-pin CORSAIR LED connector

Back panel ports

PS/2 Combo Port
LAN
HD Audio Connectors
USB 2.0
DisplayPort
HDMI
USB 3.1 Gen2 Type-A + C
USB 3.1 Gen2 Type-A
Wireless / Bluetooth
Optical S/PDIF out

Dimensions

9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content
