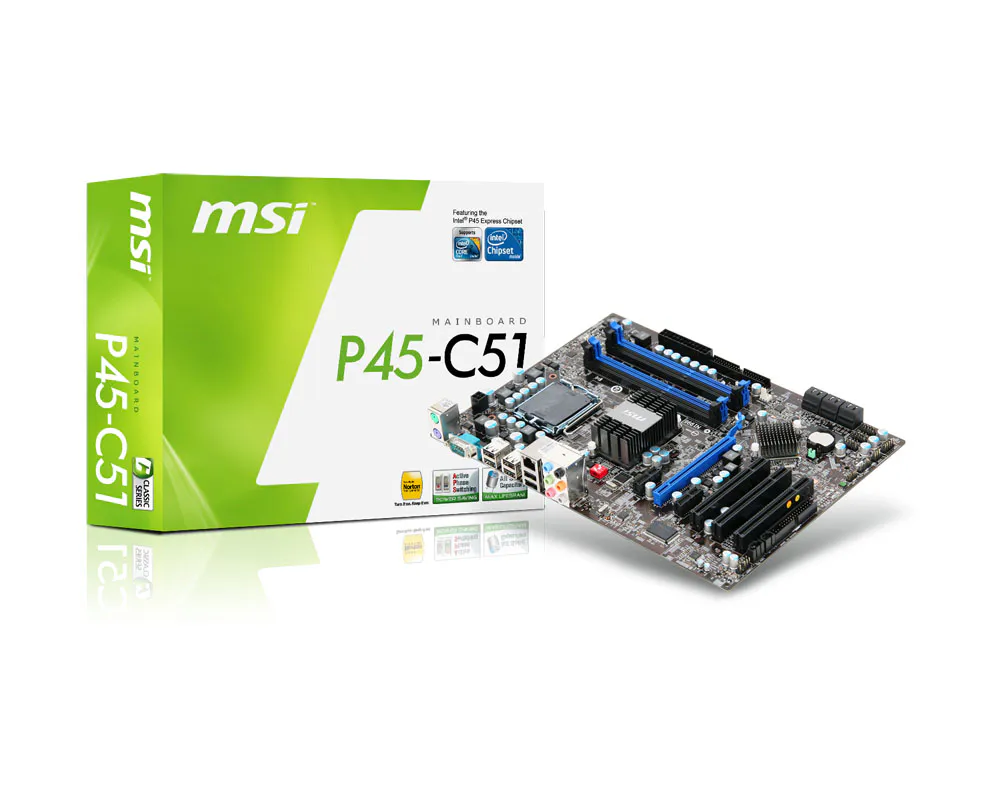

Specification P45-C51

TOP

P45-C51

CPU (Max Support)
Socket
Baseclock/Hyper Transport
Chipset
DDR3 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
PCI
IDE
SATAII
TPM (header)
LAN
USB 2.0 ports (Rear)
Serial ports (Rear)
Audio ports (Rear)
Form Factor
APS

CPU (Max Support)

Core 2 Extreme

Socket

775

Baseclock/Hyper Transport

800/1066/1333/1600* (OC)

Chipset

Intel® P45+ICH10

DDR3 Memory

DDR3 800/1066/1333/1600* (OC)

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen2 (1x16)

PCI-E x1

SATAII

TPM (header)

10/100/1000*1

USB 2.0 ports (Rear)

Serial ports (Rear)

Audio ports (Rear)

Form Factor

ATX

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

CPU

• Supports Intel® Core 2 Extreme/Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
• Supports FSB 1600* (OC)/1333/1066/800 MHz.
• Support VRD 11.1 standard
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® P45 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz.

• Intel® ICH10 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec.
- 6 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*(OC) DRAM, 16GB Max

Slots

• One PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant).
• Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
• Three 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.

On-Board IDE/SATA

• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 368.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH10 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10.

Audio

• Chipset integrated by Realtek® ALC889/ALC885
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

LAN

• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL.

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1/ System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 6 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x SPDIF-Out connector
- Clear CMOS jumper
- OverClocking switch
- 1 x TPM module connector

MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Serial port
- 1 x 6 in 1 audio jack
- 6 x USB 2.0 ports
- 1 x RJ45 LAN jack

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 30.5cm(L) x 22.0cm(W) ATX Form Factor

Mounting

• 6 mounting holes.

Product Accessories

MSI Reminds You...
• The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.
