PRO H610M-S WIFI

Chipset INTEL H610
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 5600 MT/s (by JEDEC & POR)
Supports Intel® POR Speed and JEDEC Speed
Supports Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH Wi-Fi 6E
The Wireless module is pre-installed in the M2_WIFI1 (Key-E)slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
LED FEATURE 4x EZ Debug LED

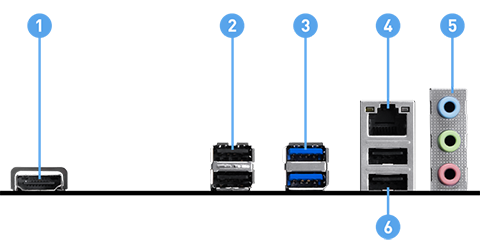

BACK PANEL PORTS
  1. HDMI™
  2. USB 2.0
  3. USB 5Gbps Type-A
  4. LAN port
  5. Audio Connectors
  6. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

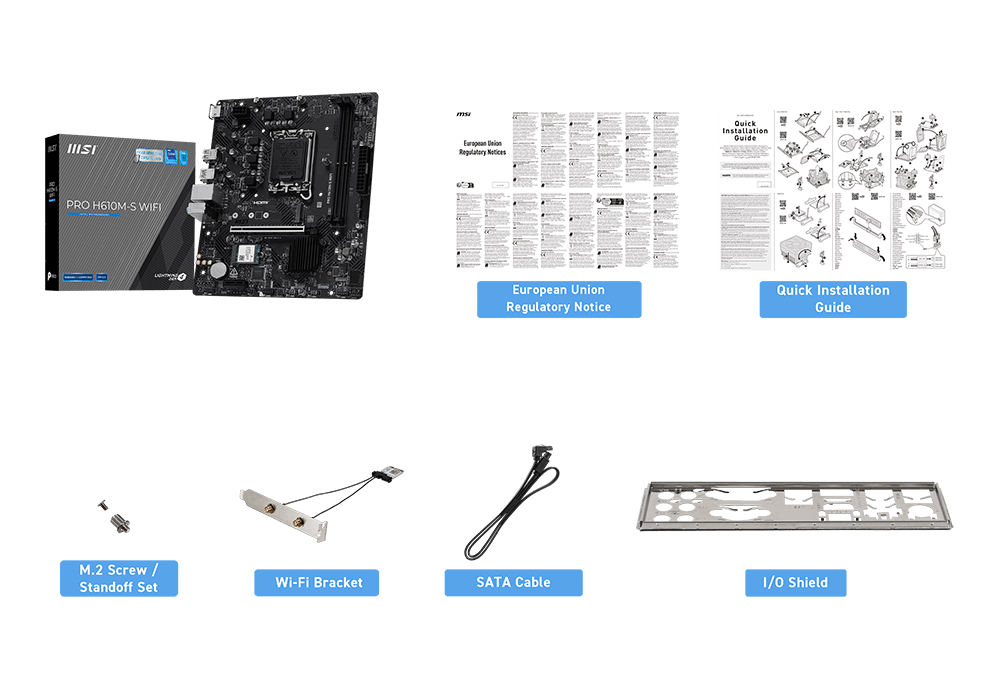

BOX CONTENT
PCB Info mATX
200mmx236.16mm
