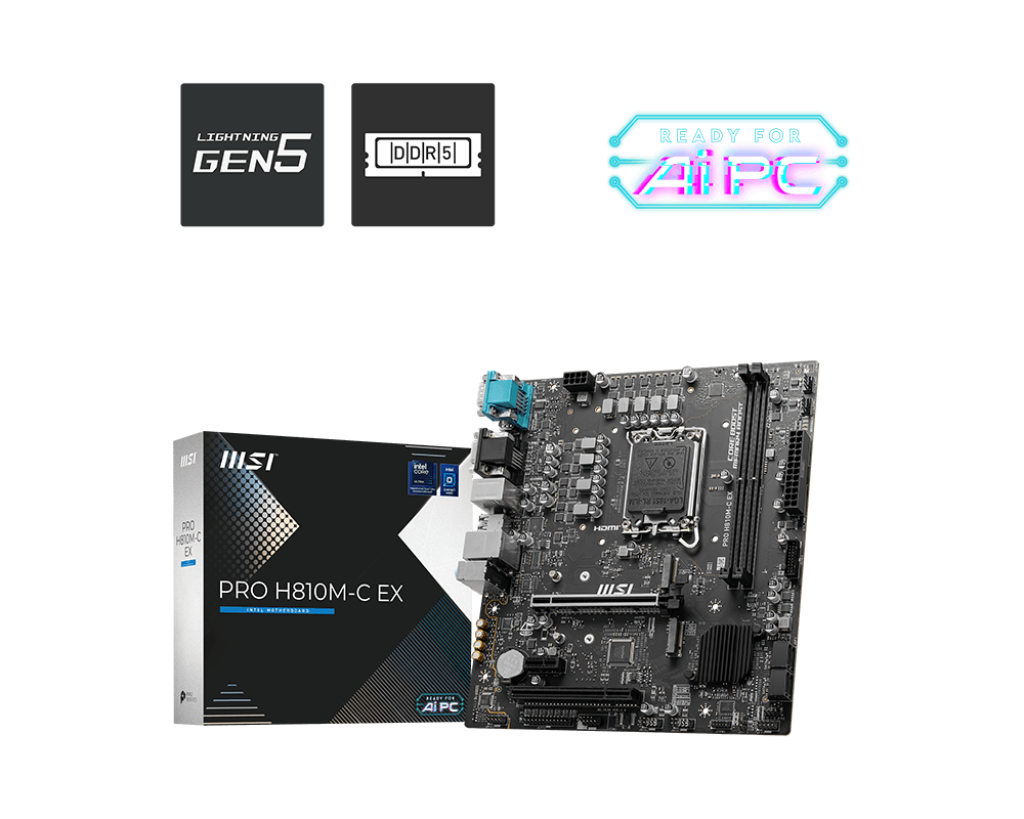

PRO H810M-C EX

Chipset INTEL H810
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 over USB Type-C®, maximum resolution of 4K 60Hz*
1x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
**This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
1x PCI slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Rear)
LAN Intel® I219V 1Gbps LAN controller
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED
BACK PANEL PORTS
  1. COM Port
  2. VGA
  3. Keyboard / Mouse
  4. USB 5Gbps Type-A
  5. 1G LAN
  6. Audio Connectors
  7. DisplayPort
  8. HDMI™
  9. DVI-D
  10. USB 2.0
  11. USB 5Gbps Type-A
  12. USB 10Gbps Type-C (Type-C Display port)
OPERATING SYSTEM Support for Windows® 11 64-bit

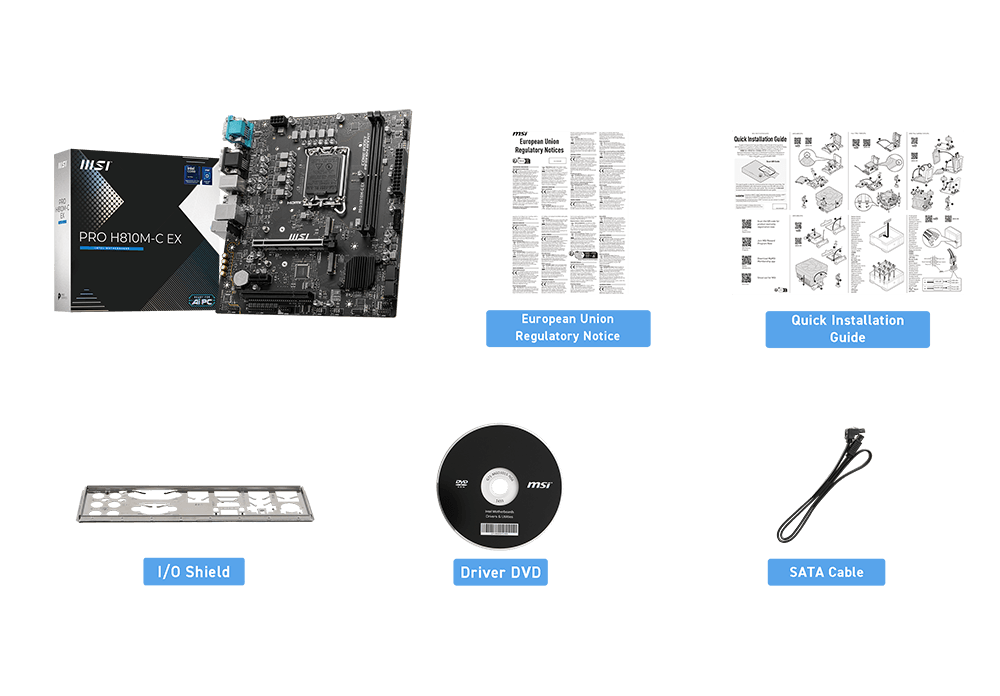

BOX CONTENT
PCB Info mATX
220mmx243.84mm
