Specification X470 GAMING M7 AC

TOP

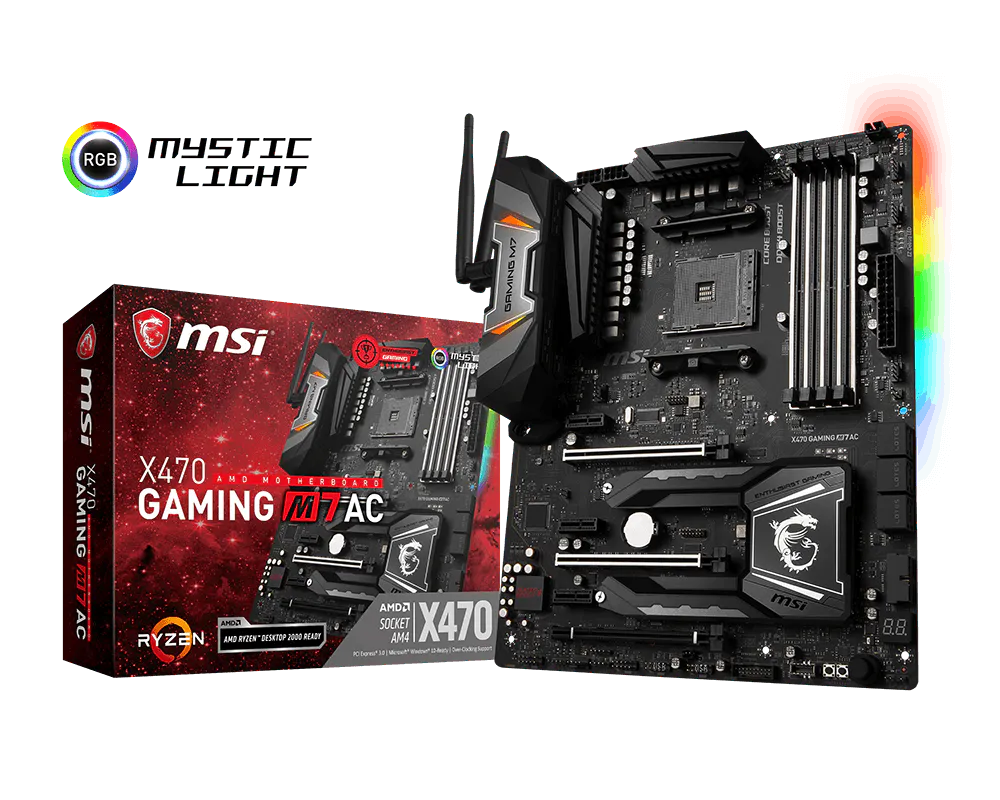

X470 GAMING M7 AC

CPU (Max Support)
Socket
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
M.2 Slot
RAID
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Audio ports (Rear)
DirectX
Form Factor
SLI
CrossFire
Operating System

CPU (Max Support)

RYZEN 9

Socket

AM4

Chipset

AMD® X470 Chipset

DDR4 Memory

1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)/ 3600+ Mhz

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

128

PCI-E x16

PCI-E Gen

Gen3(16,0) (8,8), Gen2(4)

PCI-E x1

SATAIII

M.2 Slot

RAID

0/1/10

TPM (header)

1x Killer E2500 Gigabit LAN controller

USB 3.1 ports (Front)

1(Gen2, Type C), 4(Gen1, Type A)

USB 3.1 ports (Rear)

1(Gen2, Type C), 1(Gen2, Type A), 4(Gen1, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Audio ports (Rear)

Realtek® ALC1220 Codec

DirectX

Form Factor

ATX

CrossFire

Operating System

Support for Windows® 10 64-bitSupport for Windows® 7 64-bit* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 1st, 2nd and 3rd Gen AMD^® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD^® Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD^® X470 Chipset

Memory

4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
- Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600 Mhz by A-XMP OC MODE¹
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)

A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

See supported memory

Slots

2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- 1st, 2nd and 3rd Gen AMD Ryzen™ processors supportx16/x0, x8/x8 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with adeon™ Graphics processors support x8/x0 mode
- Athlon™ with Radeon™ Vega Graphics processors support x4/x0 mode
1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)¹
3 x PCIe 2.0 x1 slots

PCI_E3 slot will be unavailable when installing PCIe card in PCI_E5 slot
PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

Multi-GPU

1st, 2nd and 3rd Gen AMD Ryzen™ Processors
- Supports 2-Way NVIDIA^® SLI™ Technology
- Supports 3-Way AMD^® CrossFire™ Technology
Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors
- Supports 2-Way AMD^® CrossFire™ Technology

Storage

AMD^® X470 Chipset

6 x SATA 6Gb/s ports¹
2 x M.2 ports (Key M)
- M2_1 slot (from AMD^® processor) Supports PCIe 3.0 x4 (AMD^® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD^® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors)
- M2_2 slot (from AMD^® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices²

SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

AMD^® X470 Chipset

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

ASMedia^® ASM1143 Chipset

1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector

AMD^® X470 Chipset

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD^® CPU

4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek^® ALC1220 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1 x Killer™ E2500 Gigabit LAN controller

Wireless LAN & Bluetooth^®

Intel^® Dual Band Wireless-AC 8265 card

The Wireless card is pre-install in the M2_3 (M.2 Key E) slot.
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
Supports Dual Mode Bluetooth^® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

Internal connectors

1x 24-pin ATX 12V power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
1x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)
1x 4-pin CPU fan connector
1x 4-pin PUMP fan connector (supports up to 2A)
4x 4-pin system fan connectors
2x 5050 RGB LED strip 12V connectors
1x WS2812B Individually Addressable RGB LED strip 5V connector
1x CORSAIR connector y1x TPM module connector
1x Front panel audio connector
2x System panel connectors y1x Chassis Intrusion connector
1x Clear CMOS jumper
1x GAME BOOST knob
1x Power button
1x Reset button
1x 2-Digit Debug Code LED

Back panel ports

Clear CMOS Button
PS/2 GAMING Device Port
USB 3.1 Gen1 Ports
Intel^® WiFi/ Bluetooth Module
USB 3.1 Gen1 Ports
Killer™ E2500 Gigabit LAN
HD Audio Connectors
Flash BIOS Button
USB 2.0 Port
USB 3.1 Gen2 Type A+C
Optical S/PDIF-Out

Dimensions

12 in. x 9.6 in. (30.4 cm x 24.4 cm)
ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit
Support for Windows^® 7 64-bit

* To support Windows^® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Box content
