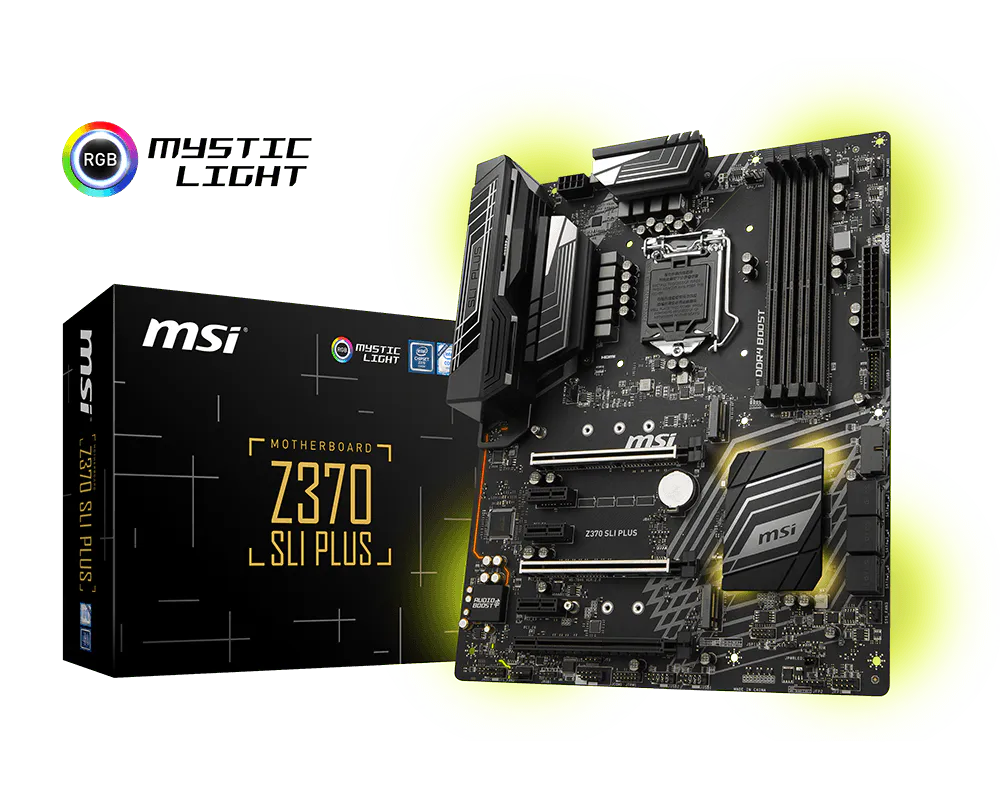

INTEL Z370 MOTHERBOARDS Z370 SLI PLUS

Z370 SLI PLUS

Socket
CPU (Max Support)
Chipset
DDR4 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
SATAIII
M.2 Slot
RAID
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Audio ports (Rear)
DVI-D
HDMI
DirectX
Form Factor
SLI
CrossFire
Operating System

Socket

1151

CPU (Max Support)

Chipset

Intel® Z370 Chipset

DDR4 Memory

4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3

PCI-E x1

SATAIII

M.2 Slot

RAID

0/1/5/10

TPM (header)

10/100/1000*1

USB 3.1 ports (Front)

4(Gen1, Type A)

USB 3.1 ports (Rear)

1(Gen2, Type A),1 (Gen2, Type C), 4(Gen1, Type A)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Serial ports(Front)

Audio ports (Rear)

Realtek® ALC1220 Codec

DVI-D

HDMI

DirectX

Form Factor

ATX

CrossFire

Operating System

Support for Windows® 10 64-bit

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® Z370 Chipset

Memory

4 x DDR4 memory slots, support up to 64GB
- Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile (XMP)

See supported memory

Slots

3 x PCIe 3.0 x16 slots
3 x PCIe 3.0 x1 slots

Onboard Graphics

1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

*No Display support when using the Processor model with suffix “F”

Multi-GPU

Supports 2-Way NVIDIA^® SLI™ Technology
Supports 3-Way AMD^® CrossFire™ Technology

Storage

Intel^® Z370 Chipset

6 x SATA 6Gb/s ports¹
2 x M.2 slots (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card²
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Supports Intel^® Optane™ Memory Ready for all M.2 slots

The SATA1, SATA5 and SATA6 ports will become unavailable with some conditions of M.2 devices. Please refer the manual for M.2 & SATA combination table .
The Turbo U.2 Host Card is not included, please purchase separately.

RAID

Intel^® Z370 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 storage devices¹

M.2 PCIe RAID volume can be created with M.2 GENIE.

USB

ASMedia^® ASM2142 Chipset

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

Intel^® Z370 Chipset

8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek^® ALC1220 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1 x Intel^® I219-V Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Clear CMOS jumper

Back panel ports

PS/2 Combo Port
USB 3.1 Gen 2
USB 3.1 Gen 1
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
LIGHTNING USB 3.1 Gen2 Type-C
HDMI
USB 3.1 Gen 1
Optical S/PDIF-Out

Dimensions

12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
