The Reliable Engine of Your PC Build
Support MSI Exclusive GPU Safeguard+, it’s the comprehensive and precisely protection, while under of computer using scenario.
-
GPU SAFEGUARD+ -
SiC MOSFETs -
FAN SAFEGUARD -
EZ DIY -
ATX 3.1 READY -
PCIe 5.1 READY
Premium Protection
-
GPU Safeguard+
-
Fan Safeguard
GPU Safeguard+
Proactive and instant Protection
An advanced protection technology for graphics card. It monitors dual 12V-2x6 connector power currents and provides instant, real-time alerts, acting as a 24/7 guard to shield your valuable GPU from unexpected threats.
Fan Safeguard
Instant Alert, Overheating Prevention
Fan failure protection immediately detects when the fan stops spinning. A buzzer will then sound, alerting you to the problem and preventing the power supply from overheating.
PERFORMANCE
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.

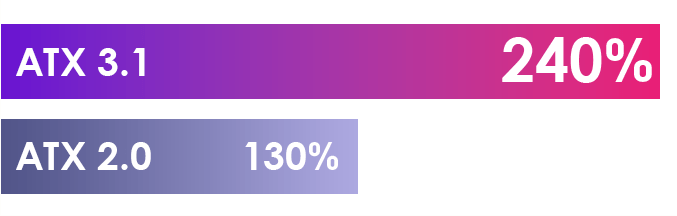

ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.

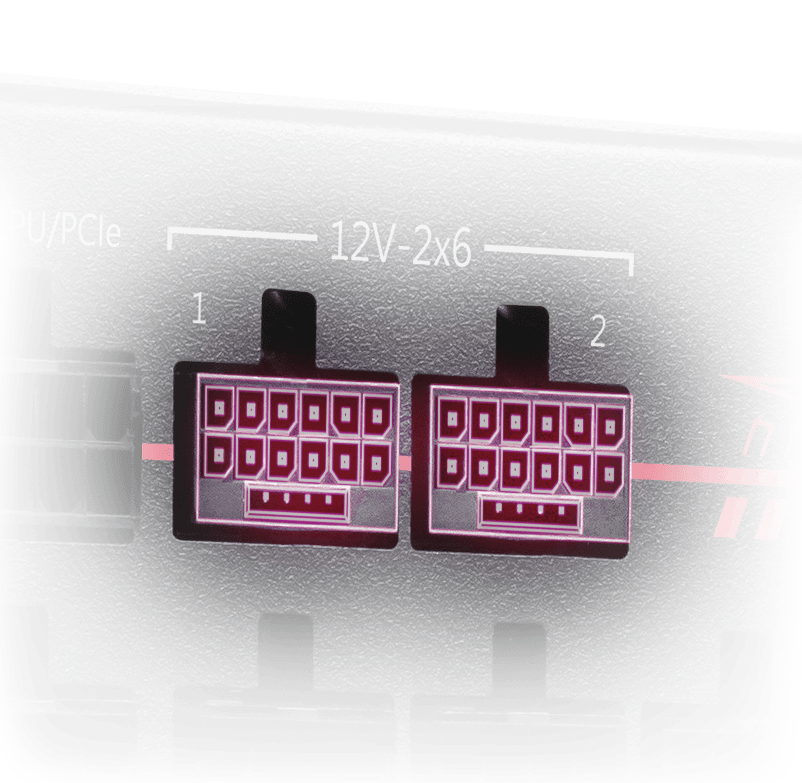

2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into ±1%.

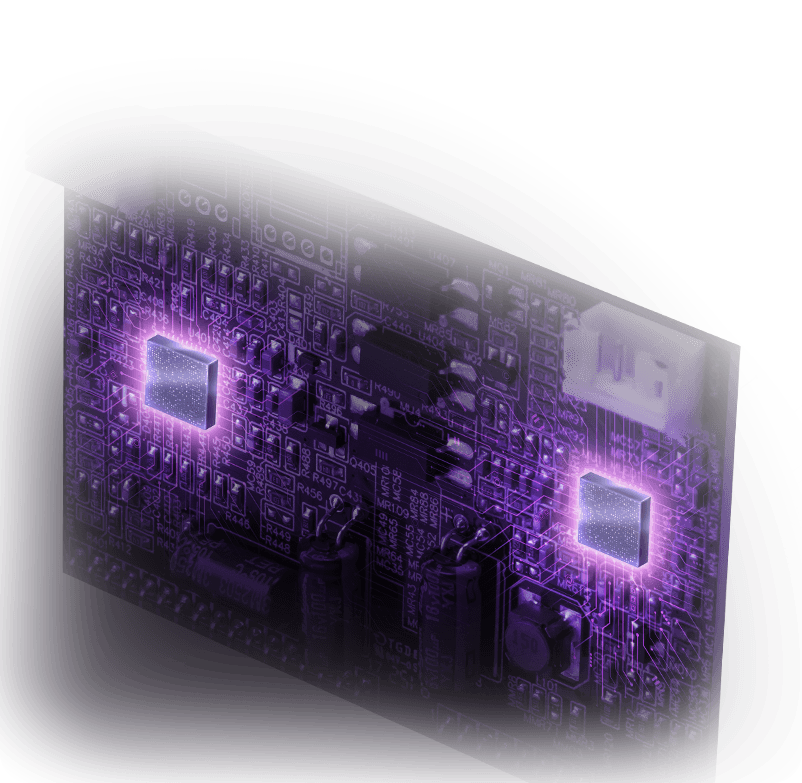

FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.

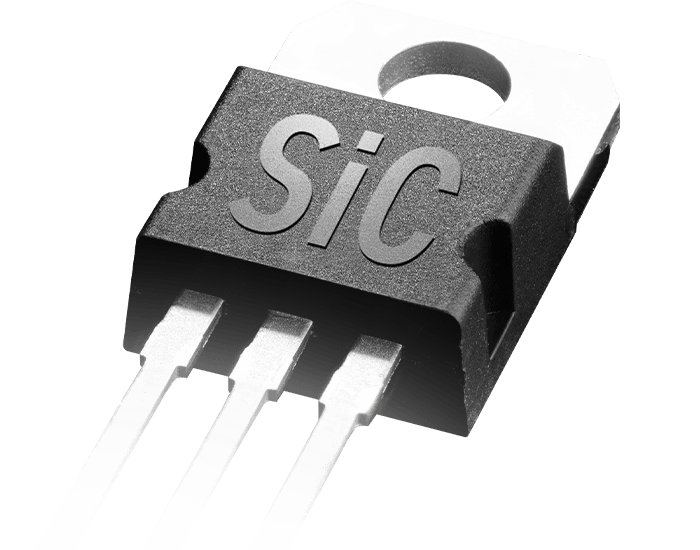

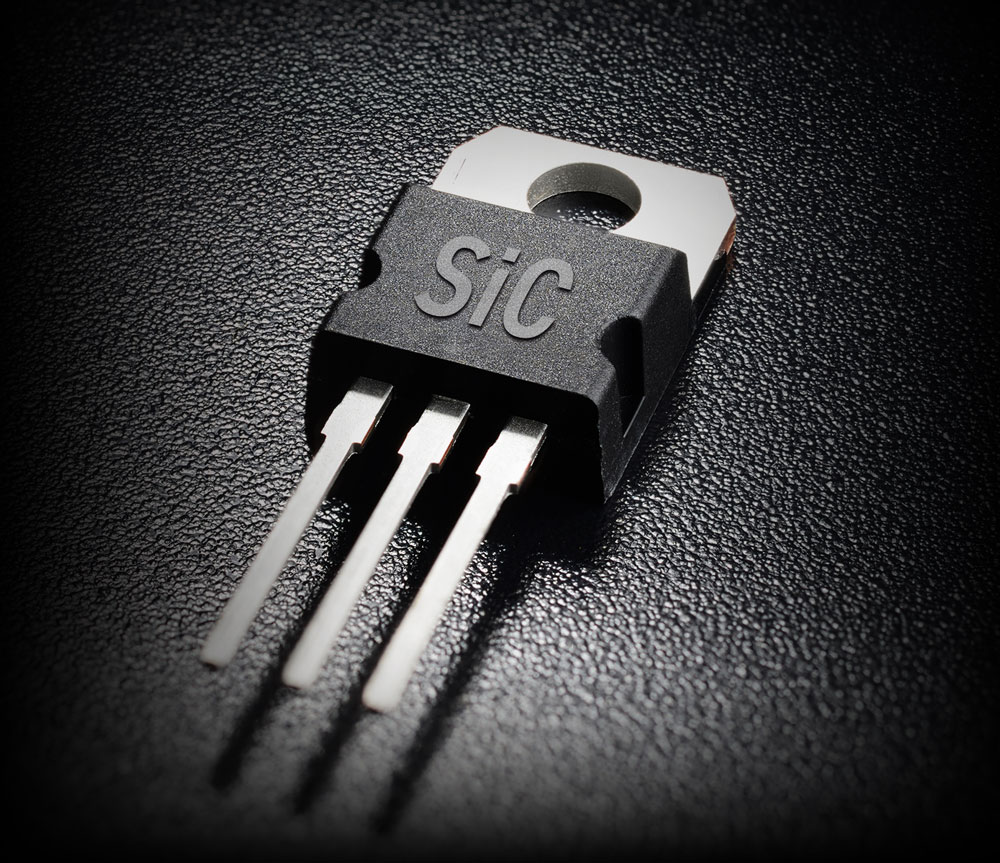

SiC MOSFET
ROCK-SOLID STABILITY, PEAK EFFICIENCY
The first of server-grade materials are used in the interleaved PFC MOSFETs to enhance stability, improve overall efficiency, reduce losses, and optimize heat dissipation.
*The images is only for reference.

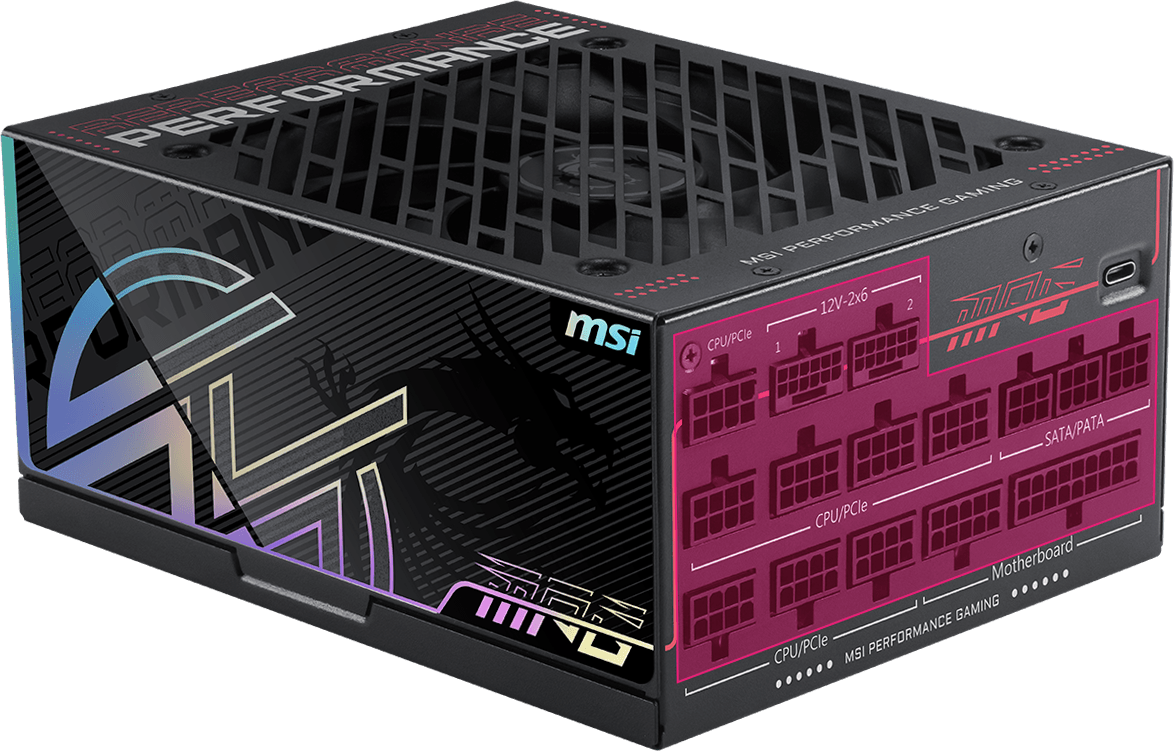

Ultimate Proof PSU

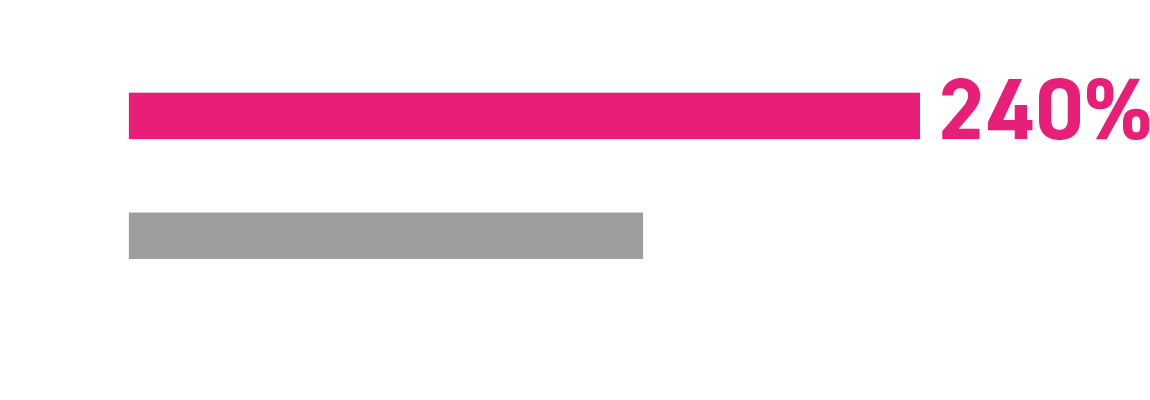

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
3X
GPU Power Excursions
The efficiency of your power supply significantly impacts overall power consumption. A Titanium certification serves as an outstanding benchmark for energy efficiency, ensuring lower power consumption while maintaining optimal performance at higher efficiency levels.
THERMAL
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
Low Sound Level
Unheard of Quiet. Pure Focus
This power supply is designed for quiet operation, with noise levels just like in night, ensuring a peaceful computing experience without any disturbances.

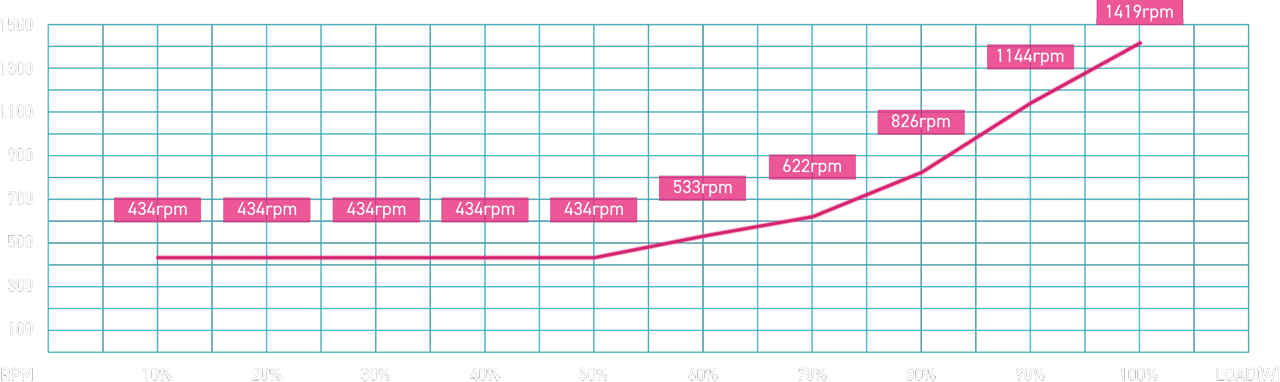

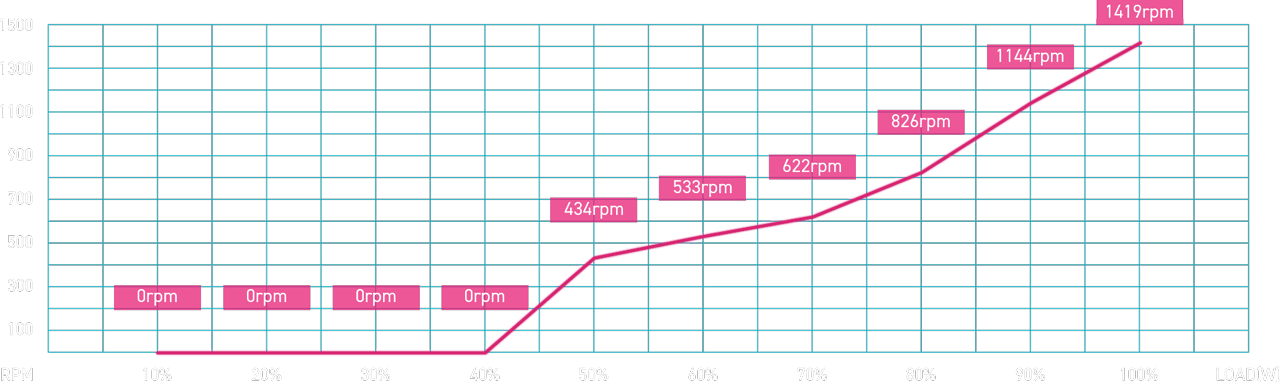

Zero Fan Mode
Enjoy the Silence of Zero RPM
Equipped with Zero Fan Mode. When the system is operating under low load (TDP below 50%), the fan will stop operation completely, providing you with absolute zero noise (0 dBA)! Enjoy the deep, silence exclusively during document processing or multimedia entertainment

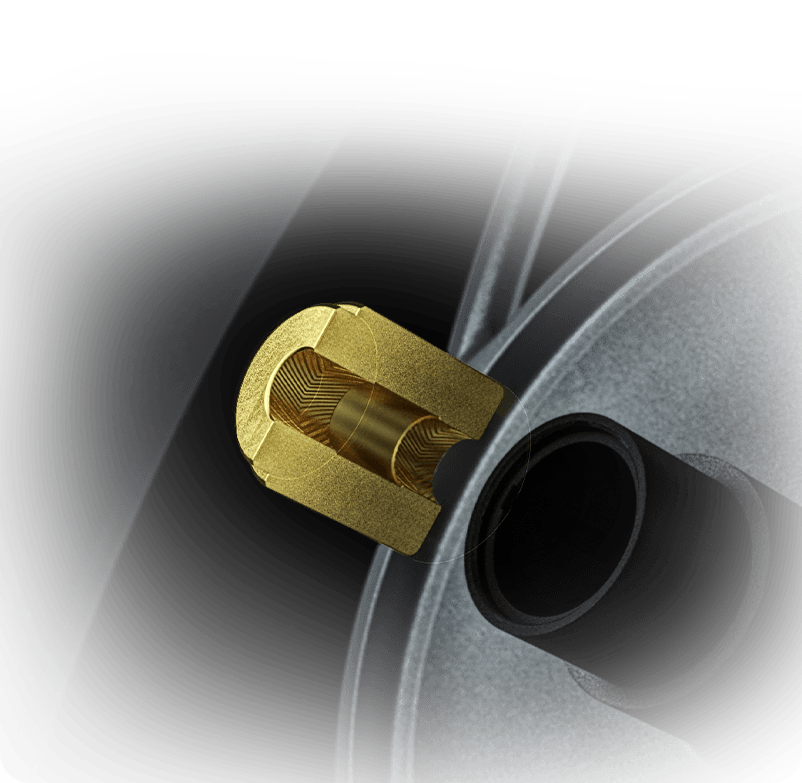

Fluid Dynamic Bearing
This power supply’s comes with 135 mm fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.
DURABILITY
100% SERVER-GRADE
105°C CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.

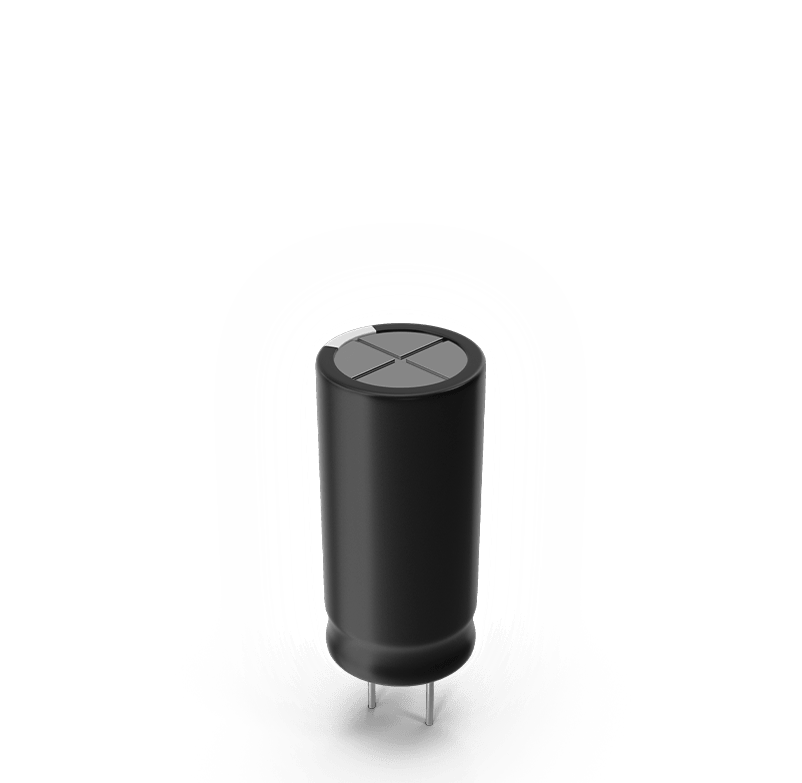

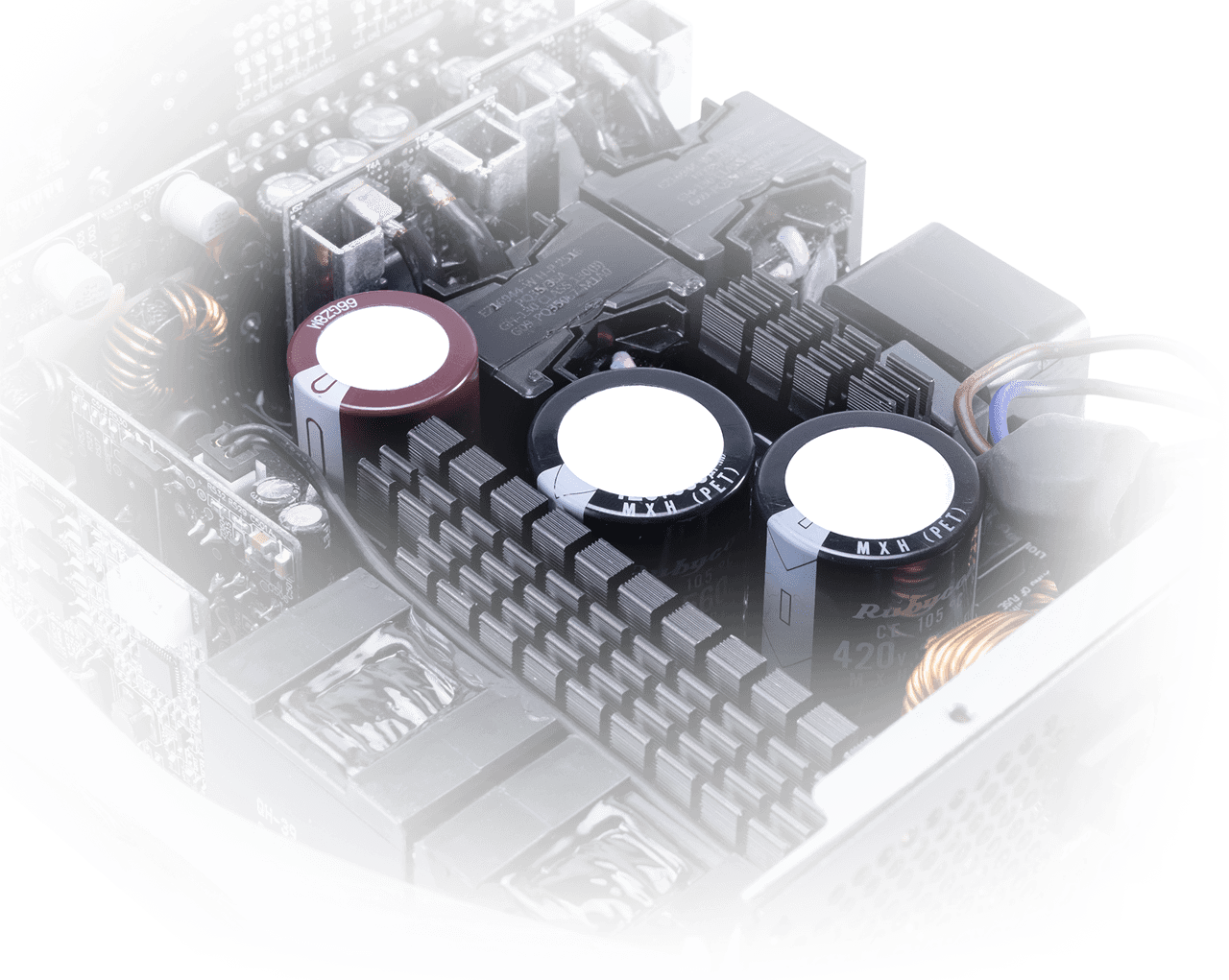

Server-grade Electrolytic
105°C Capacitor
This power supply’s comes with 135 mm fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.

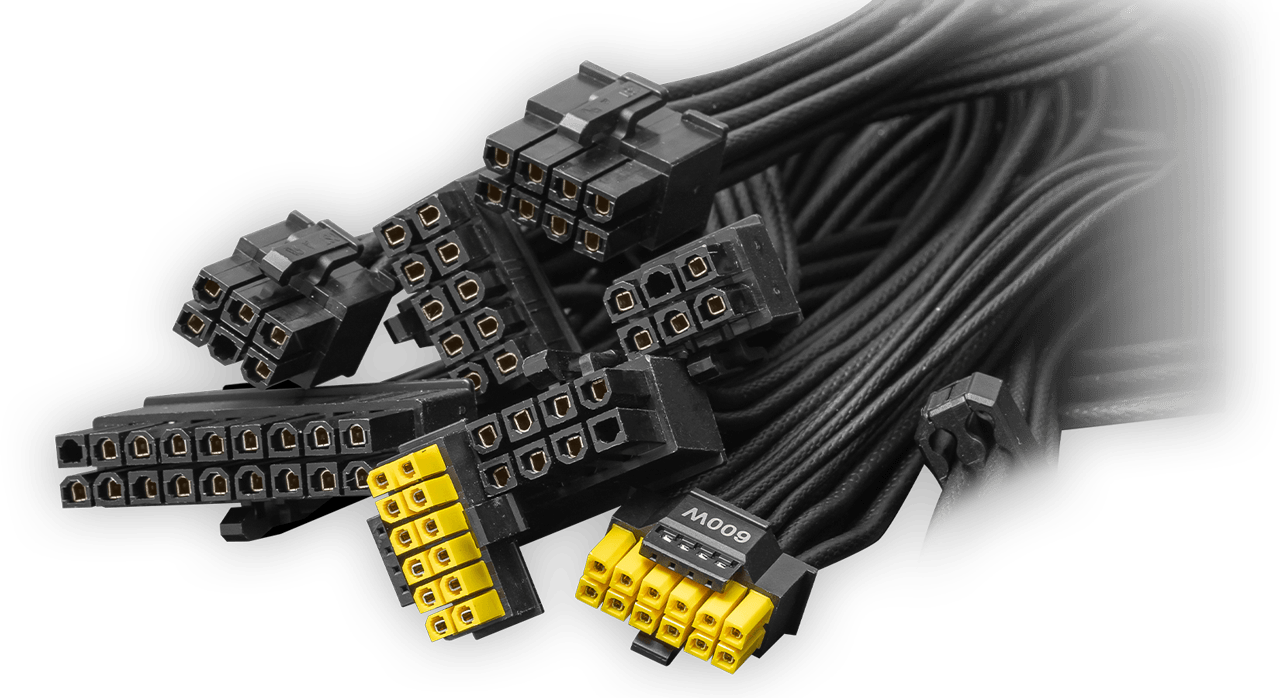

Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.

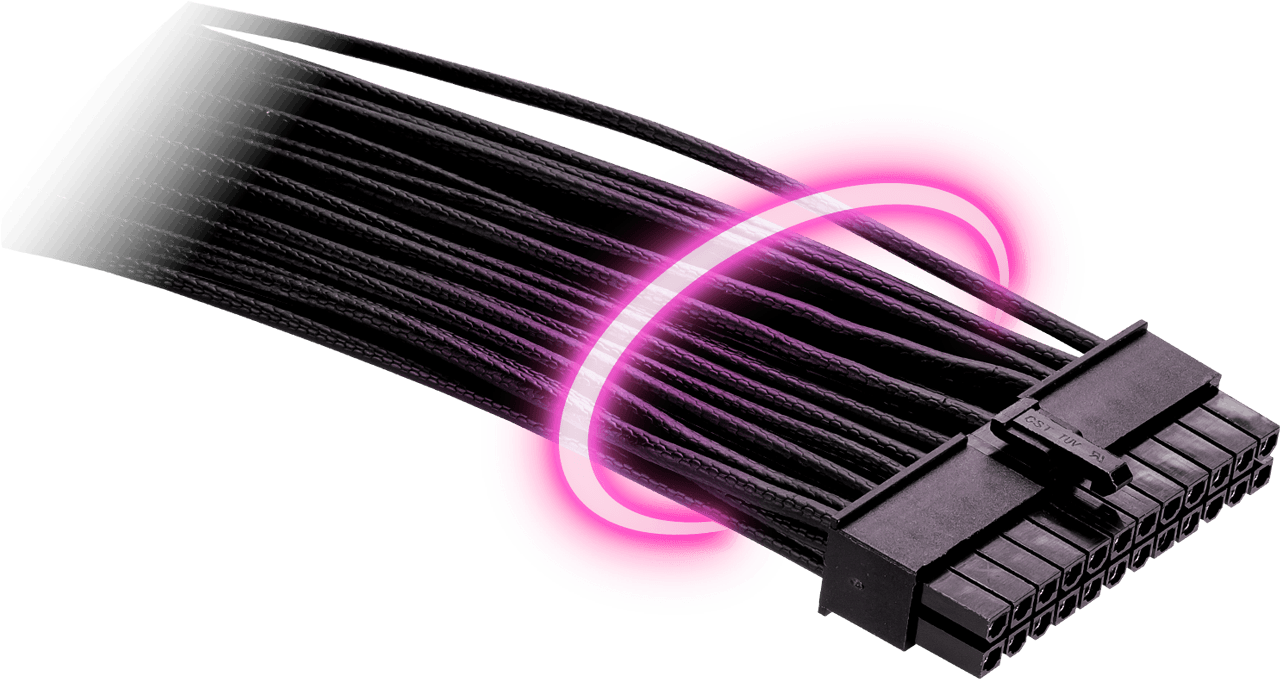

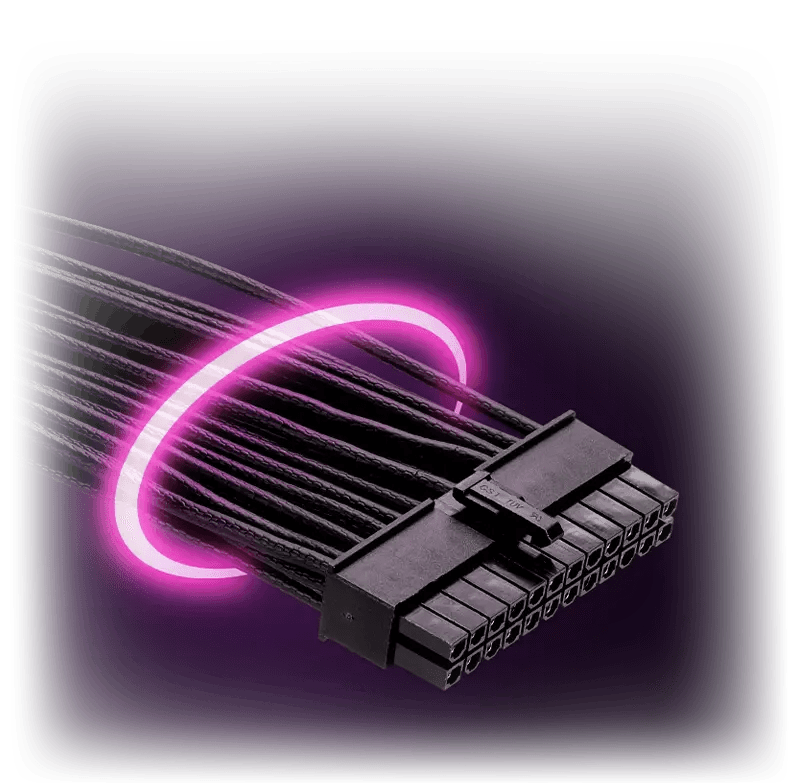

Built for Maximum Safety
The power cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
Protection Mechanisms
To make sure the entire system can operate safely and stably at all times, here comes with a number of protection mechanisms to give you the best peace of mind.
OCP
OTP
OPP
SCP
OVP
UVP
SIP
NLO
Surge Protection
This power supply features external voltage spike protection, making it a reliable choice for use in small-scale data centers where stability and safety are crucial.
EZ DIY
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.

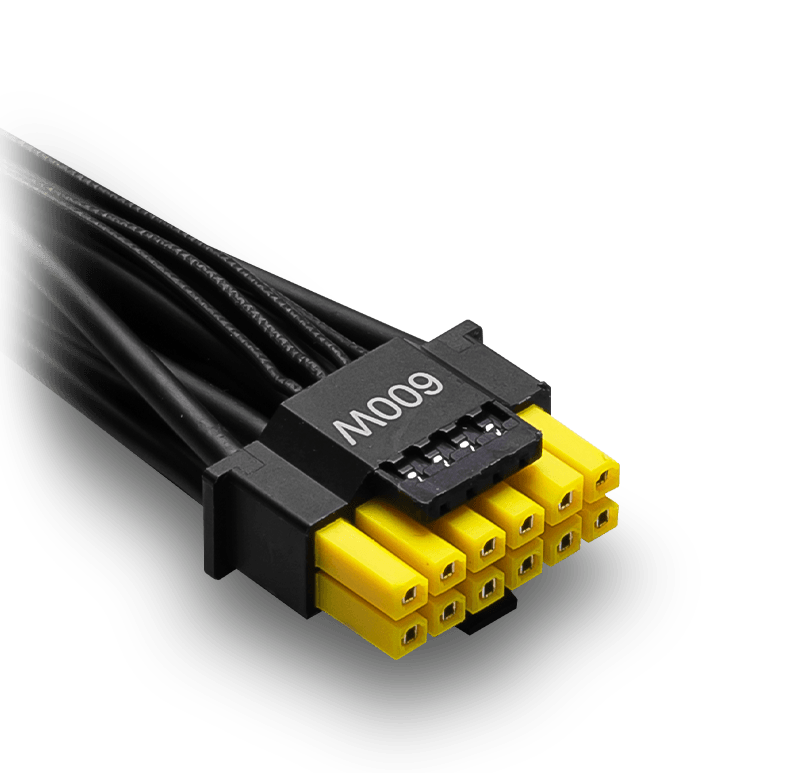

Dual-color 16 Pin cable
The 12V-2x6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

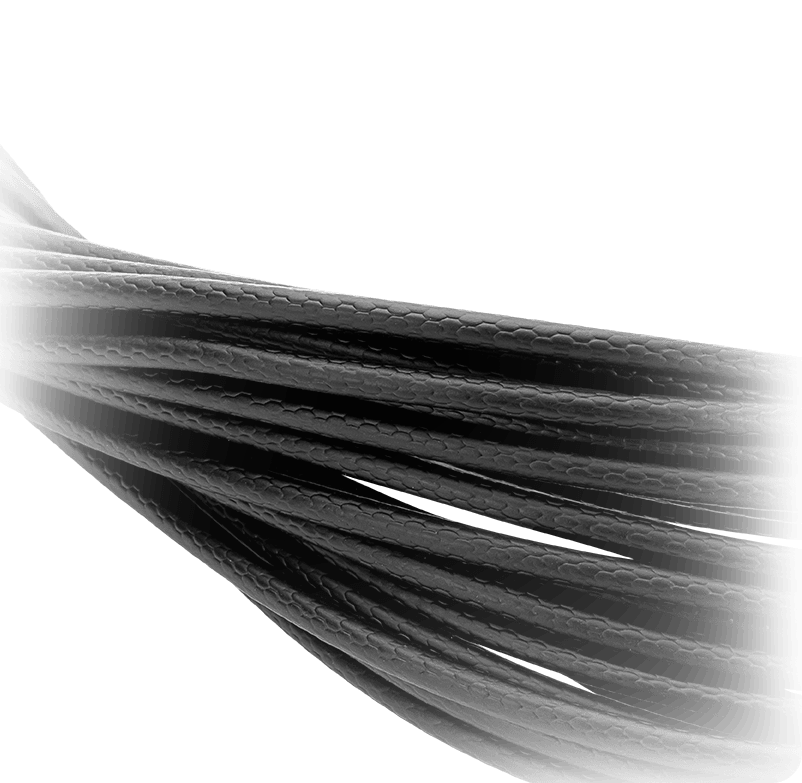

Embossed Jacket Modular Cable
Using premium materials to enhance the cable's flexibility and bendability, the sleek matt black design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.

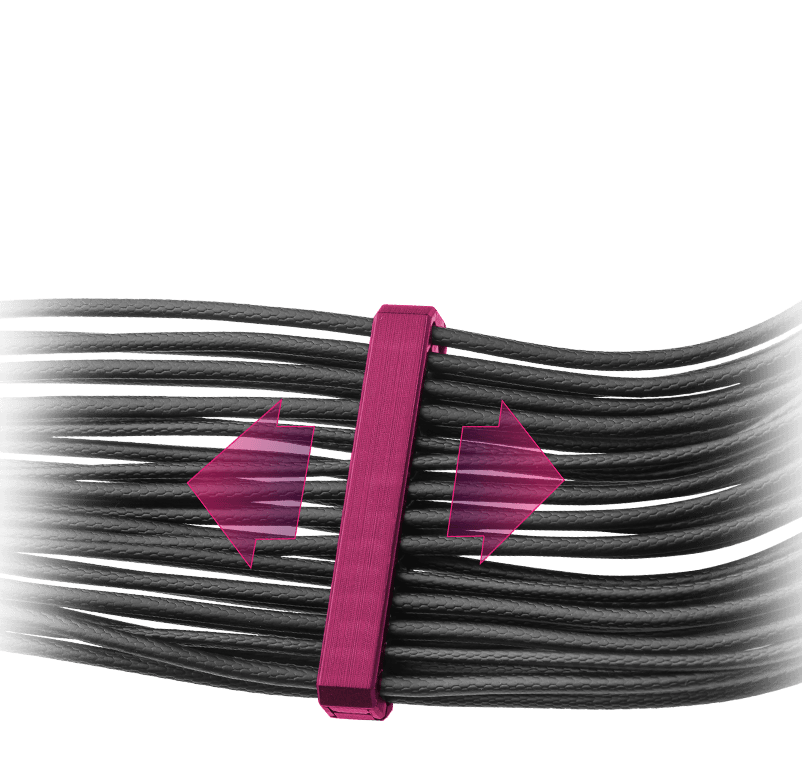

CABLE ORGANIZER
Pre-install the cable organizer to make organizing cables more convenient. Additionally, the cable organizer's position can be adjusted freely as needed.
SOFTWARE
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.

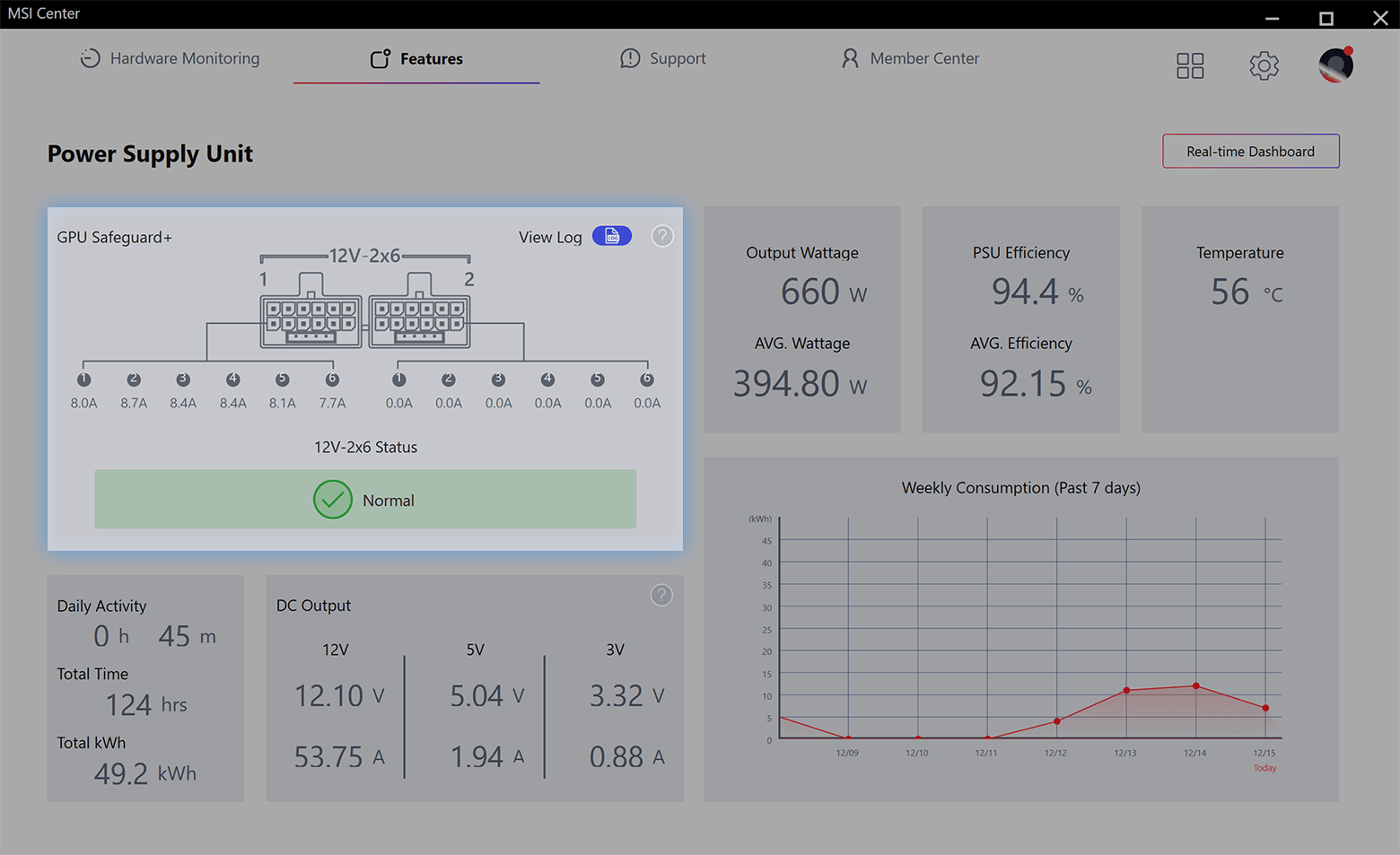

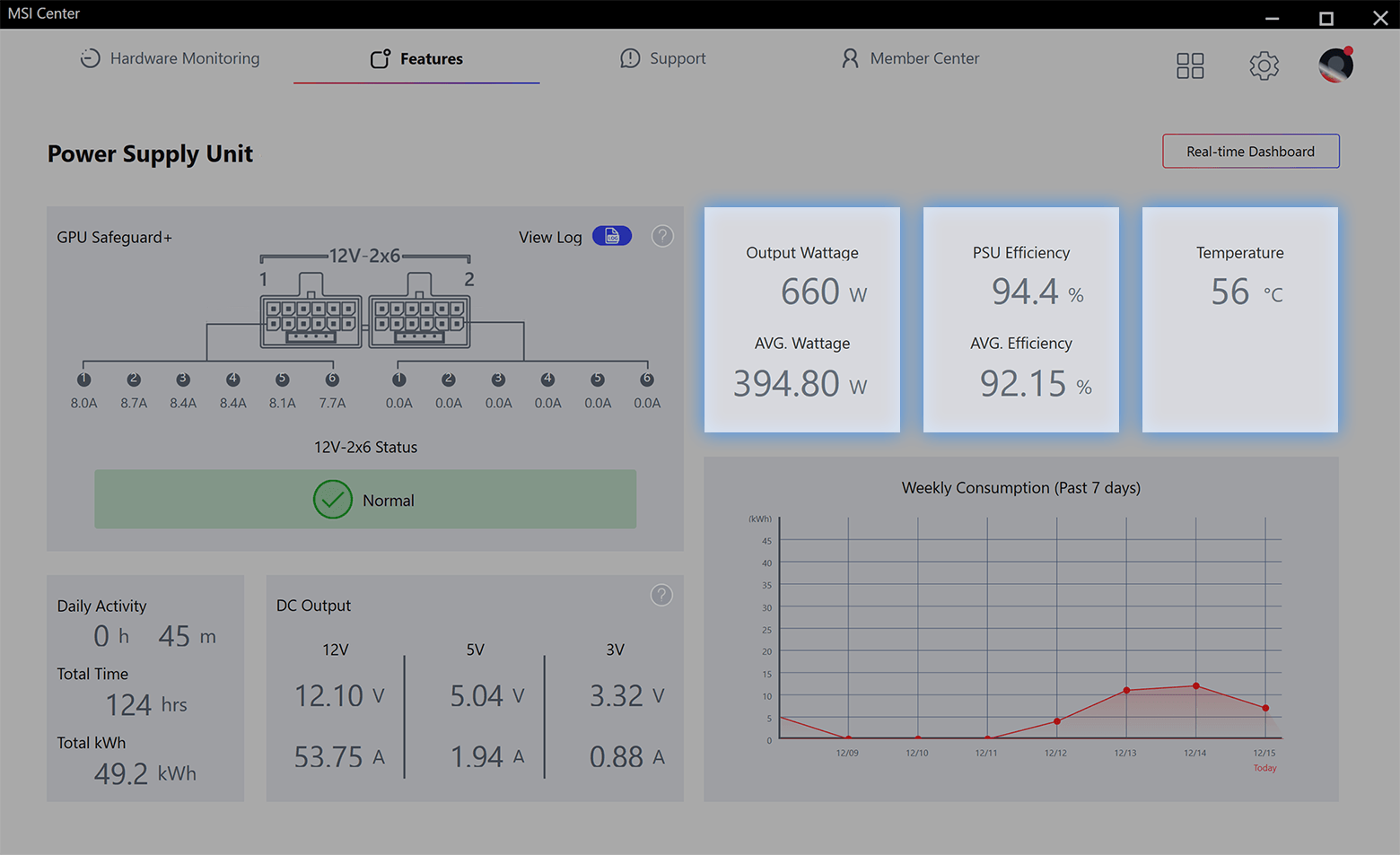

Power Supply Overall
Detects the real-time current for each pin of the dual 12V-2x6 connectors.
Monitors the real-time output wattage, efficiency, and PSU’s temperature status.
Displays daily and weekly power consumption.

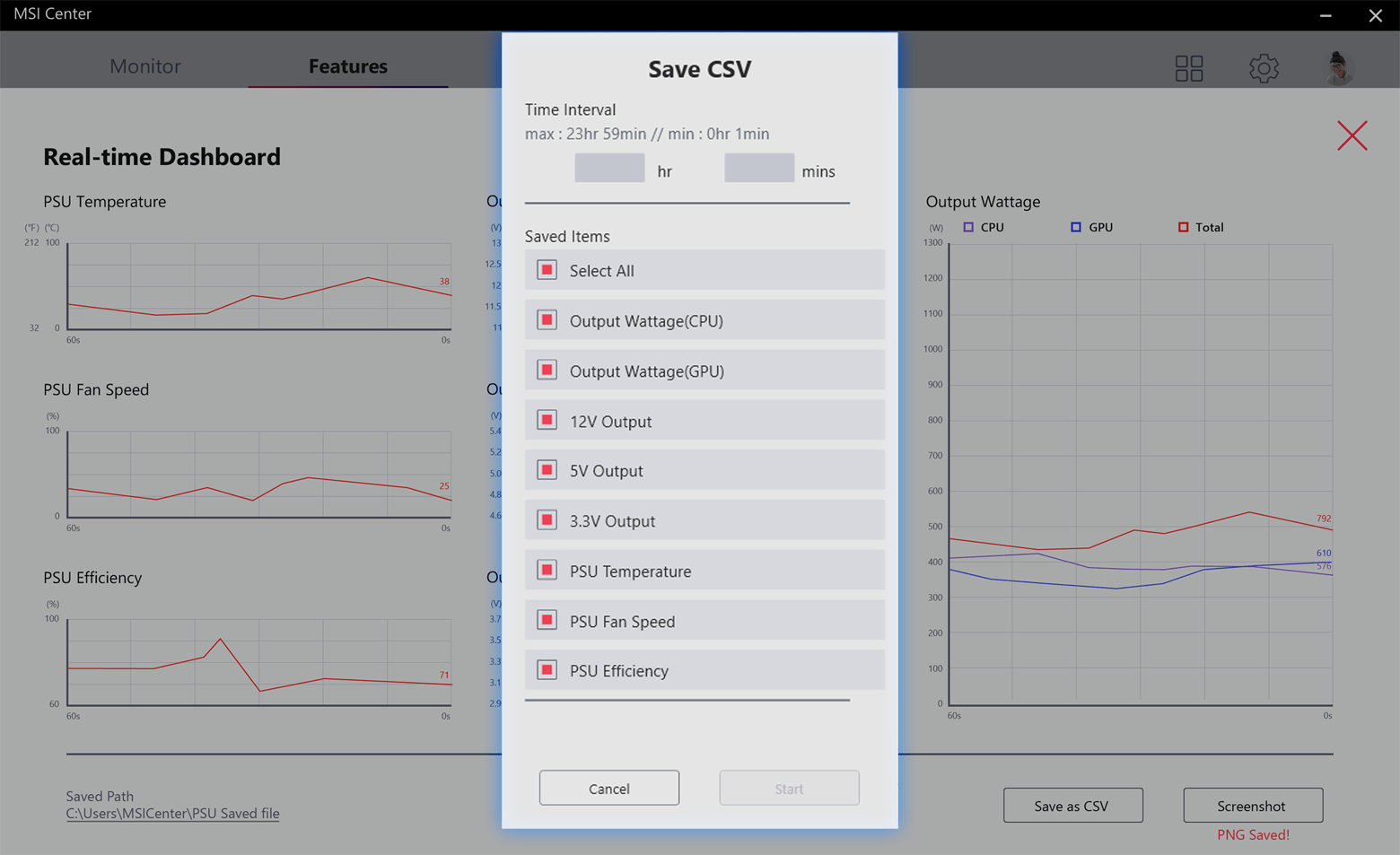

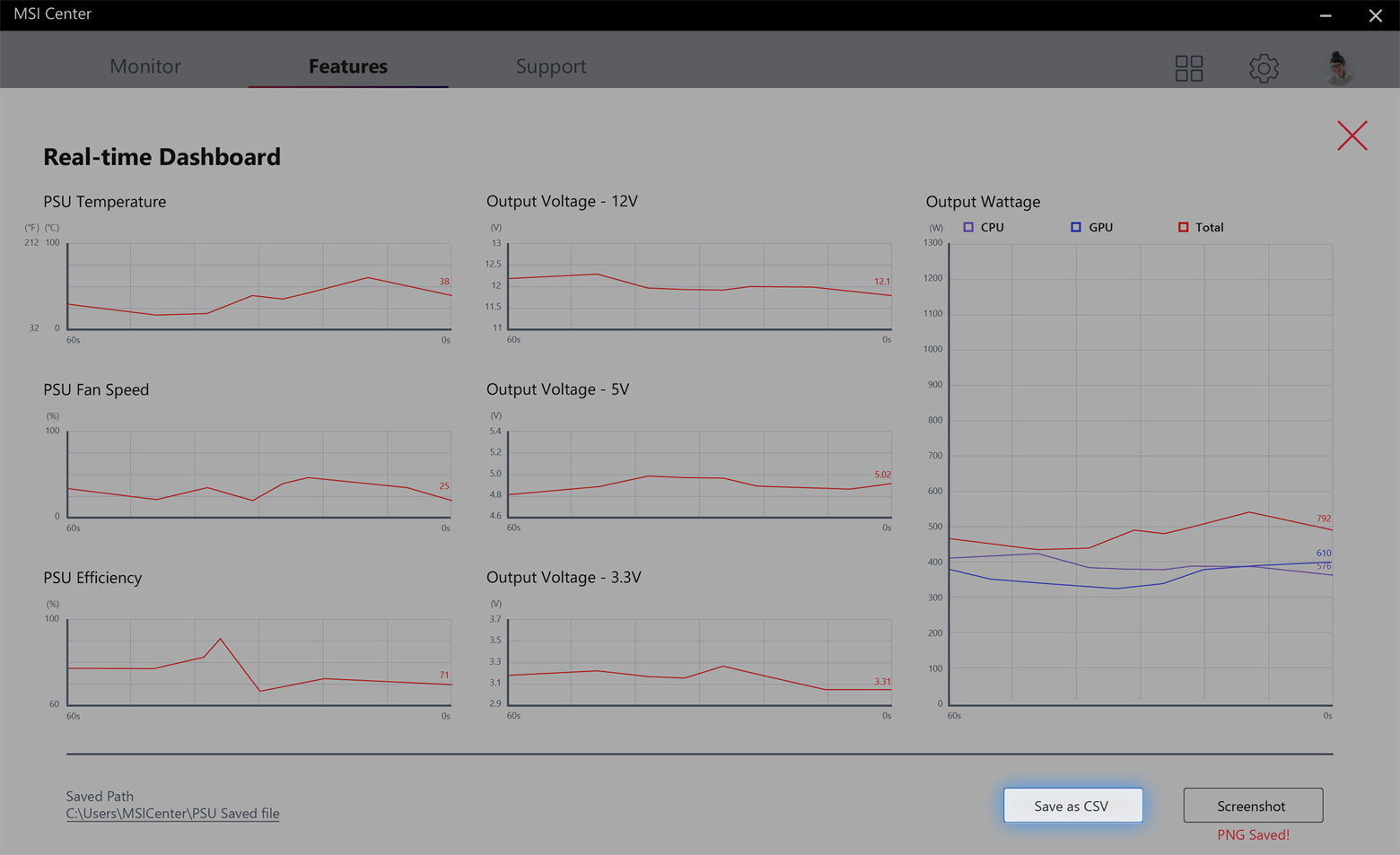

Real-time Dashboard
Supports exporting selected real-time data for further analysis.
Monitoring data, such as output voltage, temperature, efficiency, and fan speed.

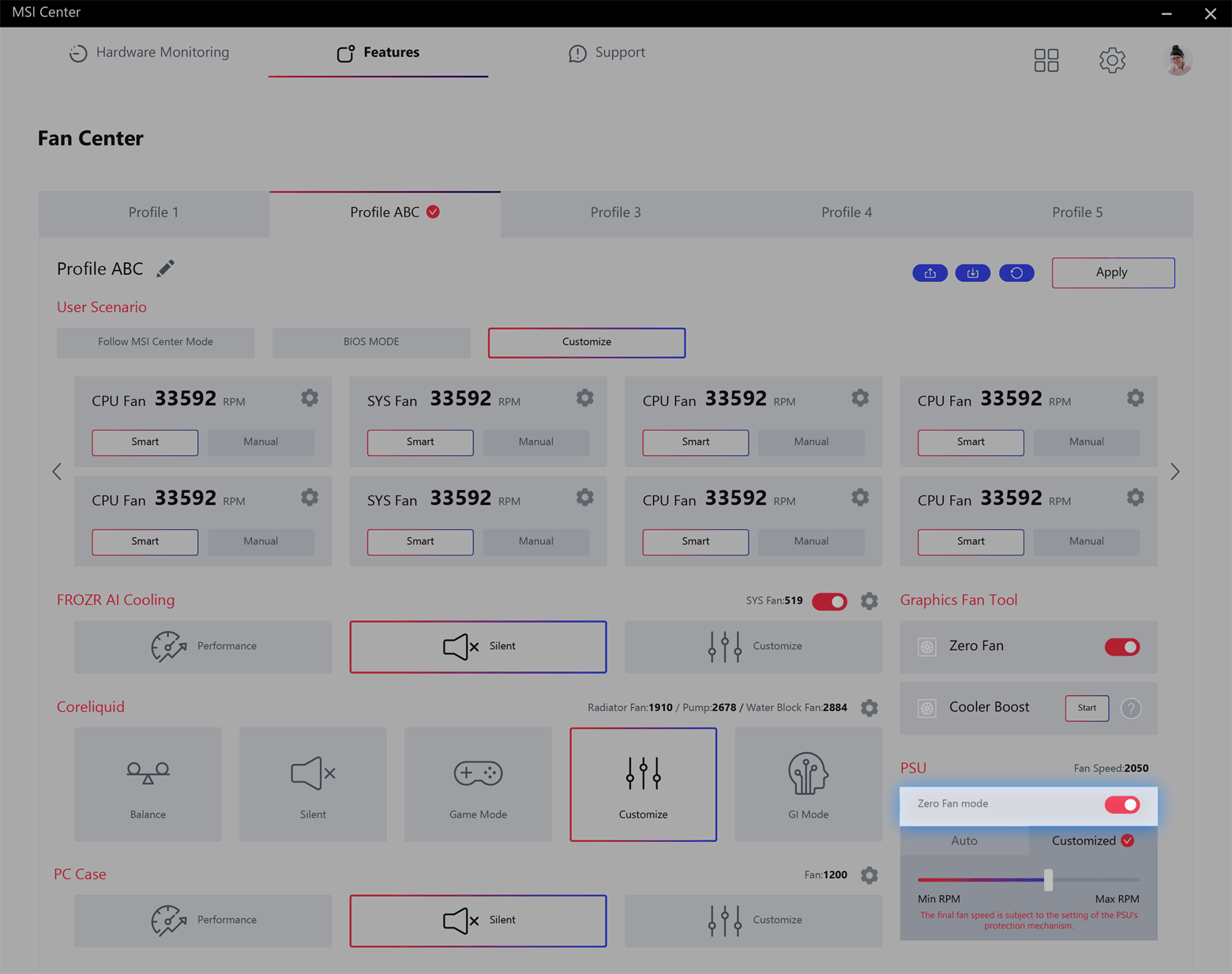

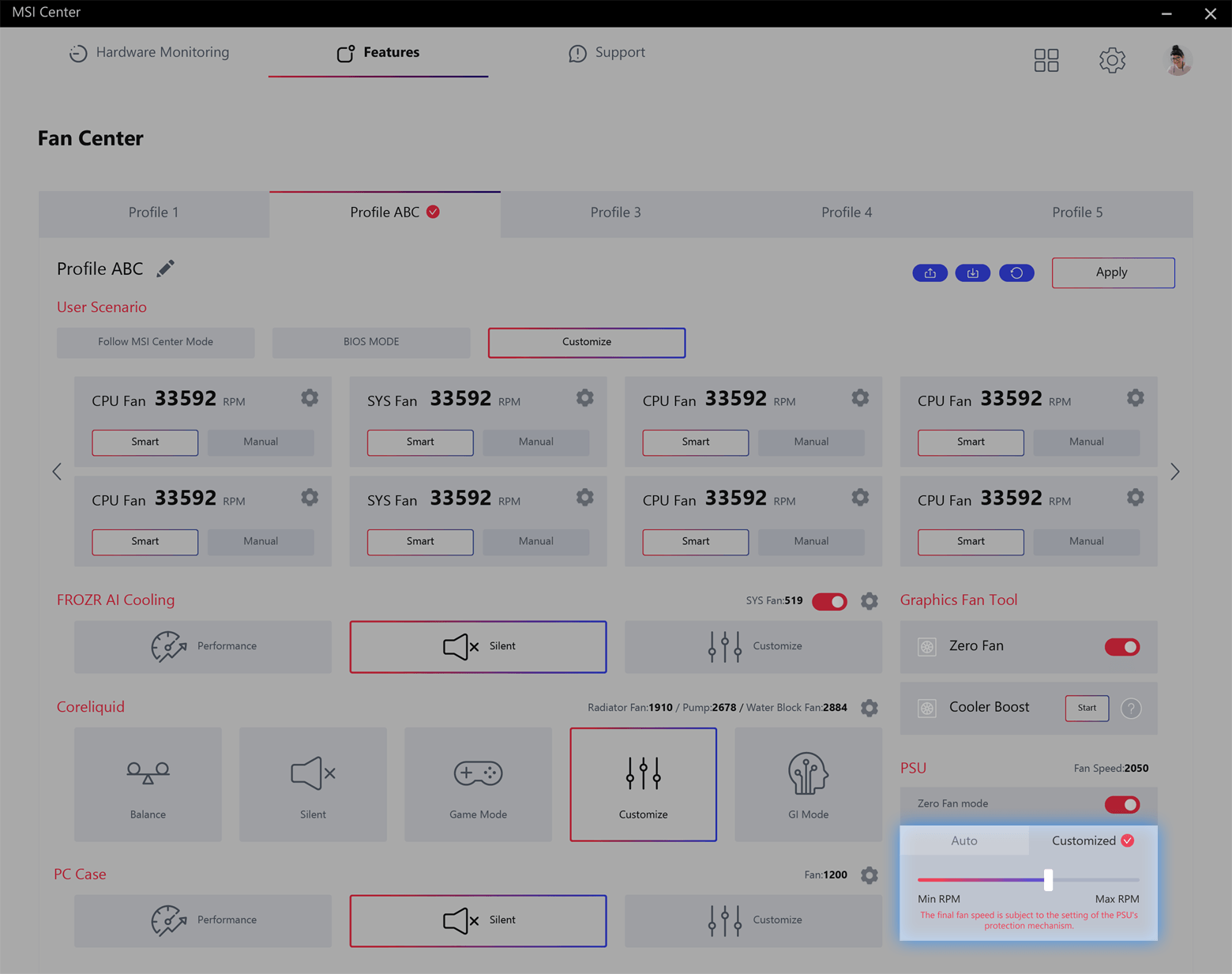

Cooling Wizard
Supports switching the Zero Fan mode on or off for silent operation under low loads.
Allows users to customize the fan RPM to balance cooling performance and noise levels.

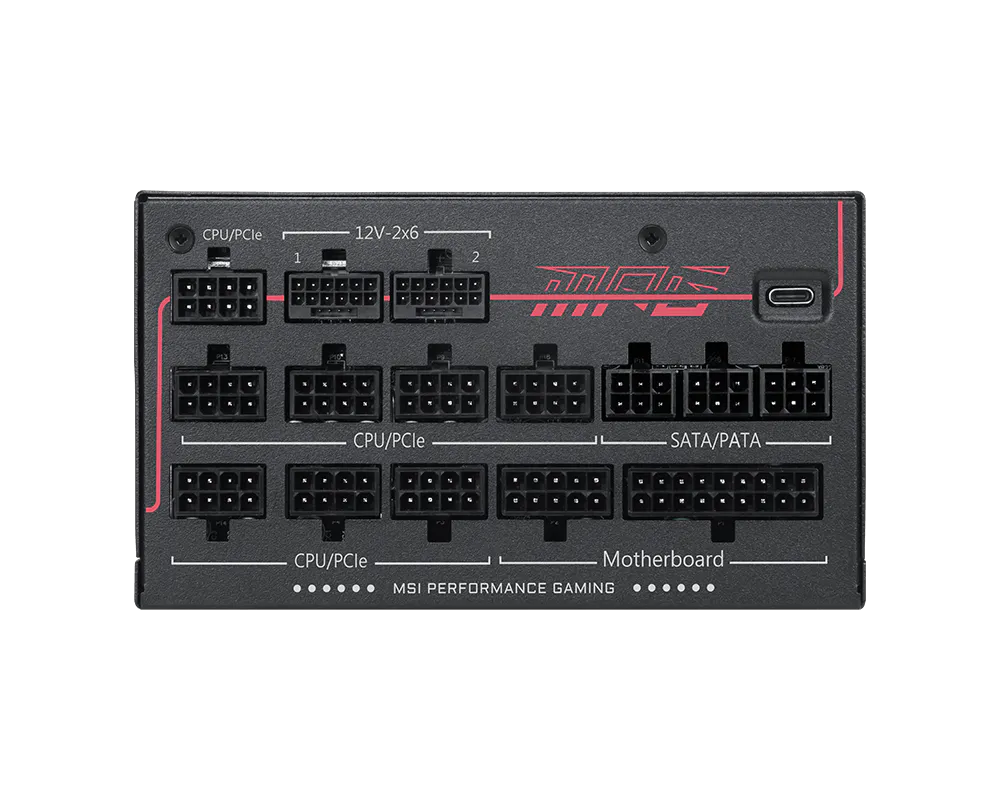

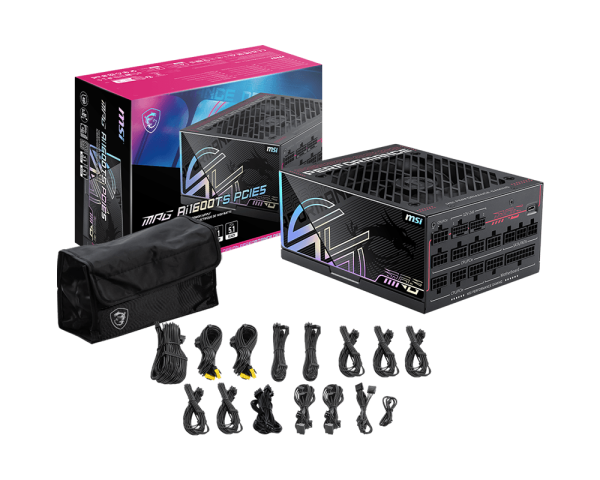

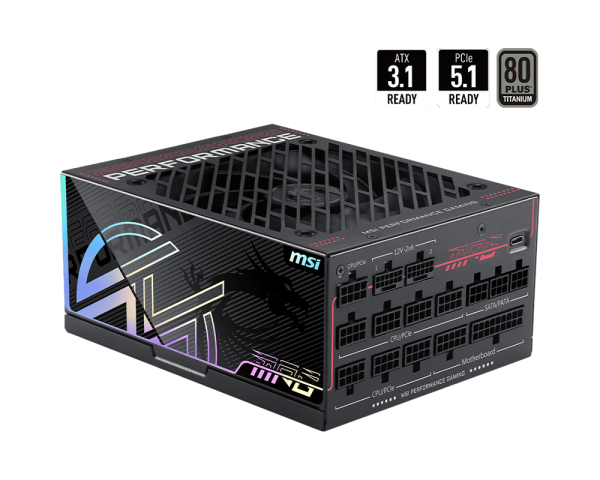

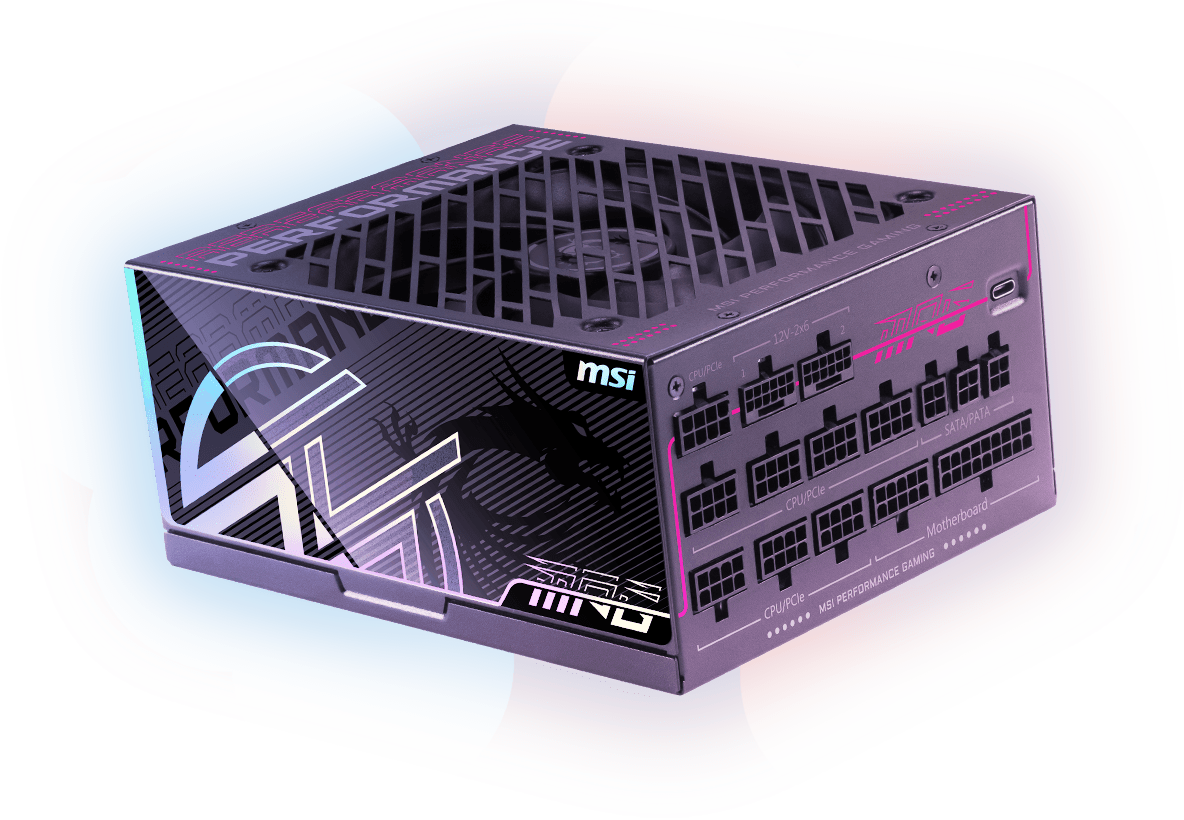

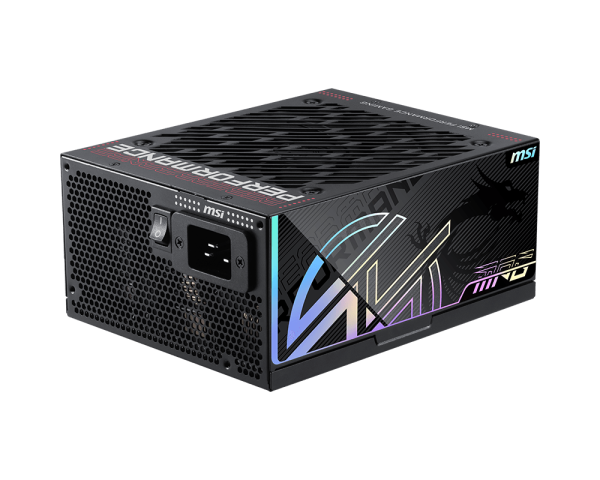

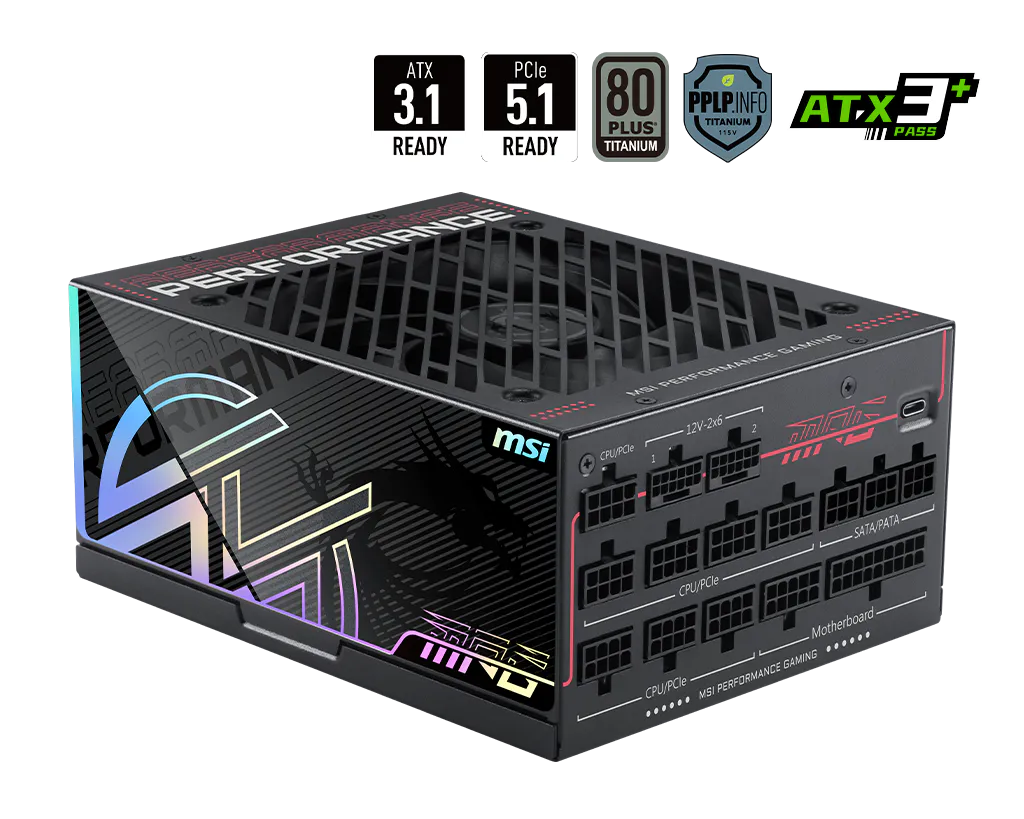

MPG Ai1600TS PCIE5
- Premium protection, GPU Safeguard+ and Fan Safeguard
- Server-grade materials, SiC interleaved PFC MOSFET
- Supports Nvidia® GeForce RTX™ 50 series graphics cards
- 2 x native 12V-2x6 connectors
- Dual-color 12V-2x6 cable
- 80 PLUS Titanium certified
- Optimized the sound level
- 100% all Server-grade 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
