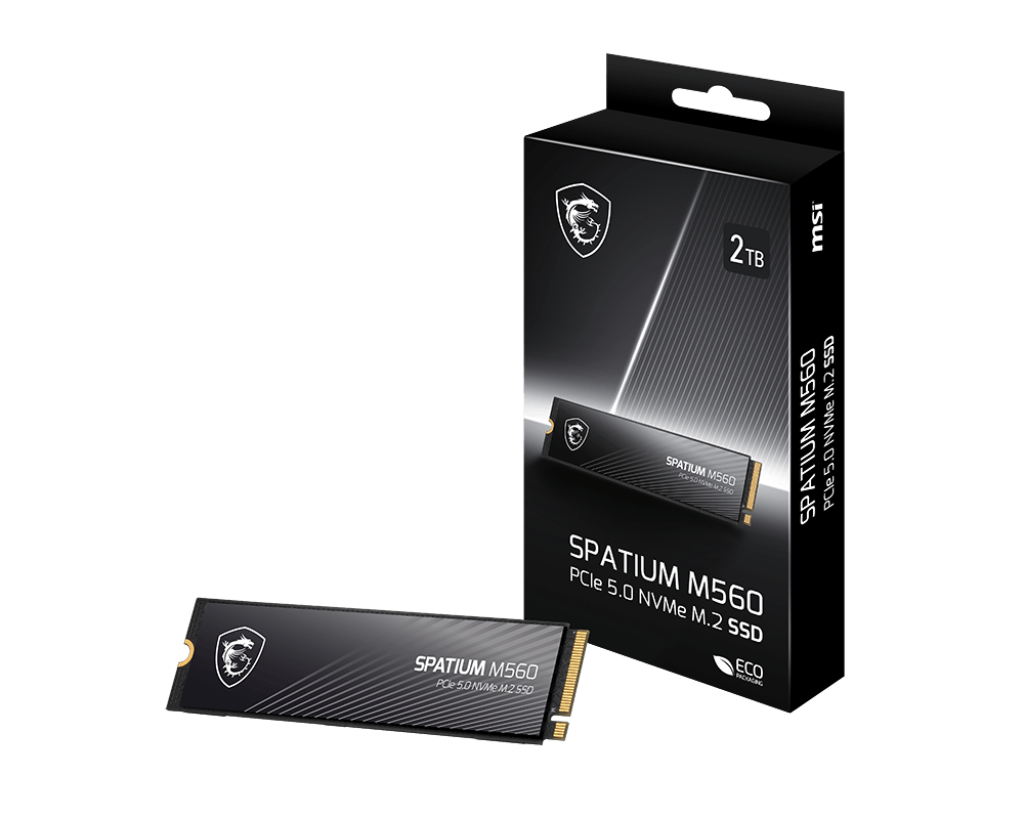

SPATIUM M560 PCIe 5.0 NVMe M.2
| Differences are marked in red | SPATIUM M560 PCIe 5.0 NVMe M.2 1TB | SPATIUM M560 PCIe 5.0 NVMe M.2 2TB |
|---|---|---|
| Model Name | SPATIUM M560 PCIe 5.0 NVMe M.2 | SPATIUM M560 PCIe 5.0 NVMe M.2 |
| Capacity | 1TB | 2TB |
| Controller | PHISON E31T | PHISON E31T |
| Flash Memory | 3D NAND | 3D NAND |
| Form Factor | M.2 2280 | M.2 2280 |
| Interface | PCIe Gen5x4, NVMe 2.0 | PCIe Gen5x4, NVMe 2.0 |
| Compatibility | PCIe Gen5 /PCIe Gen4 / Gen3 / Gen2 / Gen1 | PCIe Gen5 /PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| Sequential Read up to (MB/s) | 10,200 | 10,300 |
| Sequential Write up to (MB/s) | 8,400 | 8,700 |
| Random Read 4KB up to (IOPS) | 1,300,000 | 1,300,000 |
| Random Write 4KB up to (IOPS) | 1,400,000 | 1,400,000 |
| Maximum Operating Power (W) | 5.9 | 5.9 |
| Idle Power PS3 (mW) | 50 | 50 |
| Low Power L1.2 (mW) | 3.5 | 3.5 |
| Operating Temperatures | 0°C – 70°C | 0°C – 70°C |
| Storage Temperatures | 40°C – 85°C | 40°C – 85°C |
| Terabytes Written (TBW) | 600 | 1200 |
| Mean Time Between Failure (MTBF) | Up to 1,500,000 Hours | Up to 1,500,000 Hours |
| Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. |
| Advanced Features | TRIM (Performance Optimization, OS support required) <br /> SMART (Self-Monitoring, Analysis and Reporting Technology) <br /> LDPC (Low Density Parity Check) ECC Algorithm <br /> End to End Data Path Protection <br /> APST (Autonomous Power State Transition) | TRIM (Performance Optimization, OS support required) <br /> SMART (Self-Monitoring, Analysis and Reporting Technology) <br /> LDPC (Low Density Parity Check) ECC Algorithm <br /> End to End Data Path Protection <br /> APST (Autonomous Power State Transition) |
