Why You Should Upgrade PS5 Storage with an M.2 SSD

The PlayStation 5 is an entertainment center that contains games, apps, and many other media content. When game developers focus on higher quality details for screenplay and more complicated storylines, the size of game files are growing larger and larger to compensate for a more immersive experience. That means that a larger storage device boasting high-performing speeds will play a critical role to shortening the long wait times for moving files or loading games.

PCIe 4.0 NVMe M.2 SSDs are the solution that can enlarge your storage and match the performance requirements of the PS5.

What You Should Know to Select an Optimal M.2 SSD

To keep up with the requirements of the PS5 and ensure a smooth gaming experience, PlayStation requires a PCIe gen4x4 NVMe M.2 SSD running 5,500 MB/s or faster for the sequential read speed with a capacity range from 250GB up to 4TB. Keeping thermal throttling issues in mind, a cooling solution is recommended to attach onto the M.2 SSD to dissipate heat efficiently while the SSD performs at a high level. An optimal thermal solution can prevent performance loss and damages from overheating and even prolong the longevity of the drive.

(Learn more details about the requirements of M.2 SSD to upgrade your PS5: Sony PlayStation).

Play Big on Your PS5

Play Big on Your PS5

The SPATIUM M480 PLAY exceeds PlayStation’s performance requirements and is ready to expand your game library up to a massive 4TB of storage for all gaming needs. With a slim design that will fit the expansion slot, the drive is easy to install. Sporting a sleek black dual-finish aluminum heatsink, the SPATIUM M480 will keep cool under heavy loads on any platform while sustaining maximum performance.

How to Install SPATIUM M480 PLAY to Your PS5?

The SPATIUM M480 PLAY is ready to be installed into a PS5 out-of-the-box. One word of caution before we begin: we do not recommend disassembling the metal heatsink from the SSD as that may damage the product.

How to Install SPATIUM M480 PLAY to Your PS5?

● Power off your PS5 after ensuring your PS5 system is updated to the latest version.
(Follow the steps: Settings ➝ System Software ➝ System Software Update and Settings ➝ Update System Software, and press Update Using Internet)
● Remove all cables and devices connected with the console.
● Move your PS5 to a flat surface in a well-lit space and a flat surface for installation.
● Get a #1 Phillips or cross-head screwdriver.
● Remove the caution sticker before installing the SPATIUM M480 PLAY.

How to Install SPATIUM M480 PLAY to Your PS5?

Step 1. Lay down the PlayStation 5 with the logo facing down. Lift the panel from the top and push towards the bottom of the console to slide it off. (The M.2 Expansion Slot is located under the panel that does not have the PlayStation Logo.)

Optimal M.2 SSD
Optimal M.2 SSD

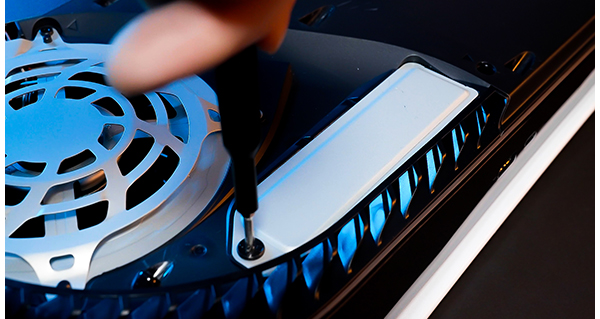

Step 2. Remove the single screw holding the expansion slot cover in place. You will notice that there are the numbers 30, 42, 60, 80, and 110 listed on the M.2 slot. Those numbers indicate the length of the drive.

Optimal M.2 SSD
Optimal M.2 SSD

Step 3. Remove the screw that is holding the spacer into place. For our use, we will want to make sure that the spacer is slotted in the space marked 80, as the M480 PLAY is a 2280 length drive.

Optimal M.2 SSD
Optimal M.2 SSD

Step 4. Slot the SPATIUM M480 PLAY with the heatsink facing up into the expansion connector by starting from a diagonally upward angle.

Optimal M.2 SSD
Optimal M.2 SSD

Step 5. Secure the SSD and spacer using the screw that was removed previously.

Optimal M.2 SSD

Step 6. Attach the expansion slot cover back into place and secure the screw that was removed previously. (The SPATIUM M480 PLAY perfectly fits under the height required by Sony)

Optimal M.2 SSD
Optimal M.2 SSD

Step 7. Slide the panel back into place from the bottom to complete the installation process.

Optimal M.2 SSD

When initially restarting your PS5 after reconnecting the cables and devices, you will be prompted to check and format your newly installed SPATIUM M480 PLAY. Make sure to follow the instructions on the screen to confirm your console is reading the drive correctly.

Optimal M.2 SSD
Optimal M.2 SSD

When the SSD is formatted, change where your games are going to be installed.
(Go to Settings ➝ Storage ➝ Installation Location and select M.2 SSD Storage as the default drive.)

Optimal M.2 SSD

The SPATIUM M480 PLAY is all set for you to start playing. Happy Gaming!

SPATIUM M480 PLAY – Expanding The Game Library on PlayStation 5.

Optimal M.2 SSD

SPATIUM M480 PLAY is the optimal storage device for console gaming in the SPATIUM lineup with four storage capacities – 500GB, 1TB, 2TB, and 4TB. This brings next-level storage performance to players for the PlayStation 5, content creators, and PC gamers. Expanding the storage device on the PS5 is a simple upgrade that allows for lightning-fast save and load times for large game files.
